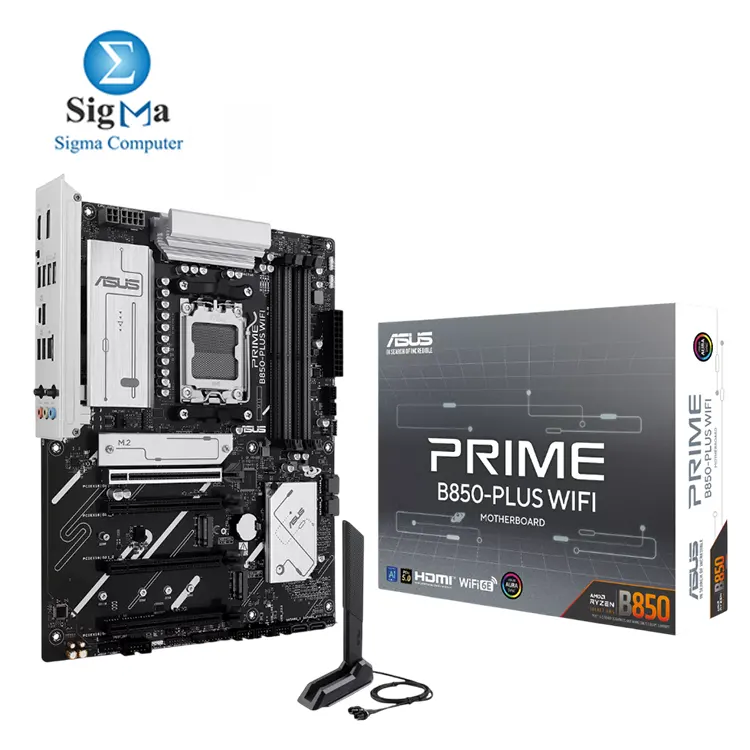

ASUS AMD PRIME B850-PLUS WIFI

Model:

AMD B850 Chipset

CPU Support:

AMD Ryzen™ 9000 / 8000 / 7000 Series Socket AM5

Chipset:

4 x DIMM slots (DDR5)

DIMM Slots:

256GB DDR5 Supports up to 8000+ MT/s (OC) Dual Channel ECC & Non-ECC Un-buffered AMD EXPO™ ASUS AEMP

Max Memory support:

256GB DDR5 Supports up to 8000+ MT/s (OC) Dual Channel ECC & Non-ECC Un-buffered AMD EXPO™ ASUS AEMP

PCI-E Slots:

1 x PCIe 5.0 x16 (Ryzen 9000 / 7000) 1 x PCIe 4.0 x16 (Ryzen 8000) 1 x PCIe 4.0 x16 (x4 mode – Chipset) 2 x PCIe 3.0 x16 (x1 mode)

M.2 Slots:

3 x M.2 (Key M) M.2_1: PCIe 5.0 x4 (Ryzen 9000 / 7000) M.2_2: PCIe 4.0 x4 M.2_3: PCIe 4.0 x2

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

3 x Addressable RGB Gen 2 headers

Fan Headers:

1 x CPU Fan 1 x CPU OPT Fan 1 x AIO Pump 4 x Chassis Fan

Front Type C Headers:

1 x USB 5Gbps Type-C header

Front USB 3 Headers:

1 x USB 5Gbps header

USB 2.0 Headers:

3 headers

Flash BIOS Buttons:

Yes (BIOS FlashBack™)

Clear COMS Buttons:

Clear CMOS Header

Onboard Graphics Outputs:

1 x DisplayPort 1 x HDMI

PS/2 Combo Ports:

Rear: 4 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 2 x USB 2.0 Type-A

USB Ports:

Rear: 4 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 2 x USB 2.0 Type-A

USB Type C Ports:

1 x Rear USB 10Gbps Type-C 1 x Front USB 5Gbps Type-C (Header)

Ethernet LAN Port:

1 x Realtek 2.5Gb Ethernet

Bluetoooht & Wireless:

Wi-Fi 6E (2x2, 2.4 / 5 / 6GHz) Bluetooth® 5.3

Audio Jacks:

3 x Audio jacks (7.1 HD Audio – Realtek)

Optical:

S/PDIF Out header (internal)

Operating System:

Windows® 11 Windows® 10 64-bit

Form Factor:

ATX 12 x 9.6 inch (30.5 x 24.4 cm)
