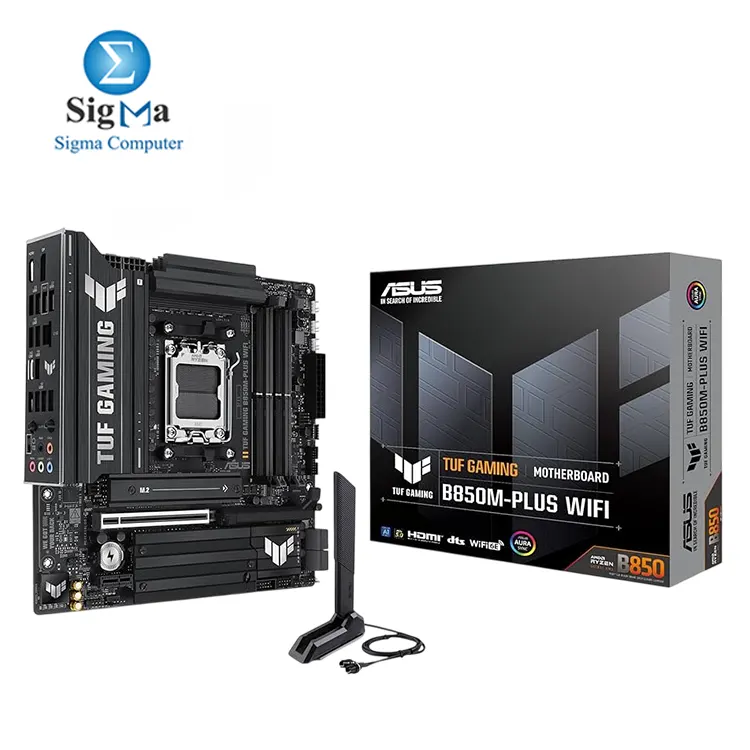

ASUS AMD TUF GAMING B850M-PLUS WIFI

Model:

TUF GAMING B850M-PLUS WIFI

CPU Support:

AMD Socket AM5 for Ryzen 9000, 8000, 7000 Series Desktop Processors

Chipset:

AMD B850 Chipset

DIMM Slots:

4 x DIMM slots

Max Memory support:

256GB, DDR5

PCI-E Slots:

1 x PCIe 5.0 x16 (Ryzen 9000 & 7000, x16 mode) 1 x PCIe 4.0 x16 (Ryzen 8000, x8/x4 mode) 1 x PCIe 4.0 x1 (B850 Chipset)

M.2 Slots:

3 x M.2 slots (Key M)

SATA III:

4 x SATA 6Gb/s ports

ARGB Headers:

3 x Addressable Gen 2 headers

Fan Headers:

1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 3 x Chassis Fan headers

Front Type C Headers:

1 x USB 10Gbps connector (supports USB Type-C)

Front USB 3 Headers:

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

USB 2.0 Headers:

2 x headers support 3 additional USB 2.0 ports

Flash BIOS Buttons:

1 x BIOS FlashBack™ button

Clear COMS Buttons:

1 x Clear CMOS header

Onboard Graphics Outputs:

1 x DisplayPort, 1 x HDMI™ port

USB Ports:

Rear: 12 ports (1 x USB 20Gbps Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A)

USB Type C Ports:

1 x Rear, 1 x Front

Ethernet LAN Port:

1 x Realtek 2.5Gb Ethernet

Bluetoooht & Wireless:

Wi-Fi 6E (2x2), Bluetooth® v5.3

Audio Jacks:

5 x Audio jacks (Realtek ALC1220P 7.1 HD Audio)

Operating System:

Windows 11, Windows 10 64-bit

Form Factor:

micro-ATX, 24.4 x 24.4 cm
