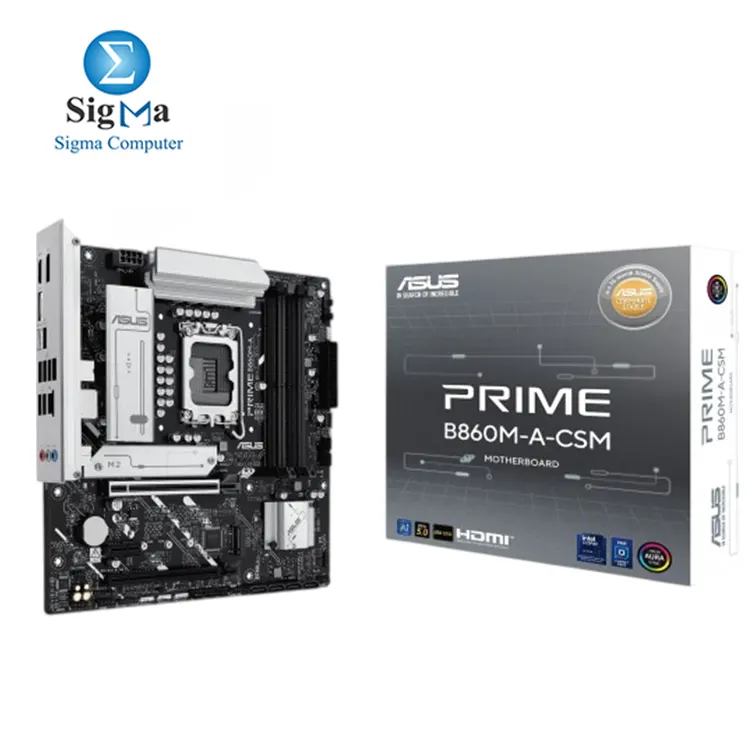

ASUS INTEL PRIME B860M-A-CSM

Model:

PRIME B860M-A-CSM

CPU Support:

Intel® Core™ Ultra Processors (Series 2) Socket LGA1851 Supports Intel Turbo Boost 2.0 & Turbo Boost Max 3.0

Chipset:

Intel B860 Chipset

DIMM Slots:

4 x DIMM

Max Memory support:

256GB DDR5 Supports up to 8666+ MT/s (OC) Dual Channel Supports Intel XMP & ASUS AEMP III Non-ECC, Un-buffered, CUDIMM

PCI-E Slots:

1 x PCIe 5.0 x16 (CPU) 1 x PCIe 4.0 x16 (x4 mode – Chipset) 1 x PCIe 4.0 x1

M.2 Slots:

2 x M.2 M.2_1 (PCIe 5.0 x4) – 2242/2260/2280 M.2_2 (PCIe 4.0 x4) – 2242/2260/2280

SATA III:

4 x SATA 6Gb/s Supports Intel Rapid Storage Technology (RAID 0/1/5/10)

ARGB Headers:

3 x Addressable Gen 2 headers

RGB Headers:

1 x Aura RGB header

Fan Headers:

1 x CPU Fan 1 x CPU OPT Fan 1 x AIO Pump 3 x Chassis Fan

Front Type C Headers:

1 x USB 10Gbps Type-C connector

Front USB 3 Headers:

1 x USB 5Gbps header

USB 2.0 Headers:

1 x USB 2.0 header

Onboard Graphics Outputs:

2 x DisplayPort 1 x HDMI USB-C DisplayPort Alt-Mode

USB Ports:

Rear (8 Ports): 1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 Type-A

USB Type C Ports:

1 x Rear USB-C (20Gbps, DP Alt-Mode) 1 x Front USB-C (10Gbps)

Ethernet LAN Port:

1 x Realtek 2.5Gb Ethernet ASUS LANGuard

Bluetoooht & Wireless:

NO

Audio Jacks:

3 x Audio Jacks Realtek 7.1 HD Audio Supports 24-bit / 192kHz

Optical:

YES

Operating System:

Windows 11 (22H2 & later) Windows 10 64-bit (21H2 & later)

Form Factor:

Micro-ATX 9.6" x 9.6" (24.4 cm x 24.4 cm)
