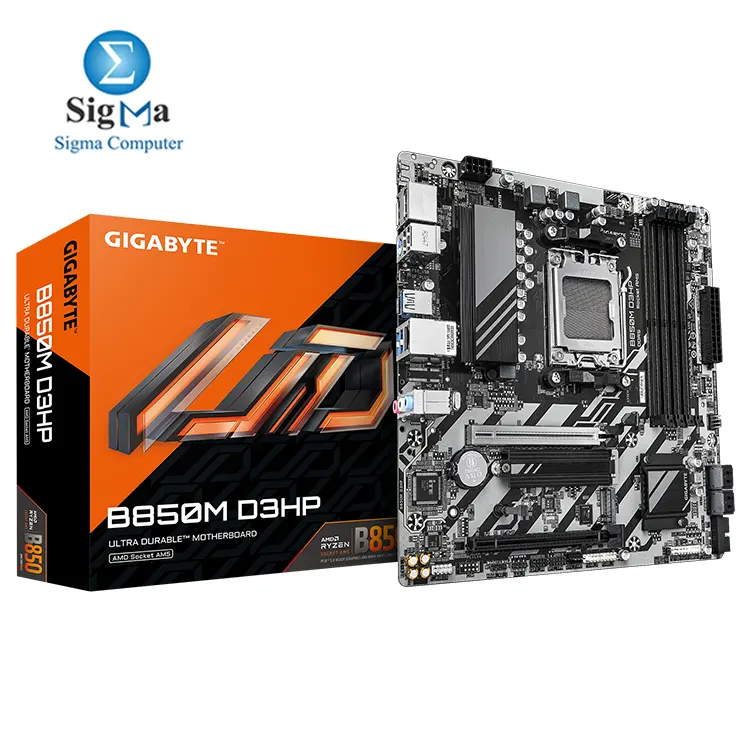

Gigabyte B850M D3HP

Model:

Gigabyte B850M D3HP

CPU Support:

AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (Socket AM5)

Chipset:

AMD B850

DIMM Slots:

4 x DDR5 DIMM sockets

Max Memory support:

Up to 256GB

PCI-E Slots:

1 x PCIe 5.0 x16, 1 x PCIe 3.0 x4

M.2 Slots:

2 x M.2 (1 x PCIe 5.0 x4/x2, 1 x PCIe 4.0 x4/x2)

SATA III:

4 x SATA 6Gb/s ports

ARGB Headers:

2 x Addressable RGB Gen2 headers

RGB Headers:

1 x RGB LED header

Fan Headers:

4 x (CPU Fan, CPU/WP, System Fan, System/WP)

Front Type C Headers:

1 x USB Type-C (USB 3.2 Gen1)

Front USB 3 Headers:

1 x USB 3.2 Gen1 header

USB 2.0 Headers:

2 x USB 2.0 headers (4 ports)

Flash BIOS Buttons:

Q-Flash Plus button

Clear COMS Buttons:

1 x Clear CMOS jumper

Onboard Graphics Outputs:

1 x HDMI 2.1, 2 x DisplayPort 1.4

PS/2 Combo Ports:

1 x PS/2 keyboard/mouse port

USB Ports:

3 x USB 3.2 Gen1, 2 x USB 2.0

USB Type C Ports:

1 x USB 3.2 Gen1 Type-C

Ethernet LAN Port:

1 x Realtek GbE LAN (1 Gbps)

Audio Jacks:

3 x Audio jacks (Realtek® Audio CODEC, supports 2/4/5.1/7.1-channel)

Operating System:

Windows 11 64-bit, Windows 10 64-bit

Form Factor:

Micro ATX (24.4cm x 24.4cm)
