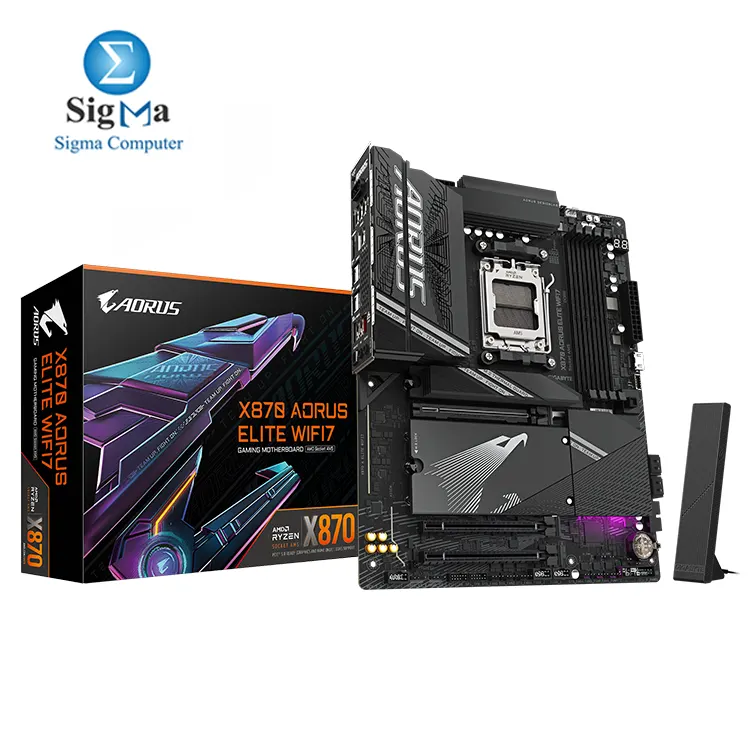

GIGABYTE X870 AORUS ELITE WIFI7

Model:

X870 AORUS ELITE WIFI7

CPU Support:

AMD Ryzen 9000 / 8000 / 7000 Series (AM5)

Chipset:

AMD X870

DIMM Slots:

4 x DDR5

Max Memory support:

Up to 256GB (DDR5 8200MHz OC)

PCI-E Slots:

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x2

M.2 Slots:

4 x M.2 (2 x PCIe 5.0, 1 x PCIe 4.0)

SATA III:

4 Ports

ARGB Headers:

3 x Addressable Gen2

RGB Headers:

1 x RGB Header

Fan Headers:

6 x System/CPU/Pump Headers

Front Type C Headers:

1 x USB 3.2 Gen 2x2

Front USB 3 Headers:

1 x USB 3.2 Gen 1

USB 2.0 Headers:

2

Flash BIOS Buttons:

1 x Q-Flash Plus

Clear COMS Buttons:

1 x Jumper

Onboard Graphics Outputs:

2 x USB4 Type-C (DP), 1 x HDMI

USB Ports:

4 x USB 3.2 Gen1, 4 x USB 2.0, 2 x USB 3.2 Gen2 Type-A

USB Type C Ports:

2 x USB4 (rear), 1 x internal USB 3.2 Gen 2x2

Ethernet LAN Port:

Realtek 2.5GbE

Bluetoooht & Wireless:

WiFi 7 (6GHz) + Bluetooth 5.4

Audio Jacks:

2 x Audio Jacks

Optical:

1 x S/PDIF Out

Operating System:

Windows 11 64-bit

Form Factor:

ATX
