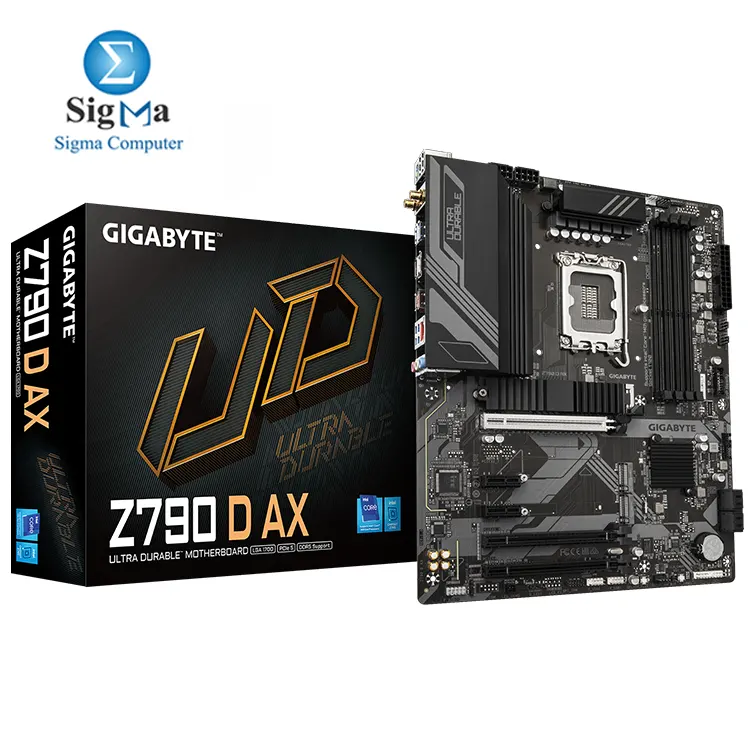

Gigabyte Z790 D AX (rev. 1.0)

Model:

Gigabyte Z790 D AX (rev. 1.0)

CPU Support:

Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, and Celeron® processors (LGA1700 socket)

Chipset:

Intel® Z790 Express Chipset

DIMM Slots:

4 × DDR5 DIMM slots

Max Memory support:

Up to 256GB DDR5 (64GB per DIMM)

PCI-E Slots:

1 × PCIe 5.0 x16 (from CPU) 1 × PCIe 4.0 x4 1 × PCIe 3.0 x1 2 × PCIe 3.0 x1

M.2 Slots:

3 × PCIe 4.0 x4/x2 M.2 (one supports SATA mode)

SATA III:

4 × SATA 6Gb/s ports

ARGB Headers:

2 × Addressable LED strip headers

Fan Headers:

6 total (including CPU, system, and pump headers)

Front Type C Headers:

1 × USB Type-C® (USB 3.2 Gen 1 support)

Front USB 3 Headers:

1 × USB 3.2 Gen 1 header (2 ports)

USB 2.0 Headers:

2 × USB 2.0/1.1 headers (4 ports)

Flash BIOS Buttons:

Yes (Q-Flash Plus Button)

Clear COMS Buttons:

Yes (Clear CMOS Jumper)

Onboard Graphics Outputs:

1 × HDMI 2.1, 1 × DisplayPort 1.2

PS/2 Combo Ports:

1 × PS/2 keyboard/mouse combo port

USB Ports:

Rear: 1 × USB 3.2 Gen 2 Type-A, 4 × USB 3.2 Gen 1, 2 × USB 2.0 Internal: 4 × USB 2.0 via header

USB Type C Ports:

1 × USB Type-C® (USB 3.2 Gen 2, rear panel)

Ethernet LAN Port:

Realtek 2.5GbE LAN (RJ-45)

Bluetoooht & Wireless:

Intel® Wi-Fi 6E AX211 + Bluetooth 5.3

Audio Jacks:

3 × 3.5mm jacks (configurable via software)

Optical:

1 × S/PDIF Out header

Operating System:

Windows 11 64-bit, Windows 10 64-bit

Form Factor:

ATX (30.5cm × 24.4cm)
