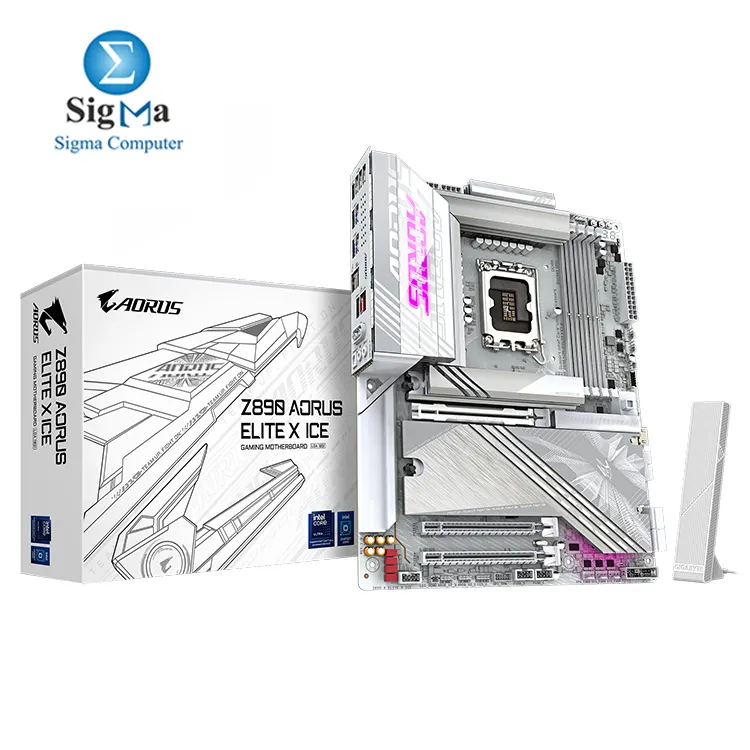

GIGABYTE Z890 AORUS ELITE X ICE

Model:

Z890 AORUS ELITE X ICE

CPU Support:

Intel® Core™ Ultra processors (Series 2) – LGA1851 socket

Chipset:

Intel® Z890 Express Chipset

DIMM Slots:

4 × DDR5 DIMM slots

Max Memory support:

Up to 256GB (64GB per DIMM), Dual Channel, DDR5 up to 9500(O.C) MHz

PCI-E Slots:

1 × PCIe 5.0 x16 (CPU) 1 × PCIe 4.0 x4 (Chipset) 1 × PCIe 4.0 x1 (Chipset)

M.2 Slots:

5 × M.2 (1 × PCIe 5.0 x4, 4 × PCIe 4.0 x4/x2, 1 × SATA + PCIe 4.0 x4/x2)

SATA III:

4 × SATA 6Gb/s ports

ARGB Headers:

3 × Addressable RGB Gen2 headers

RGB Headers:

1 × RGB LED header

Fan Headers:

7 × (1 CPU, 1 CPU/WP, 4 System, 2 System/WP)

Front Type C Headers:

1 × USB 3.2 Gen 2x2 Type-C header

Front USB 3 Headers:

1 × USB 3.2 Gen 1 header

USB 2.0 Headers:

2 × USB 2.0/1.1 headers (supports up to 4 ports)

Flash BIOS Buttons:

1 × Q-Flash Plus button

Clear COMS Buttons:

1 × Clear CMOS jumper

Onboard Graphics Outputs:

1 × Thunderbolt™ 4 Type-C (DP/USB4 video output) 1 × Front HDMI port (HDMI 1.4, 1920×1080@30Hz)

USB Ports:

4 × USB 2.0/1.1 4 × USB 3.2 Gen 1 2 × USB 3.2 Gen 2 Type-A

USB Type C Ports:

1 × Thunderbolt™ 4 Type-C (rear) 1 × USB 3.2 Gen 2x2 Type-C (front)

Ethernet LAN Port:

Realtek® 2.5GbE LAN

Bluetoooht & Wireless:

Wi-Fi 7 (MediaTek MT7925 / Realtek RTL8922AE) + Bluetooth 5.4

Audio Jacks:

2 × Audio jacks (Line Out, Mic In)

Optical:

1 × Optical S/PDIF Out

Operating System:

Windows 11 64-bit

Form Factor:

ATX (30.5cm × 24.4cm)
