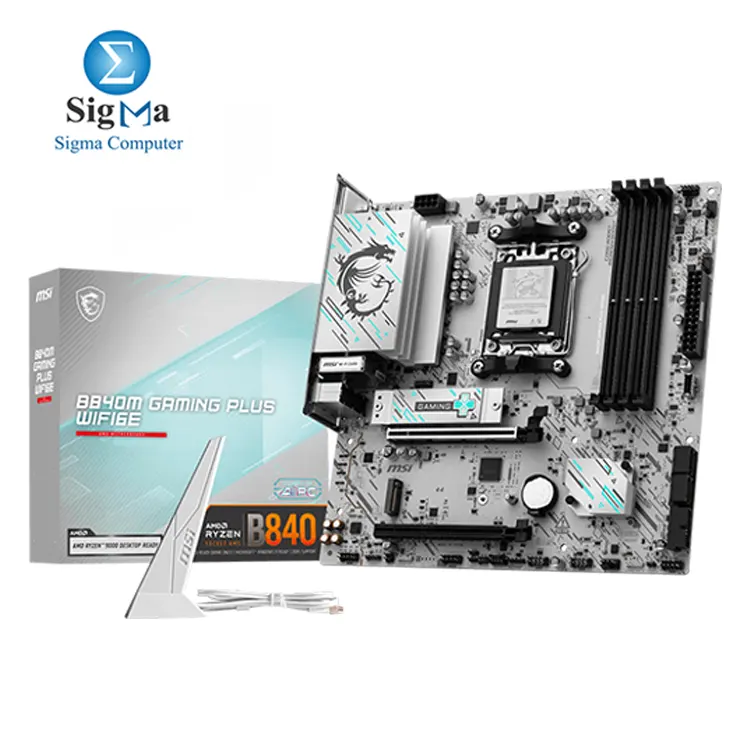

MSI B840M GAMING PLUS WIFI6E

Model:

MSI B840M GAMING PLUS WIFI6E

CPU Support:

AMD Ryzen 9000 / 8000 / 7000 Series (Socket AM5)

Chipset:

AMD B840

DIMM Slots:

4x DDR5 UDIMM

Max Memory support:

256GB, DDR5 8000+ (OC) / 5600–4800 JEDEC

PCI-E Slots:

2x PCIe (1x Gen4 x16, 1x Gen3 x4)

M.2 Slots:

2x PCIe 4.0 x4 (2280/2260)

SATA III:

4x SATA 6Gb/s

ARGB Headers:

3x ARGB (JARGB_V2)

RGB Headers:

1x RGB (JRGB)

Fan Headers:

1x CPU Fan, 1x Pump/Combo Fan, 3x System Fan

Front Type C Headers:

1x USB 5Gbps Type-C

Front USB 3 Headers:

2x USB 5Gbps Type-A

USB 2.0 Headers:

4x USB 2.0

Flash BIOS Buttons:

1x (Rear)

Clear COMS Buttons:

1x (Rear)

Onboard Graphics Outputs:

1x HDMI 2.1 (4K 60Hz, CPU dependent)

PS/2 Combo Ports:

None

USB Ports:

4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A

USB Type C Ports:

1x USB 10Gbps Type-C (Rear), 1x USB 5Gbps Type-C (Front)

Ethernet LAN Port:

Realtek 2.5G LAN (8125D)

Bluetoooht & Wireless:

Wi-Fi 6E, Bluetooth 5.3

Audio Jacks:

Realtek ALC897, 7.1 Channel HD Audio

Optical:

None

Operating System:

Windows 11 64-bit

Form Factor:

mATX (243.84mm x 243.84mm)
