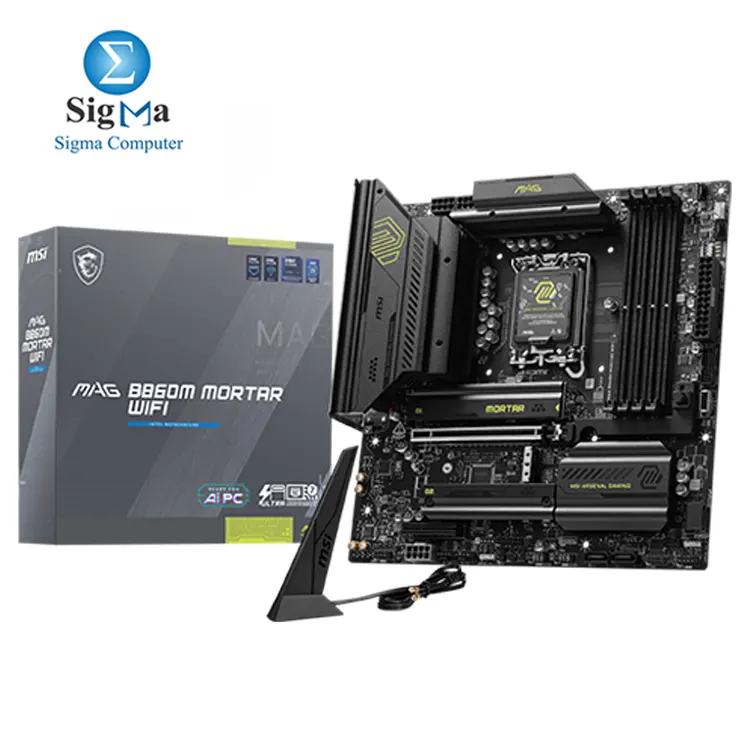

MSI MAG B860M MORTAR WIFI

Model:

MSI MAG B860M MORTAR WIFI

CPU Support:

Intel® Core™ Ultra Processors (Series 2), LGA 1851

Chipset:

Intel B860

DIMM Slots:

4x DDR5 UDIMM

Max Memory support:

Up to 256GB DDR5, 9200+ MT/s (OC)

PCI-E Slots:

1x PCIe 5.0 x16, 1x PCIe 4.0 x4

M.2 Slots:

3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4)

SATA III:

4x SATA 6Gb/s

ARGB Headers:

3x Addressable Gen2

RGB Headers:

1x RGB Header

Fan Headers:

1x CPU Fan, 1x Pump/Combo, 4x System Fan

Front Type C Headers:

1x USB 10Gbps Type-C

Front USB 3 Headers:

2x USB 5Gbps Type-A

USB 2.0 Headers:

4x USB 2.0

Flash BIOS Buttons:

Yes

Clear COMS Buttons:

Yes

Onboard Graphics Outputs:

1x HDMI 2.1, 1x DisplayPort 1.4, 1x Type-C (DP 2.1 / TB4)

USB Ports:

4x USB 2.0, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C

USB Type C Ports:

1x Rear (TB4 40Gbps), 1x Rear 10Gbps, 1x Front 10Gbps

Ethernet LAN Port:

Intel Killer E5000 5Gbps LAN

Bluetoooht & Wireless:

Intel Killer BE1750x Wi-Fi 7, Bluetooth 5.4

Audio Jacks:

3x Audio Jacks (Rear)

Optical:

1x S/PDIF Out

Operating System:

Windows® 11 64-bit

Form Factor:

mATX (243.84mm x 243.84mm)
