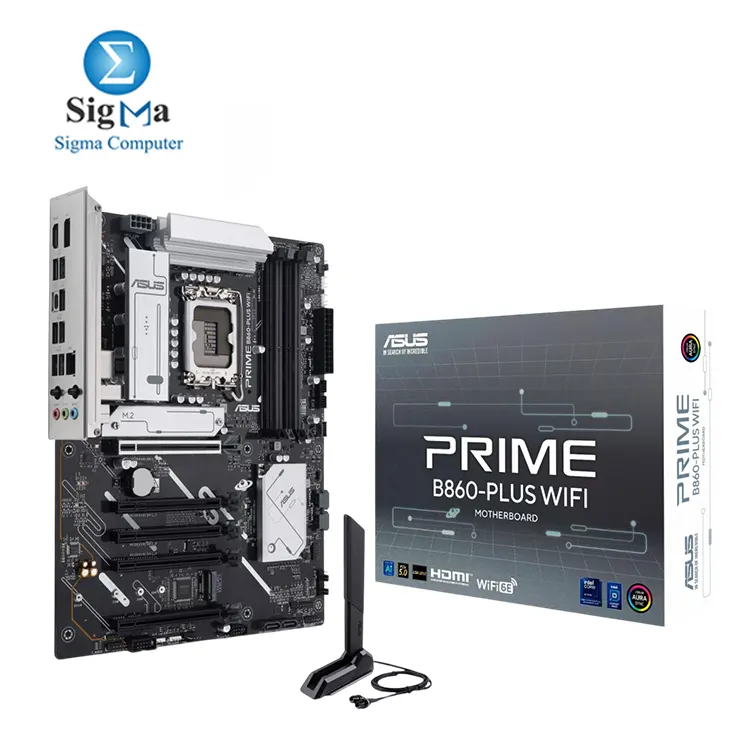

ASUS INTEL PRIME B860-PLUS WIFI

Model:

PRIME B860-PLUS WIFI

CPU Support:

Intel® Core™ Ultra Processors (Series 2) Socket LGA1851

Chipset:

Intel B860 Chipset

DIMM Slots:

4 x DIMM

Max Memory support:

256GB DDR5 Supports up to 8666+ MT/s (OC) Dual Channel Intel® XMP ASUS AEMP III Non-ECC, Un-buffered, CUDIMM

PCI-E Slots:

1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 3 x PCIe 4.0 x16 (x1 mode)

M.2 Slots:

2 x M.2 M.2_1 PCIe 5.0 x4 M.2_2 PCIe 4.0 x4

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

3 x Addressable Gen 2 headers

RGB Headers:

1 x Aura RGB header

Fan Headers:

1 x CPU Fan 1 x CPU OPT Fan 1 x AIO Pump 4 x Chassis Fan

Front Type C Headers:

1 x USB 5Gbps Type-C connector

Front USB 3 Headers:

1 x USB 5Gbps header

USB 2.0 Headers:

1 x USB 2.0 header

Onboard Graphics Outputs:

1 x DisplayPort 1 x HDMI USB Type-C (DP Alt Mode)

USB Ports:

Rear: 8 Front: 5

Ethernet LAN Port:

Realtek 2.5Gb Ethernet ASUS LANGuard

Bluetoooht & Wireless:

Wi-Fi 6E (2x2) Bluetooth® 5.3

Audio Jacks:

3 x Audio jacks Realtek 7.1 HD Audio

Optical:

S/PDIF Out header (internal)

Operating System:

Windows 11 (22H2 & later) Windows 10 64-bit (21H2 & later)

Form Factor:

ATX 30.5 cm x 24.4 cm
