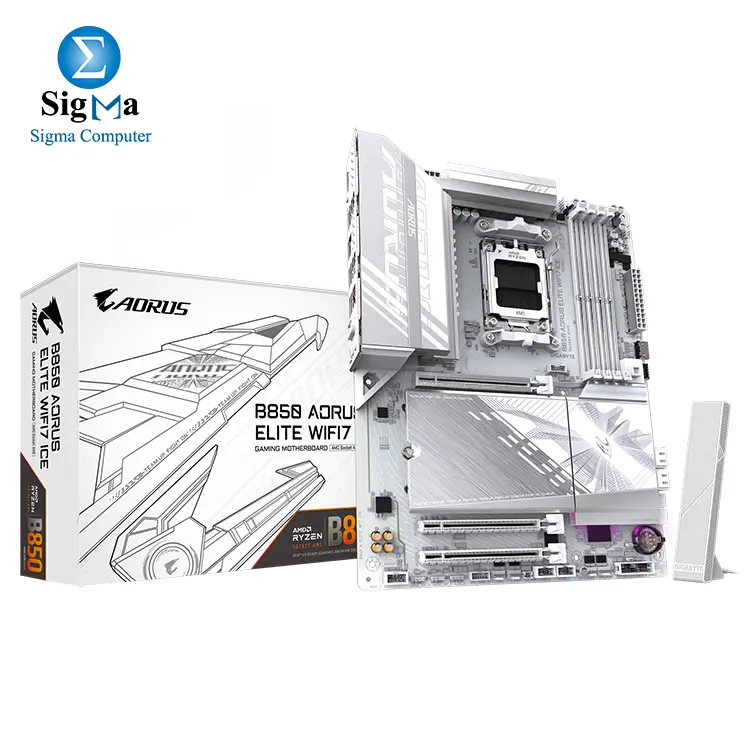

GIGABYTE AMD AORUS B850 ELITE WIFI7 ICE 1.1

Model:

GIGABYTE B850 AORUS ELITE WIFI7

CPU Support:

AMD Socket AM5, Ryzen 9000 / 8000 / 7000 Series

Chipset:

AMD B850

DIMM Slots:

4× DDR5 DIMMs

Max Memory support:

Up to 256 GB DDR5 4800–8200(O.C.) MT/s, Dual Channel, non-ECC un-buffered, AMD EXPO™ & Intel® XMP support

PCI-E Slots:

1× PCIe x16 (Ryzen 9000/7000: PCIe 5.0 x16; Ryzen 8000 Phoenix 1: PCIe 4.0 x8; Ryzen 8000 Phoenix 2: PCIe 4.0 x4), 2× PCIe x1 (PCIe 3.0)

M.2 Slots:

3× PCIe (M2A_CPU: PCIe 5.0 x4; M2B_CPU: PCIe 4.0 x4; M2C_SB: PCIe 4.0 x4)

SATA III:

4× SATA 6Gb/s

ARGB Headers:

3× ARGB Gen 2

RGB Headers:

1× RGB

Fan Headers:

4× (CPU/SYS/Pump)

Front Type C Headers:

1× USB-C (USB 3.2 Gen 2x2)

Front USB 3 Headers:

2× USB 3.2 Gen 1

USB 2.0 Headers:

4× USB 2.0

Flash BIOS Buttons:

1× Q-Flash Plus button

Clear COMS Buttons:

1× Clear CMOS header

Onboard Graphics Outputs:

1× DisplayPort 1.4 (3840×2160@144Hz), 1× HDMI 1.4 (1920×1080@30Hz, front panel)

USB Ports:

2× USB 3.2 Gen 2 Type-A, 5× USB 3.2 Gen 1, 4× USB 2.0

USB Type C Ports:

1× USB-C (USB 3.2 Gen 2)

Ethernet LAN Port:

1× Realtek® 2.5GbE LAN (RJ-45)

Bluetoooht & Wireless:

Realtek® Wi-Fi 7 RTL8922AE (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz), Bluetooth® 5.4

Audio Jacks:

2× audio jacks (Rev 1.0: Realtek® Audio CODEC; Rev 1.1: Realtek® ALC1220)

Optical:

1× Optical S/PDIF Out

Operating System:

Windows 11 64-bit only

Form Factor:

ATX
