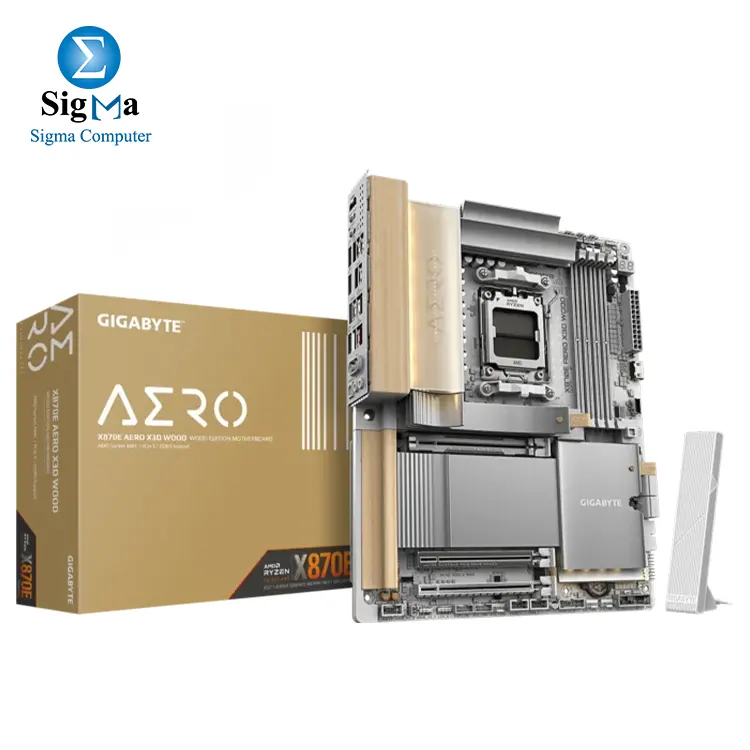

GIGABYTE AMD X870E AERO X3D WOOD 1.0

CPU Support:

AMD Ryzen 9000 / 8000 / 7000 Series (Socket AM5)

Chipset:

AMD X870E

DIMM Slots:

4 × DDR5 DIMM

Max Memory support:

256GB

PCI-E Slots:

3 × PCIe (PCIe 5.0 x16 ×1، PCIe 5.0 x8 ×1، PCIe 4.0 x4 ×1)

M.2 Slots:

4 × M.2

SATA III:

4 × SATA 6Gb/s

ARGB Headers:

3 × Addressable RGB Gen2

RGB Headers:

1 × RGB LED

Fan Headers:

8 (1× CPU Fan، 1× CPU Fan/Water Pump، 4× System Fan، 2× System Fan/Water Pump)

Front Type C Headers:

1 × USB 3.2 Gen 2x2 Type-C Header

Front USB 3 Headers:

2 × USB 3.2 Gen 1 Headers

USB 2.0 Headers:

2 × USB 2.0/1.1 Headers

Flash BIOS Buttons:

Yes (Q-Flash Plus)

Clear COMS Buttons:

Yes

Onboard Graphics Outputs:

2 × USB4 Type-C (DisplayPort)، 1 × HDMI، 1 × Front HDMI

USB Ports:

8 × USB Type-A (5× USB 3.2 Gen 2، 3× USB 3.2 Gen 1)

USB Type C Ports:

3 × USB Type-C (2× USB4، 1× USB 3.2 Gen 2x2)

Ethernet LAN Port:

2 × RJ-45 (Realtek 5GbE)

Bluetoooht & Wireless:

Wi-Fi 7 (MediaTek MT7927 RZ738)، Bluetooth 5.4

Audio Jacks:

2

Optical:

1 × Optical S/PDIF Out

Operating System:

Windows 11 64-bit

Form Factor:

ATX
