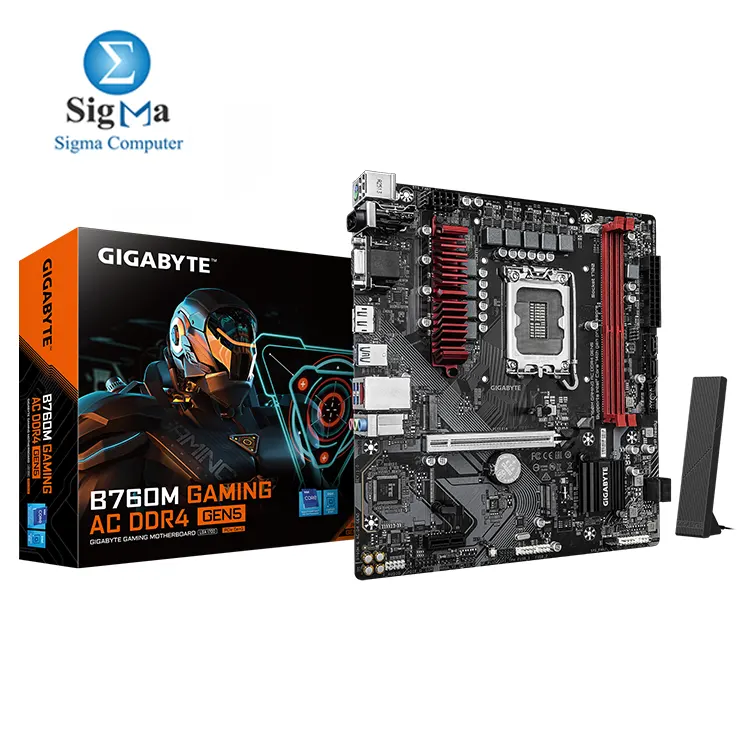

GIGABYTE B760M GAMING AC DDR4 (GEN5)

Model:

GIGABYTE B760M GAMING AC DDR4 (GEN5)

CPU Support:

Intel® 14th/13th/12th Gen Core™, Pentium® Gold, Celeron® Processors (LGA1700)

Chipset:

Intel® B760 Express

DIMM Slots:

2 x DDR4 DIMM

Max Memory support:

Up to 64GB DDR4 5333(O.C.) Dual Channel

PCI-E Slots:

1 x PCIe 5.0 x16, 1 x PCIe 3.0 x1

M.2 Slots:

2 x M.2 PCIe 4.0 x4/x2

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

2 x Addressable RGB Gen2

RGB Headers:

1 x RGB LED Header

Fan Headers:

1 x CPU, 3 x System

Front Type C Headers:

1 x USB 3.2 Gen1 Type-C (Front)

Front USB 3 Headers:

1 x USB 3.2 Gen1 Header

USB 2.0 Headers:

2 x Internal USB 2.0 Headers

Flash BIOS Buttons:

1 x Q-Flash Plus Button

Clear COMS Buttons:

1 x Clear CMOS Jumper

Onboard Graphics Outputs:

HDMI 2.1, DisplayPort 1.2, D-Sub

PS/2 Combo Ports:

1 x PS/2 Keyboard/Mouse Combo Port

USB Ports:

5 x USB 3.2 Gen1, 6 x USB 2.0

USB Type C Ports:

1 x Rear USB Type-C (USB 3.2 Gen1)

Ethernet LAN Port:

Realtek 2.5GbE LAN

Bluetoooht & Wireless:

Realtek Wi-Fi RTL8821CE (WiFi AC Dual Band, Bluetooth 5.0)

Audio Jacks:

3 x Audio Jacks (7.1 Channel HD Audio)

Optical:

1 x S/PDIF Out Header

Operating System:

Windows 11/10 64-bit

Form Factor:

Micro ATX (24.4cm x 22.5cm)
