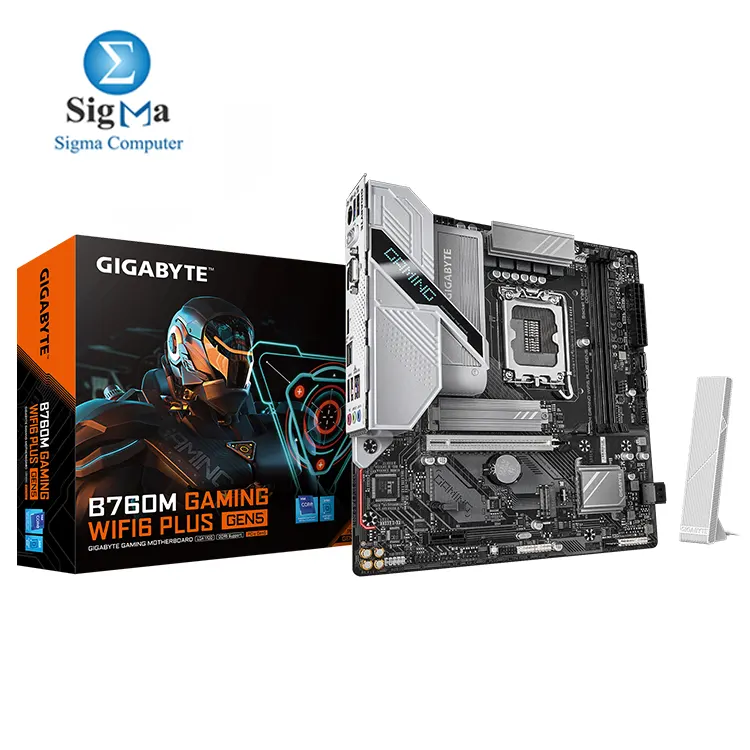

Gigabyte INTEL B760M GAMING WIFI6 PLUS GEN5 1.0

Model:

B760M GAMING WIFI6 PLUS GEN5

CPU Support:

Intel® LGA1700 socket — 14th, 13th, 12th Gen Core™, Pentium® Gold, Celeron®

Chipset:

Intel B760 Express Chipset

DIMM Slots:

2 x DDR5 DIMM sockets

Max Memory support:

Up to 128 GB

PCI-E Slots:

1 x PCIe 5.0 x16, 1 x PCIe 3.0 x1

M.2 Slots:

2 x M.2 PCIe 4.0 x4/x2

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

2

RGB Headers:

1

Fan Headers:

1 x CPU fan, 3 x system fans

Front Type C Headers:

0

Front USB 3 Headers:

1 x USB 3.2 Gen 1 header

USB 2.0 Headers:

2

Flash BIOS Buttons:

Q-Flash Plus button

Clear COMS Buttons:

Clear CMOS jumper

Onboard Graphics Outputs:

1 x D-Sub, 1 x HDMI 2.1, 1 x DisplayPort 1.2

PS/2 Combo Ports:

1

USB Ports:

5 x USB 3.2 Gen 1, 6 x USB 2.0

USB Type C Ports:

1 x USB Type-C 3.2 Gen 1

Ethernet LAN Port:

Realtek 2.5GbE LAN

Bluetoooht & Wireless:

Realtek® Wi-Fi 6, Bluetooth 5.3

Audio Jacks:

3 x audio jacks

Optical:

Yes

Operating System:

Windows 11 64-bit, Windows 10 64-bit

Form Factor:

Micro ATX (24.4cm x 22.5cm)
