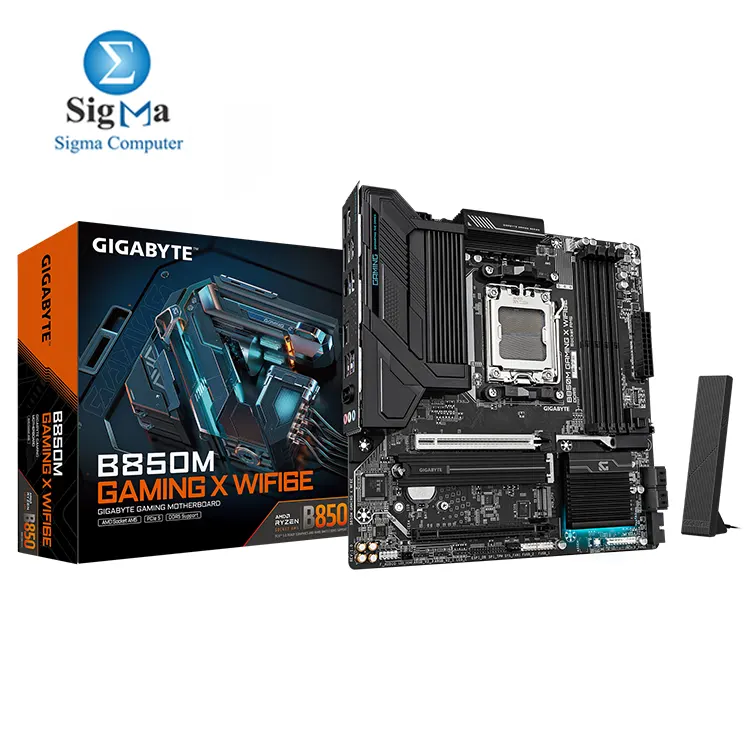

Gigabyte B850M GAMING X WIFI6E (rev. 1.x)

Model:

B850M GAMING X WIFI6E (rev. 1.x)

CPU Support:

AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (Socket AM5)

Chipset:

AMD B850

DIMM Slots:

4 x DDR5 DIMM sockets

Max Memory support:

Up to 256GB (DDR5 8200MT/s OC)

PCI-E Slots:

1 x PCIe 5.0 x16, 1 x PCIe 3.0 x4

M.2 Slots:

2 x M.2 (PCIe 5.0/4.0 x4/x2)

SATA III:

4 x SATA 6Gb/s ports

ARGB Headers:

3 x Addressable RGB Gen2 headers

RGB Headers:

1 x RGB LED header

Fan Headers:

4 (CPU fan, CPU/WP, SYS fan, SYS/WP)

Front Type C Headers:

1 x USB Type-C® header (USB 3.2 Gen 2 support)

Front USB 3 Headers:

1 x USB 3.2 Gen 1 header (2 ports)

USB 2.0 Headers:

2 x USB 2.0/1.1 headers (4 ports)

Flash BIOS Buttons:

Q-Flash Plus button

Clear COMS Buttons:

1 x Clear CMOS jumper

Onboard Graphics Outputs:

1 x HDMI 2.1, 2 x DisplayPort 1.4

PS/2 Combo Ports:

1

USB Ports:

Rear: 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0 Internal: 4 x USB 3.2 Gen 1, 4 x USB 2.0

USB Type C Ports:

Rear: 1 x USB 3.2 Gen 2 Type-C Internal: 1 x USB 3.2 Gen 2 Type-C header

Ethernet LAN Port:

Realtek® 2.5GbE LAN

Bluetoooht & Wireless:

Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5.3

Audio Jacks:

3 x Audio jacks (7.1-channel HD Audio)

Operating System:

Windows 11 64-bit, Windows 10 64-bit

Form Factor:

Micro ATX (24.4cm x 24.4cm)
