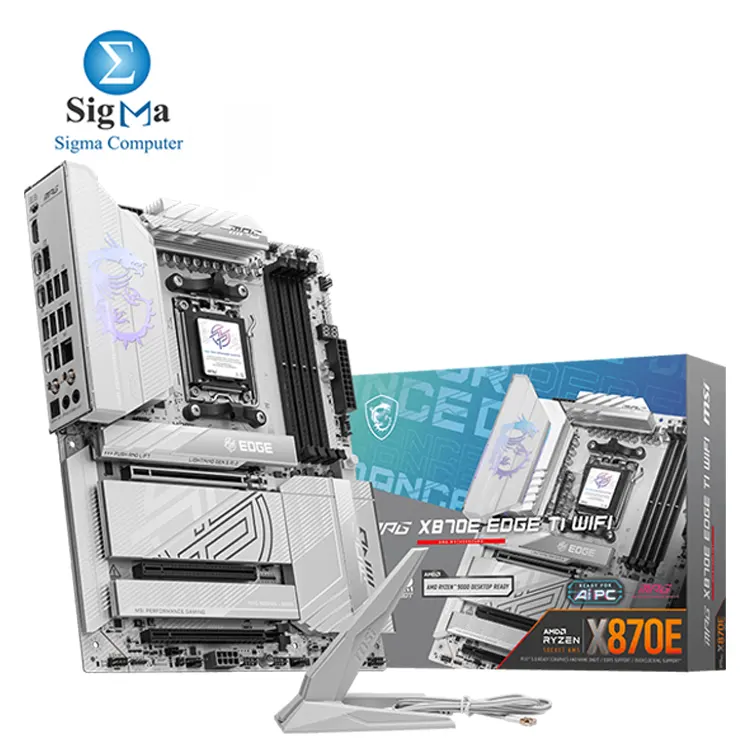

MSI MPG X870E EDGE TI WIFI AM5 Motherboard

Model:

MPG X870E EDGE TI WIFI

CPU Support:

AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Chipset:

AMD X870E

DIMM Slots:

4x DDR5 UDIMM

Max Memory support:

256GB DDR5 up to 8400+ MT/s (OC)

PCI-E Slots:

3x PCIe (1x PCIe 5.0 x16, 1x PCIe 3.0 x1, 1x PCIe 4.0 x4)

M.2 Slots:

4x M.2 (2x PCIe 5.0 x4, 2x PCIe 4.0 x4)

SATA III:

4x SATA 6Gb/s

ARGB Headers:

3x JARGB_V2

RGB Headers:

1x JRGB

Fan Headers:

1x CPU Fan, 1x Pump/Combo Fan, 6x System Fan

Front Type C Headers:

1x USB 20Gbps Type-C

Front USB 3 Headers:

4x USB 5Gbps Type-A

USB 2.0 Headers:

4x USB 2.0

Flash BIOS Buttons:

Yes (Rear)

Clear COMS Buttons:

Yes (Rear)

Onboard Graphics Outputs:

1x HDMI 2.1, 2x USB4 Type-C (DP 1.4)

PS/2 Combo Ports:

None

USB Ports:

4x USB 2.0, 4x USB 5Gbps Type-A, 5x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 2x USB 40Gbps Type-C

USB Type C Ports:

1x Front 20Gbps, 1x Rear 10Gbps, 2x Rear 40Gbps

Ethernet LAN Port:

1x Realtek® 8126 5G LAN

Bluetoooht & Wireless:

Wi-Fi 7, Bluetooth 5.4

Audio Jacks:

5x 3.5mm

Optical:

1x Optical S/PDIF Out

Operating System:

Windows 11 64-bit

Form Factor:

ATX
