Gigabyte UD1300GM PG5 1300W 80 Plus Gold Fully Modular Power Supply | 11499 EGP

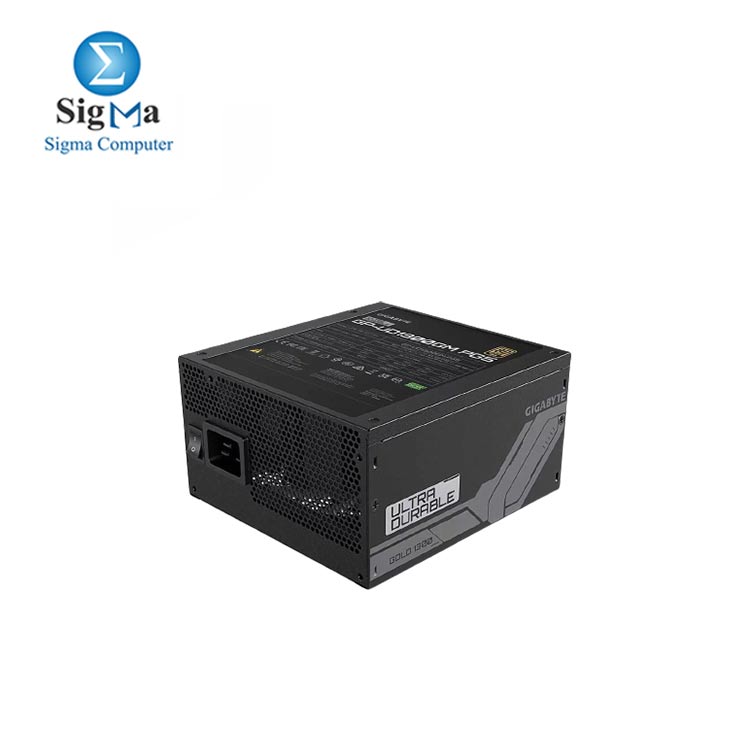

Gigabyte UD1300GM PG5 1300W 80 Plus Gold Fully Modular Power Supply

11499 LE
shipped by (sigma)
Point: 50

Brand : Gigabyte brand

Model : UD1300GM

Seller : sigma

Viewed : 2539 items


Main Japanese capacitors
Enhanced thermal solution
140mm double ball bearing fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact size










Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
1300W
Dimension
150 x 160 x 86 mm
Fan Type
140mm double ball bearing fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
SATA x 12 : 650mm+150mm+150mm+150mm*3
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2







CategoryDesktop
SubcategoryPower Supply
BrandGigabyte
ModelUD1300GM
