AMD Ryzen 7 9800X3D: 8C/16T, 4.7GHz Base, 5.2GHz Boost, 96MB L3 Cache, 120W TDP, AM5, DDR5, PCIe 5.0, Radeon iGPU (2C, 2200MHz) | 25999 EGP

AMD Ryzen 7 9800X3D 8C 16T 4.7GHz Base 5.2GHz Boost 96MB L3 Cache 120W TDP AM5 DDR5 PCIe 5.0 Radeon iGPU 2C 2200MHz

25999 LE
Availability: In Stock
shipped by (sigma)
Point: 50

Brand : AMD brand

Seller : sigma

Viewed : 1411 items

AMD Ryzen 7 9800X3D - Key Specs

  • Architecture: Zen 5 (Granite Ridge)
  • Cores / Threads: 8 Cores / 16 Threads
  • Base / Boost Clock: 4.7 GHz / Up to 5.2 GHz
  • Cache: 640 KB L1, 8 MB L2, 96 MB L3
  • TDP: 120W
  • Fabrication Process: TSMC 4nm (CPU), 6nm (I/O)
  • Socket: AM5
  • Overclocking: Yes (Unlocked, Precision Boost Overdrive, Curve Optimizer)
  • Memory: DDR5, Dual-Channel, Up to 192GB, ECC Supported
  • PCIe: Gen 5.0, 28 Lanes (24 Usable)
  • Integrated Graphics: AMD Radeon, 2 Cores, 2200 MHz
  • Recommended Cooling: Liquid Cooler
  • Max Operating Temp: 95°C

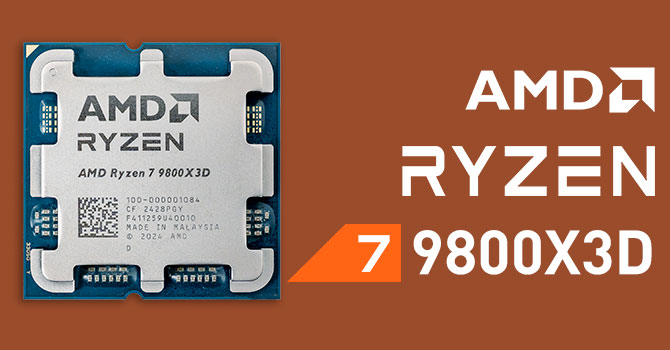

AMD Ryzen 7 9800X3D Desktop Processor

  • Family: Ryzen
  • Series: Ryzen 9000 Series
  • Form Factor: Desktop, Boxed Processor
  • Market Segment: Enthusiast Desktop
  • Architecture: Zen 5
  • Former Codename: Granite Ridge AM5
  • CPU Cores: 8
  • Threads: 16
  • Base Clock: 4.7 GHz
  • Max Boost Clock: Up to 5.2 GHz
  • L1 Cache: 640 KB
  • L2 Cache: 8 MB
  • L3 Cache: 96 MB
  • Default TDP: 120W
  • Fabrication Process:
    • CPU Cores: TSMC 4nm FinFET
    • I/O Die: TSMC 6nm FinFET
  • Unlocked for Overclocking: Yes
  • AMD EXPO Memory Overclocking Technology: Yes
  • Precision Boost Overdrive: Yes
  • Curve Optimizer Voltage Offsets: Yes
  • AMD Ryzen Master Support: Yes
  • CPU Socket: AM5
  • Supported Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
  • CPU Boost Technology: Precision Boost 2
  • Instruction Set: x86-64
  • Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
  • Thermal Solution (PIB): Not Included
  • Recommended Cooling: Liquid cooling recommended for optimal performance
  • Max Operating Temperature (Tjmax): 95°C
  • Launch Date: November 7, 2024

Memory & Storage

  • System Memory Type: DDR5
  • Memory Channels: 2
  • Max Memory Capacity: 192 GB
  • Memory Type: UDIMM
  • Max Memory Speed:
    • 2x1R: DDR5-5600
    • 2x2R: DDR5-5600
    • 4x1R: DDR5-3600
    • 4x2R: DDR5-3600
  • ECC Support: Yes (Requires motherboard support)
  • PCI Express Version: PCIe 5.0
  • Native PCIe Lanes: 28 Total, 24 Usable
  • NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10

Graphics

  • Graphics Model: AMD Radeon Graphics
  • Graphics Core Count: 2
  • Graphics Frequency: 2200 MHz
  • USB Type-C DisplayPort Alternate Mode: Yes

Connectivity

  • Native USB 3.2 Gen 2 (10Gbps): 4 Ports
  • Native USB 2.0 (480Mbps): 1 Port

OS Support

  • Windows 11 64-bit
  • Windows 10 64-bit
  • RHEL x86 64-bit
  • Ubuntu x86 64-bit

Product IDs

  • Boxed: 100-100001084WOF

Key Features & Supported Technologies

  • AMD EXPO Technology
  • AMD Ryzen Technologies
CategoryDesktop
SubcategoryProcessors
BrandAMD
Model100-100001084WOF
