Cooler Master MWE Gold 850 V2 Full Modular, 850W, 80+ Gold Efficiency, 2 EPS Connectors, 120mm HDB Fan
MODEL
MPE-8501-AFAAG
ATX VERSION
ATX 12V
PFC
Active PFC
INPUT VOLTAGE
90-264V
INPUT CURRENT
12-6A
INPUT FREQUENCY
47-63Hz
DIMENSIONS (L X W X H)
160 x 150 x 86 mm
FAN SIZE
120mm
FAN BEARING
HDB
FAN SPEED
1500 RPM
NOISE LEVEL @ 20%
0 dBA
NOISE LEVEL @ 50%
17.8 dBA
NOISE LEVEL @ 100%
25.9 dBA
EFFICIENCY
90% @ Typical Load
80 PLUS RATING
80 PLUS Gold
ERP 2014 LOT 3
Yes
OPERATING TEMPERATURE
0-50°C
POWER GOOD SIGNAL
100 - 150 ms
HOLD UP TIME
>16ms at 100% Load
MTBF
>100,000 Hours
PROTECTIONS
OVP, OPP, OTP, SCP, OCP, UVP
REGULATORY
TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI

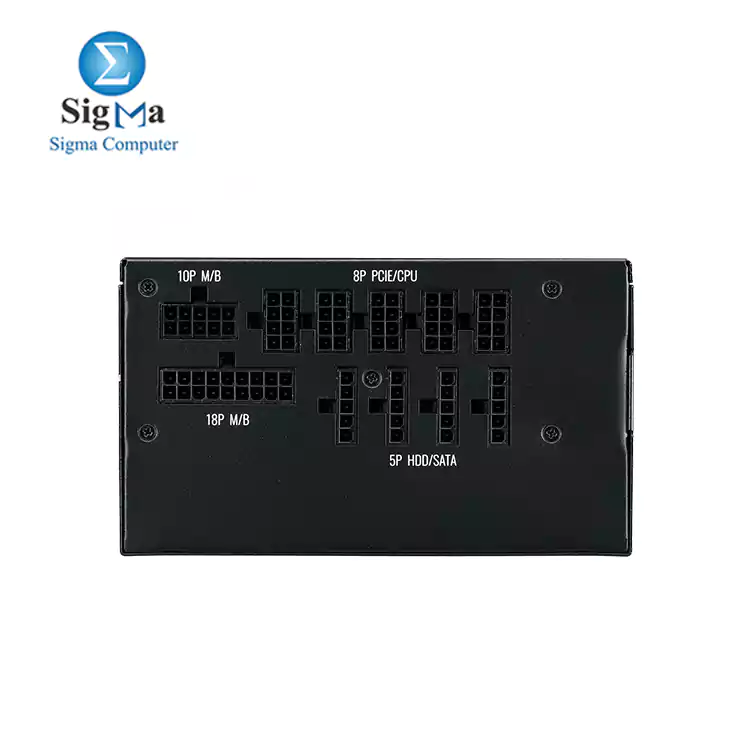

ATX 24-PIN CONNECTORS
1
EPS 4+4 PIN CONNECTORS
1
EPS 8 PIN CONNECTOR
1
SATA CONNECTORS
12
PERIPHERAL 4-PIN CONNECTORS
4
PCI-E 6+2 PIN CONNECTORS
4
SERIES
MWE Gold Series
80 PLUS
Gold
MODULAR
Full Modular
WATTAGE
Above 750W
