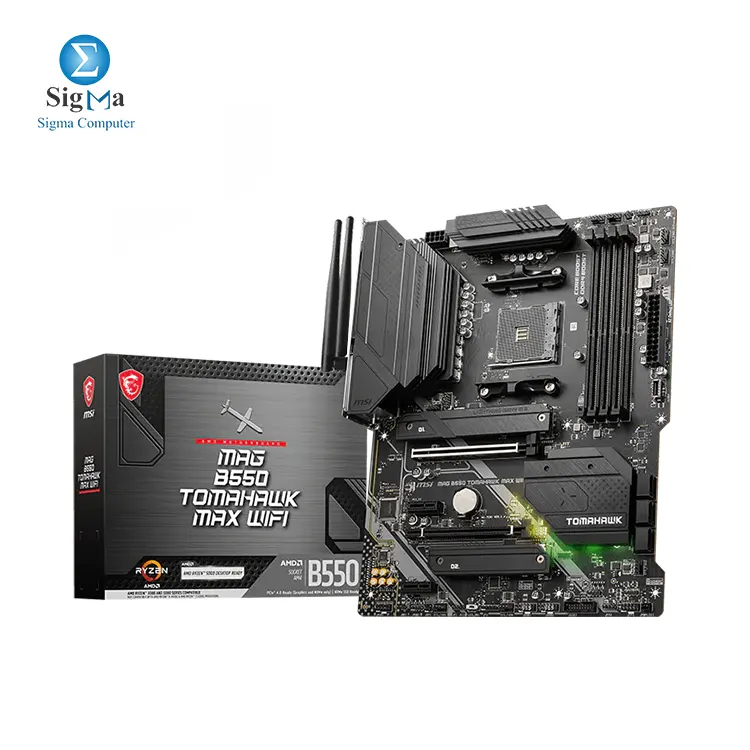

MSI AMD B550 MAG TOMAHAWK MAX WIFI

Model:

MAG B550 TOMAHAWK MAX WIFI

CPU Support:

AMD Ryzen 5000 / 5000G / 4000G / 3000 Series

Chipset:

AMD B550

DIMM Slots:

4

Max Memory support:

128GB DDR4 up to 5100+ MHz (OC)

PCI-E Slots:

2 x PCIe x16, 2 x PCIe x1

M.2 Slots:

2

SATA III:

6

ARGB Headers:

2

RGB Headers:

2

Fan Headers:

6

Front Type C Headers:

1 x USB 3.2 Gen1 Type-C

Front USB 3 Headers:

2 x USB 3.2 Gen1 Type-A

USB 2.0 Headers:

4 (Front), 2 (Rear)

Flash BIOS Buttons:

Yes

Clear COMS Buttons:

No

Onboard Graphics Outputs:

1 x HDMI, 1 x DisplayPort

PS/2 Combo Ports:

1

USB Ports:

Rear – 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0

USB Type C Ports:

Rear – 1 x USB 3.2 Gen2 Type-C, Front – 1 x USB 3.2 Gen1 Type-C

Ethernet LAN Port:

1 x 2.5G LAN

Bluetoooht & Wireless:

WiFi 6E, Bluetooth 5.2

Audio Jacks:

5 x Audio Jacks (Realtek ALC897 Codec)

Optical:

1 x Optical S/PDIF out

Operating System:

Windows 11 / Windows 10 (64-bit)

Form Factor:

ATX
