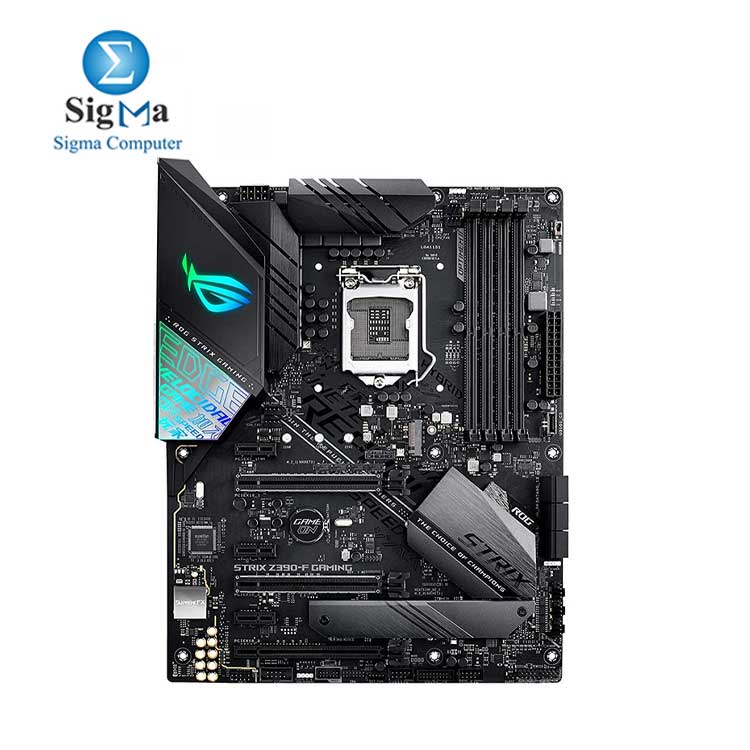

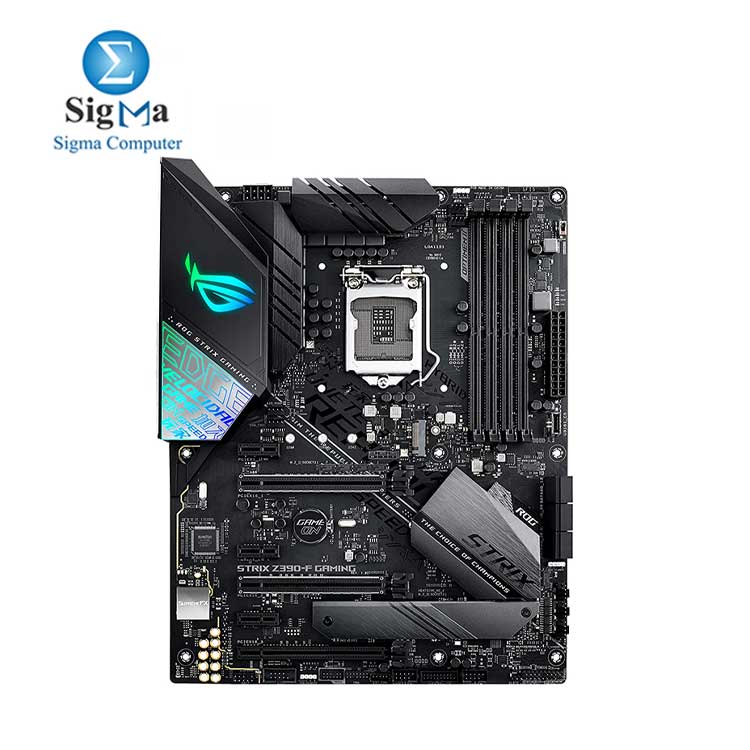

ASUS ROG Strix Z390-F Gaming Motherboard

reviews | Write a review

3800 LE

shipped by (sigma)

Point: 0

Brand : ASUS

Model : Z390

Seller : sigma

Viewed : 4843 items

ASUS ROG Strix Z390-F Gaming Motherboard

socket 1151

Designed for 9th and 8th Generation Intel Core processors to maximize connectivity and speed with Dual M.2, USB 3.1 Gen 2, Gigabit LAN and ASUS Optic-MEM II for better DRAM overclocking stability
Revamped 5-way Optimization overclocks Intelligently based on smart prediction and thermal telemetry while FanXpert 4 delivers dynamic system cooling
Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality
Aura Sync RGB lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of product
Channel HD Audio with ROG exclusive supreme S1220A codec driven by Japanese capacitors for warm and rich sound

Seller note

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

ASUS ROG Strix Z390-F Gaming Motherboard

Model

Brand: ASUS

Series: ROG

Model: Strix Z390-F Gaming

Supported CPU

CPU Socket Type: LGA 1151 (300 Series)

CPU Type: Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
* Refer to www.asus.com for CPU support list
* Not backward compatible with older generation of LGA 1151 CPUs

Supported CPU Technologies: Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipsets

Chipset: Intel Z390

Onboard Video

Onboard Video Chipset: Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Memory

Number of Memory Slots: 4×288pin

Memory Standard: DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Maximum Memory Supported: 64GB

Channel Supported: Dual Channel

Expansion Slots

PCI Express 3.0 x16: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)

PCI Express x1: 3 x PCIe 3.0/2.0 x1

Storage Devices

SATA 6Gb/s: 6 x SATA 6Gb/s

M.2: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
* When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable.

Intel Optane Ready: Yes

SATA RAID: 0/1/5/10

Onboard Audio

Audio Chipset: ROG SupremeFX High Definition Audio CODEC S1220A

Audio Channels: 8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

Onboard LAN

LAN Chipset: Intel I219-V

Max LAN Speed: 10/100/1000Mbps

Rear Panel Ports

HDMI: 1 x HDMI

RJ45: 1 x RJ45

DisplayPort: 1 x DisplayPort

USB 3.1: 3 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1

USB 1.1/2.0: 2 x USB 2.0

USB Type-C: 1 x USB 3.1 Gen 2

S/PDIF Out: 1 x Optical

Audio Ports: 5 Ports

Internal I/O Connectors

Onboard USB: 1 x USB 3.1 Gen 1 front panel Type-C connector
1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Other Connectors: 1 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x 5-pin EXT_FAN (Extension Fan) connector
1 x 14-1-pin TPM connector
1 x COM port header
1 x AIO PUMP Header

Physical Spec

Form Factor: ATX

LED Lighting: RGB

Dimensions (W x L): 12.0" x 9.6"

Power Pin: 1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)

Features

Features: Multi-GPU Support:
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology

ROG Exclusive Features:
ROG Exclusive Software
- RAMCache III
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III

Special Features:
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
AI Overclocking
ASUS Optimem II:
- Optimem (Improved DDR4 stability)
- Improved DDR4 Stability
AURA:
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features:
- MemOK! II
- AI Suite 3
- Ai Charger
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design:
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics:
- 3D printing friendly
- AURA-RGB Lighting
Digi+VRM
M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)
DIY Friendly Design
- Procool
- SafeSlot
- Digi+ VRM
- DRAM Overcurrent Protection
- Highly Durable components
- ESD Guards

BIOS:
1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1

Manageability:
WOL, PXE

Operating System:
Windows 10 64-bit

Packaging

Package Contents: Accessories:
User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x MOS fan bracket kit
1 x CABLE TIE BLACK
1 x SLI HB BRIDGE (2-WAY-M)
1 x ROG Strix stickers
1 x ROG Door Hanger(s)
1 x Extension Cable for RGB strips (80cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
