The NH-D12L is a low-height 120mm class CPU cooler that has been conceived to combine outstanding quiet cooling performance with superior case compatibility. At a height of only 145mm (13mm lower than Noctua’s regular 120mm models)

Cleaning wipes for removing thermal compounds such as Noctua NT-H2 and NT-H1
Ideal for cleaning the contact surface of the heatsink as well as the heat-spreader of CPUs, GPUs or other chips
Pre-moistened with a custom detergent mixture for easy and efficient cleaning
Large size (15x12cm) is usually enough to clean both the chip and the cooler

Size 120x120x25 mm
Mounting hole spacing 105x105 mm
Connector & pin-configuration 4-pin PWM
Cable length 40cm
Bearing SSO-Bearing
Blade geometry Pressure-optimized Nine Blade Design with Vortex-Control Notches
Rotational speed (+/- 10%) 1700 RPM
Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
Airflow 120,2 m³/h
Acoustical noise 25,1 dB(A)
Static pressure 2,83 mm H₂O
Max. input power 1,08 W
Max. input current 0,09 A
Operating voltage 12 V
MTTF > 150.000 h
Scope of delivery
Fan screws

Size 140x150x25 mm
Mounting hole spacing 105x105 mm
Connector & pin-configuration 4-pin PWM
Cable length 1cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) 1500 RPM
Min. rotational speed @ 20% PWM (+/-20%) 300 RPM
Airflow 140,2 m³/h
Acoustical noise 24,6 dB(A)
Static pressure 2,08 mm H₂O
Max. input power 1,56 W
Max. input current 0,13 A
Operating voltage 12 V
MTTF > 150.000 h
Scope of delivery
8x NA-AVP3 chromax.black anti-vibration pads
8x NA-AVP3 chromax.blue anti-vibration pads
8x NA-AVP3 chromax.green anti-vibration pads
8x NA-AVP3 chromax.red anti-vibration pads
8x NA-AVP3 chromax.white anti-vibration pads
8x NA-AVP3 chromax.yellow anti-vibration pads
4x fan screws

Size 120x120x25 mm
Mounting hole spacing 105x105 mm
Connector & pin-configuration 4-pin PWM
Cable length 20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
Material Sterrox® LCP
Rotational speed (+/- 10%) 1200 RPM
Rotational speed with L.N.A. (+/- 10%) 900 RPM
Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
Airflow 55,7 m³/h
Airflow with L.N.A. 39,4 m³/h
Acoustical noise 12,1 dB(A)
Acoustical noise with L.N.A. 7,6 dB(A)
Static pressure 0,82 mm H₂O
Static pressure with L.N.A. 0,41 mm H₂O
Max. input power 0,6 W
Max. input current 0,05 A
Operating voltage 12 V
Voltage PWM signal 5 V
MTTF > 150.000 h
Scope of delivery
NA-RC8 Low-Noise Adaptor (L.N.A)
NA-YC1 4-pin PWM y-cable
NA-EC1 30cm extension cable
4x NA-AV2 anti-vibration mounts
NA-AVG1 anti-vibration gasket for water cooling radiators
Fan screws

Socket compatibility Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 & AMD AM4, AM5
Height (without fan) 158 mm
Width (without fan) 125 mm
Depth (without fan) 58 mm
Weight (without fan) 760 g
Height (with fan) 158 mm
Width (with fan) 125 mm
Depth (with fan) 112 mm
Weight (with fan) 1220 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 169
Max. TDP see NSPR
Fan compatibility 120x120x25
Scope of delivery
Black NH-U12A heatsink
2x NF-A12x25 PWM chromax.black premium fan
2x NA-RC14 Low-Noise Adaptor (L.N.A)
NA-YC1 4-pin PWM y-cable
NT-H1 high-grade thermal compound
Black SecuFirm2™ mounting kit
Noctua Metal Case-Badge

Socket compatibility Intel LGA1700 (included since Q2 2022, older coolers require NM-i17xx-MP83), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0, LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4)
Height (without fan) 160 mm
Width (without fan) 150 mm
Depth (without fan) 135 mm
Height (with fan) 160 mm
Width (with fan) 150 mm
Depth (with fan) 135 mm
Weight (with fan) 1150 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 167
Max. TDP see NSPR
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
1x NF-A15 PWM premium fan
Low-Noise Adaptor (L.N.A.)
Fan clips for second fan
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge

Volume 1,4 ml
Density 2,49 g/cm³
Colour Grey
Recommended storage time (before use) up to 3 years
Recommended usage time (on the CPU) up to 5 years
Recommended storage temperature room temperature
Operating temperature -50 to 110°C

Socket compatibility AMD sTRX4, sWRX8, TR4, SP3
Height (without fan) 165 mm
Width (without fan) 150 mm
Depth (without fan) 52 mm
Weight (without fan) 865 g
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 78 mm
Weight (with fan) 1030 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 162
Max. TDP see NSPR
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
NF-A15 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ mounting kit
Anti-vibration pads and fan-clips for second NF-A15 (optional)
Noctua metal case-badge

Socket compatibility Intel LGA1700 (included since Q2 2022, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0 & LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4-UxS)
Height (without fan) 165 mm
Width (without fan) 150 mm
Depth (without fan) 52 mm
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 78 mm
Weight (with fan) 935 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 162
Max. TDP see NSPR
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
NF-A15 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Anti-vibration pads and fan-clips for second NF-A15 (optional)
Noctua Metal Case-Badge

Socket compatibility Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4
Height (without fan) 158 mm
Width (without fan) 125 mm
Depth (without fan) 45 mm
Height (with fan) 158 mm
Width (with fan) 125 mm
Depth (with fan) 71 mm
Weight (with fan) 755 g
Material Nickel plated Copper (base and heat-pipes), aluminium (cooling fins)
NSPR 129
Max. TDP see NSPR
Fan compatibility 120x120x25
Scope of delivery
NH-U12S redux heatsink
NF-P12 redux-1700 PWM fan
4x NA-AVP1 chromax.grey anti-vibration pads
Fan mounting clips (one pair)
NT-H1 high-grade thermal compound (pre-applied)
SecuFirm2™ mounting kit

Socket compatibility Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (included since 2019, older coolers require NM-AM4-UxS)
Height (without fan) 158 mm
Width (without fan) 125 mm
Depth (without fan) 45 mm
Height (with fan) 158 mm
Width (with fan) 125 mm
Depth (with fan) 71 mm
Weight (with fan) 755 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 129
Max. TDP see NSPR
Fan compatibility 120x120x25
Scope of delivery
NF-F12 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Anti-vibration pads and fan-clips for second NF-F12
Noctua Metal Case-Badge

Socket compatibility Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4
Height (without fan) 160 mm
Width (without fan) 150 mm
Depth (without fan) 135 mm
Weight (without fan) 980 g
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 161 mm
Weight (with fan) 1320 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 183
Max. TDP see NSPR
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery

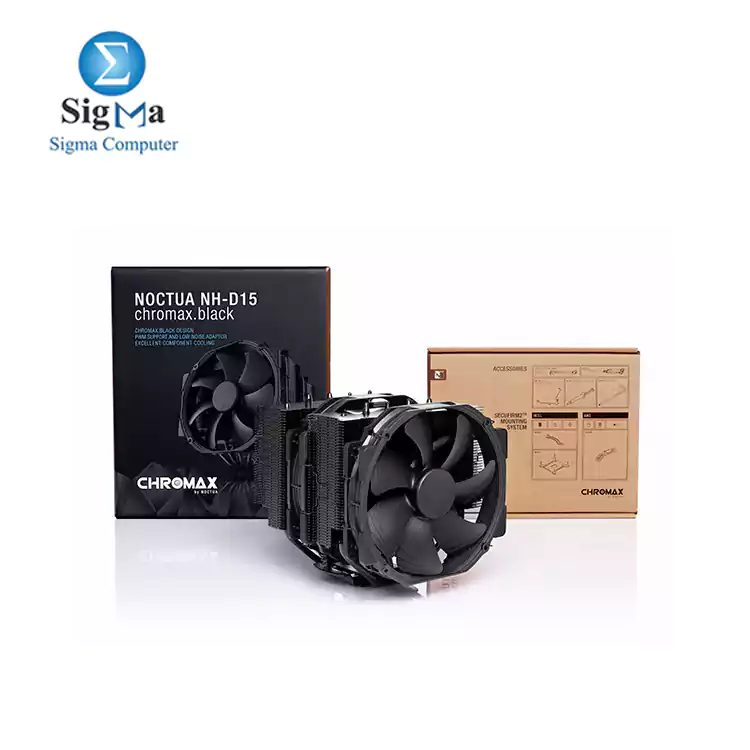

Black NH-D15 heatsink
2x NF-A15 HS-PWM chromax.black premium fan
2x Low-Noise Adaptor (L.N.A.)
4-pin PWM Y-cable
NT-H1 high-grade thermal compound
Black SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge
