NOCTUA COOLING AIR NH D15 CHROMAX BLACK | 4275 EGP

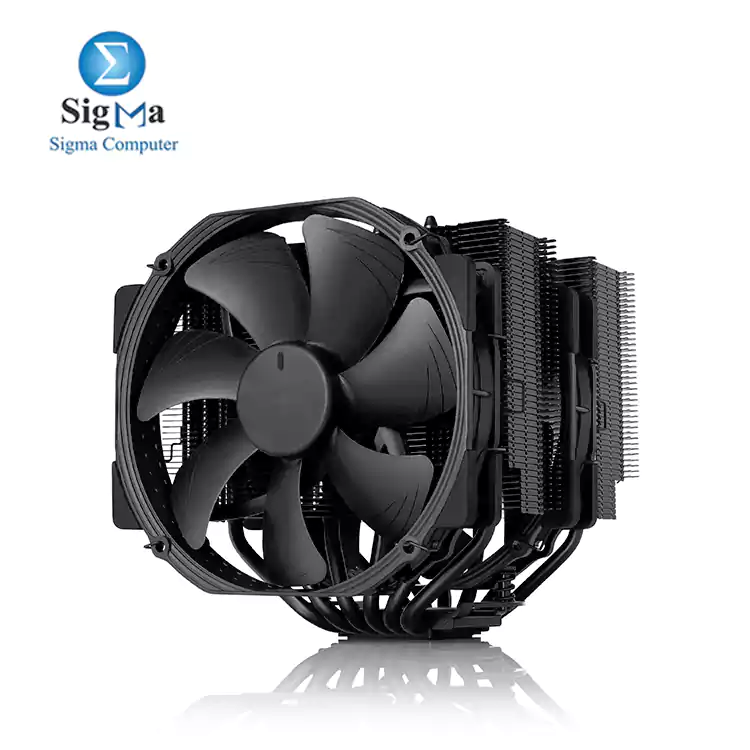

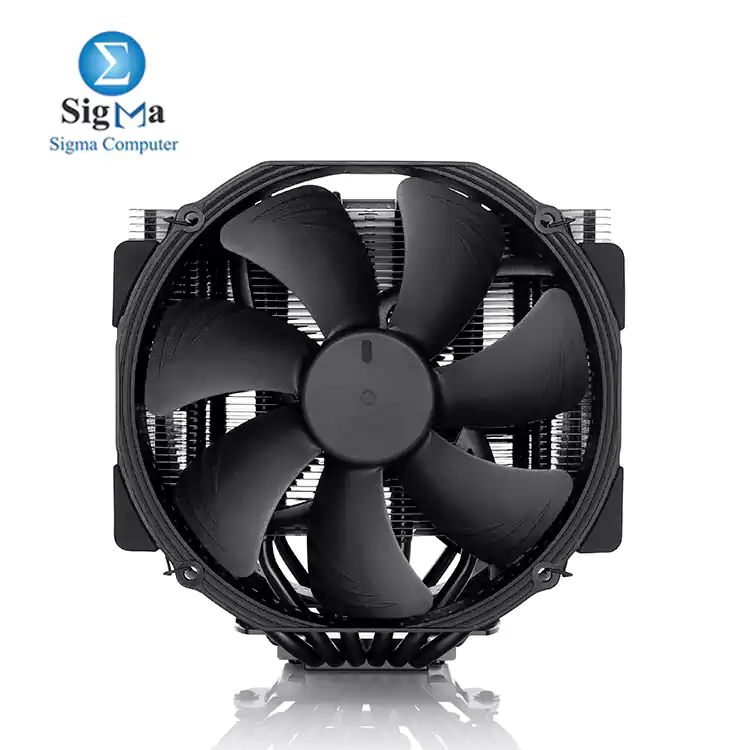

NOCTUA COOLING AIR NH D15 CHROMAX BLACK

4275 LE
shipped by (sigma)
Point: 50

Brand : NOCTUA brand

Model : D15

Seller : sigma

Viewed : 12433 items

Socket compatibility Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4
Height (without fan) 160 mm
Width (without fan) 150 mm
Depth (without fan) 135 mm
Weight (without fan) 980 g
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 161 mm
Weight (with fan) 1320 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 183
Max. TDP see NSPR
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
Black NH-D15 heatsink
2x NF-A15 HS-PWM chromax.black premium fan
2x Low-Noise Adaptor (L.N.A.)
4-pin PWM Y-cable
NT-H1 high-grade thermal compound
Black SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge

Socket compatibility Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4
Height (without fan) 160 mm
Width (without fan) 150 mm
Depth (without fan) 135 mm
Weight (without fan) 980 g
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 161 mm
Weight (with fan) 1320 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 183
Max. TDP see NSPR
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
Black NH-D15 heatsink
2x NF-A15 HS-PWM chromax.black premium fan
2x Low-Noise Adaptor (L.N.A.)
4-pin PWM Y-cable
NT-H1 high-grade thermal compound
Black SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge
FAN Specification
Model 2x Noctua NF-A15 HS-PWM chromax.black
Bearing SSO2
Max. rotational speed (+/- 10%) 1500 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1200 RPM
Min. rotational speed (PWM, +/-20%) 300 RPM
Max. airflow 140,2 m³/h
Max. airflow with L.N.A. 115,5 m³/h
Max. acoustical noise 24,6 dB(A)
Max. acoustical noise with L.N.A. 19,2 dB(A)
Voltage range 12 V
MTTF > 150.000 h

CategoryAccessories
SubcategoryPC Cooling
BrandNOCTUA
ModelD15
