GIGABYTE Z490 Gaming X Intel LGA1200 Z490 Micro ATX M.2 Intel GbE LAN SATA 6Gb s Gaming

reviews | Write a review

3600 LE

shipped by (sigma)

Point: 50

Brand : Gigabyte

Model : Z490M

Seller : sigma

Viewed : 3878 items

Supports 10th Gen Intel Core processors

Direct 11+1 Phase Digital VRMs with DrMOS Stages

Extended MOS Heatsink VRM Cooling

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Intel GbE LAN

1x M.2 Thermal Guard

AMP UP Audio ALC1200 AUDIO DAC

RGB Fusion 2.0

Smart Fan 5 Hybrid Fan Headers with smart fan functions (Fan Stop, PWM Controls, Noise Detection)

Rear - 1USB 3.2 Gen2 (A) , 1USB 3.2 Gen2 (C), 4*USB 3.2 Gen1

Memory Storage Capacity: 10000 Tb

Seller note

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

CPU
1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® Z490 Express Chipset
Memory
1. Intel® Core™ i9/i7 processors:
  DDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Audio
1. Realtek® ALC1200 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4
3. 3 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
5. Intel® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
Chipset:
1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2. 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x 8-pin ATX 12V power connector
4. 1 x CPU fan header
5. 4 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 6 x SATA 6Gb/s connectors
9. 2 x M.2 Socket 3 connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x S/PDIF Out header
13. 1 x USB 3.2 Gen 1 header
14. 1 x USB 2.0/1.1 header
15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
16. 2 x Thunderbolt™ add-in card connectors
17. 1 x serial port header
18. 1 x Clear CMOS jumper
19. 1 x Q-Flash Plus button

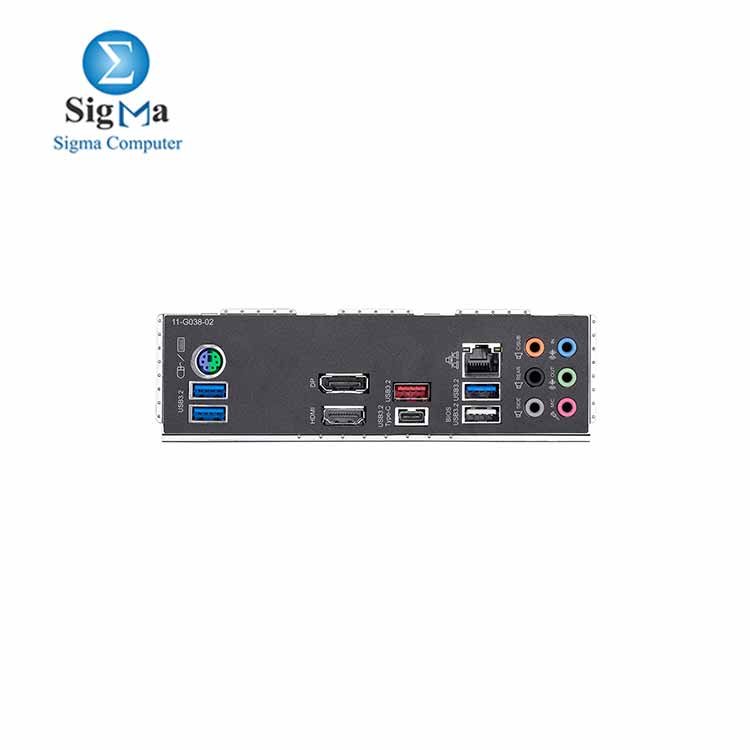

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 1 x USB 3.2 Gen 2 Type-A port (red)
4. 5 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 6 x audio jacks
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS

Category	Desktop
Subcategory	Motherboard
Brand	Gigabyte
Model	Z490M
Motherboard Type	Intel
Socket	LGA 1200
chipset	Z490
