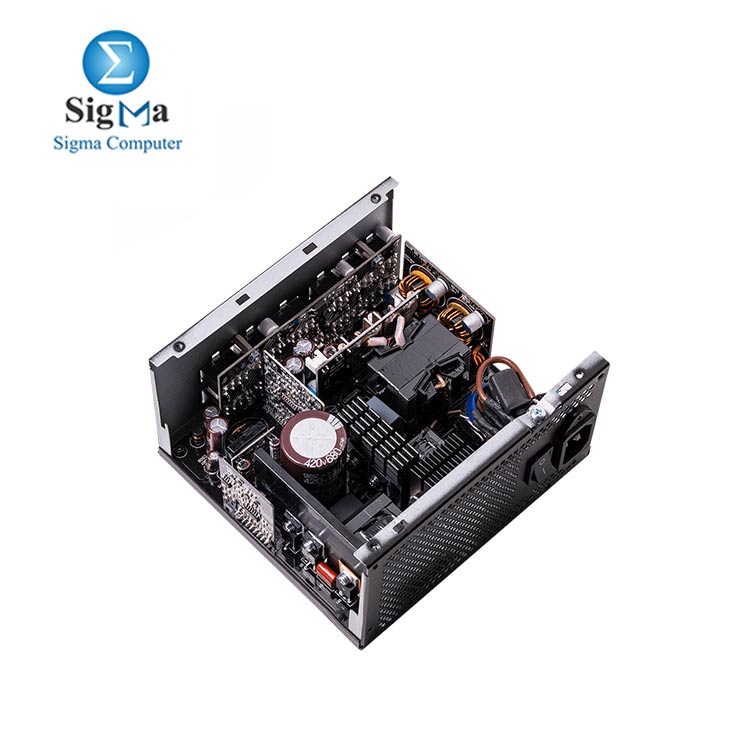

XPG CORE REACTOR 650W PS 80 Plus Gold | 2950 EGP

XPG CORE REACTOR 650W PS 80 Plus Gold

2950 LE
shipped by (sigma)
Point: 25

Brand : XPG brand

Seller : sigma

Viewed : 6628 items

80 Plus Gold Certified.
*Compact with Modular Design.
*Intelligent, Low-Noise Fan-Curve.
*Premium 100% Japanese Capacitors with 105c tolerance
*Industrial-Grade Protection.
*Cybenetics LAMBA / ETA Certified.
*Single Rail @54.1A
*EPS Connector x 1
*SATA Connector x 12
*PCI-E Connector (6+2pin) x 4
*12cm fan, 2400 RPM, FDB Bearing, 11.2dB(A) @50% load
*Intelligent Fan-Curve start with 3.3v @660RPM
*Compact and Modular.
*OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP

PSU Specifications
Dimension (W x L x H) 150 x 140 x 86mm
80 PLUS Rating GOLD
ATX Version Intel 1.42
Protections OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification CB / TUV / cTUVus / CCC / CE / FCC(IC) / BSMI / RCM / KC / NOM
PFC 0.99
Input Voltage 100V-240V
Input Current 10A-5A
Input Frequency 47Hz-63Hz
Operating Temperature 50℃
Fan Size 12cm
Fan Bearing FDB
Fan Speed 2400
Noise Level @ 20% 11.2dB(A)
Noise Level @ 50% 850W : 11.3dB(A) / 750W : 11.3dB(A) / 650W : 11.2dB(A)
Noise Level @ 100% 850W : 24.7dB(A) / 750W : 22.7dB(A) / 650W : 22.3dB(A)
MTBF 100K hours at full load
ATX 24 Pin Connector 1
EPS 8 (4+4) Pin Connector 850W : 2 / 750W : 2 / 650W : 2
SATA Connector 12
Peripheral 4 Pin Connector 4
PCI-E 6+2 Pin Connector 850W : 6 / 750W : 6 / 650W : 4
CategoryDesktop
SubcategoryPower Supply
BrandXPG
ModelCORE REACTOR 650W
POWER OF SUPPLY POWER650W
EFFICIENCY RATING80+ Gold
MODULARNon
