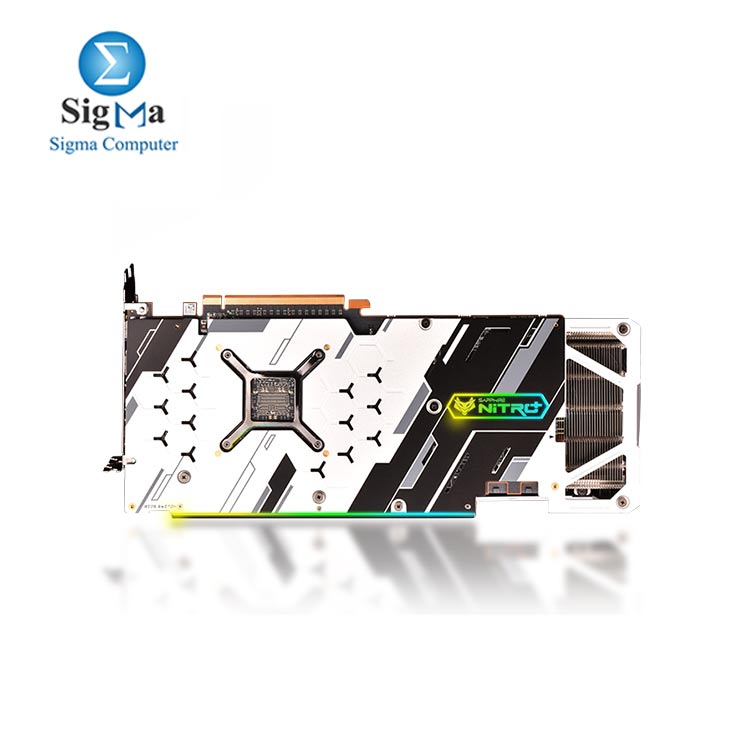

SAPPHIRE NITRO+ RX 5700 XT OC 8G GDDR6 | 8600 EGP

SAPPHIRE NITRO RX 5700 XT OC 8G GDDR6

8600 LE
shipped by (sigma)
Point: 100

Brand : Sapphire brand

Model : RX 5700 XT

Seller : sigma

Viewed : 3446 items

GPU: Boost Clock: Up to 2010 MHz
Memory:   8GB/256 bit GDDR6. 14 Gbps Effective
Stream Processors: 2560
4K@120Hz
Tri-X Cooling Technology

GPU
Radeon™ RX 5700 Graphics
2nd Gen 7nm GPU
RDNA Architecture
Engine Clock
Boost Clock: Up to 2010MHz
Game Clock: Up to 1905 MHz
Base Clock: 1770 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors
2560
Memory Size/Bus
8GB/256 bit GDDR6
Memory Clock
14 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 4096×2160@60Hz
DisplayPort1.4: 5120×2880@60Hz
Interface
PCI-Express 4.0

Output
2x HDMI
2x DisplayPort


BIOS Support
Dual UEFI
API
Vulkan®
OpenGL® 4.6
OpenCL 2.0
DirectX® 12
Shader Model 6.4
Game Index
Extreme 1440P
Sapphire Features
TriXX Supported
TriXX Boost
Software BIOS Switch
Max Boost
Power Design
ARGB LED Logo, Lightstrip & Backplate Logo
Optional Fan Glow ARGB  support
NITRO Glow
Fan Check
Free Flow
VR Friendly
Intelligent Fan Control
Precision fan control
Robust VRM Cooling
Robust Memory Cooling
Tri-X Cooling Technology
Backplate (Tough Metal Backplate)
Two-Ball Bearing
Fan Quick Connect
Fuse Protection
Dual BIOS
AMD Features
RDNA Architecture
2nd Gen 7nm GPU
GDDR6 Memory
Power Efficiency
PCI Express 4.0 Support
Video Streaming up to 8K
Display Port 1.4 (HBR3) / DSC
Radeon™ Software
Radeon™ Boost
Radeon™ Image Sharpening
Radeon™ Anti-Lag
AMD FidelityFx
Async Compute
Radeon™ Rays Audio + True Audio Next
Radeon™ FreeSync™ 2 HDR
Radeon™ VR Ready Premium

Cooling
Tri-X Cooling
Triple Fan
Two-Ball Bearing
Form Factor
2.5 slot, ATX

Dimension: 306x 135 x 49 (mm)

Power Consumption
265W
OS
Linux®, Windows®  10, Windows®  7

64bit operating system required

System Requirement
Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply).
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

CategoryDesktop
SubcategoryGraphic Card
BrandSapphire
ModelRX 5700 XT
Graphic CardAMD Graphic RX
GPU memory size(GB)8GB
dram type (DDR)DDR6
