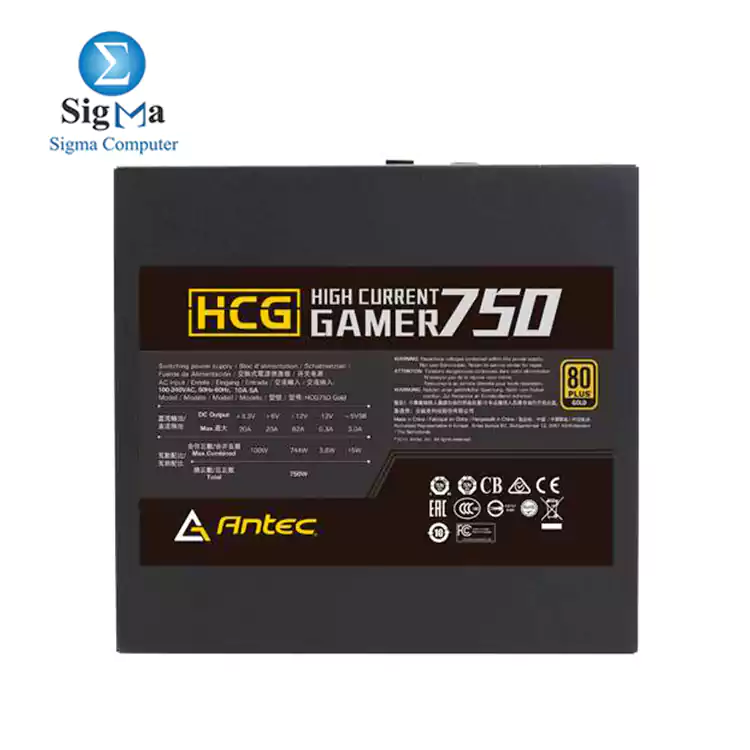

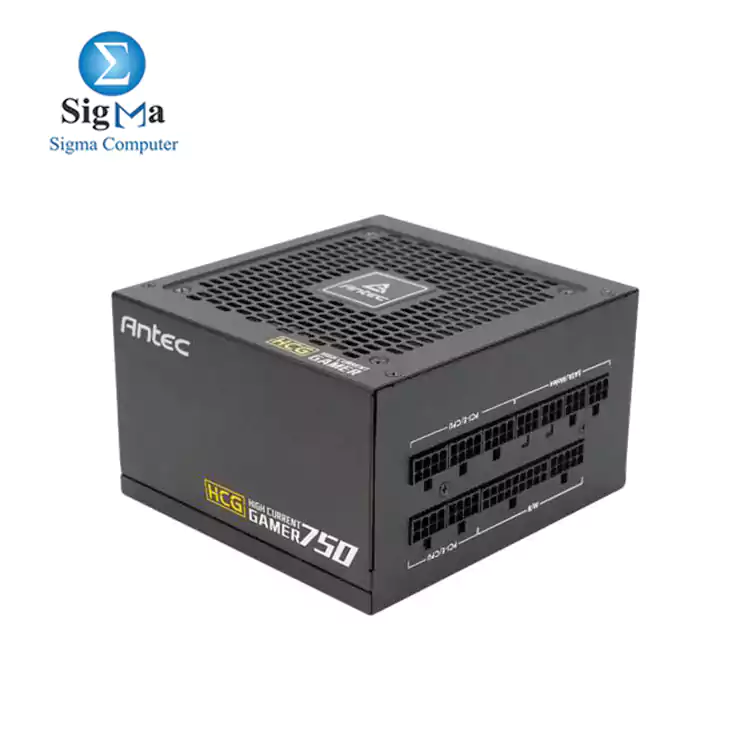

POWER SUPPLY ANTEC-HCG 750W-80+ High Current Gamer Gold-FULL MODULAR | 2350 EGP

POWER SUPPLY ANTEC-HCG 750W-80 High Current Gamer Gold-FULL MODULAR

2350 LE
shipped by (sigma)
Point: 30

Brand : ANTEC brand

Model : HCG 750W

Seller : sigma

Viewed : 4597 items

Guaranteed 750W of Continuous Power from Antec
100% Modular-Improves airflow and reduces clutter
80 PLUS® GOLD certified-Up to 92% efficient, to reduce your electricity bill
PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
Antec Quality 10-year warranty and lifetime global 24/7 support

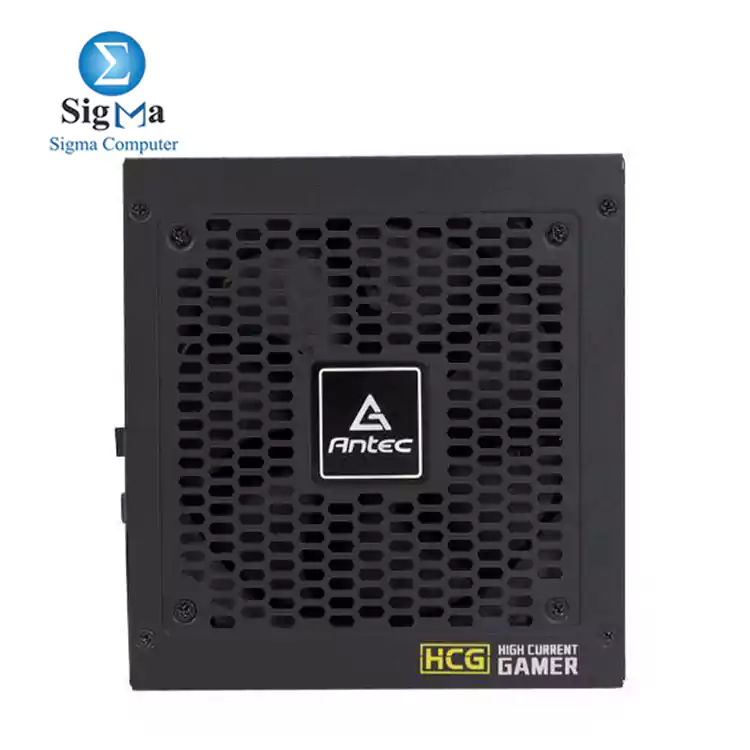

120mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence
99%+12V - Output for maximum CPU & GPU support
CircuitShield™-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
28(18+10) pin MBU socket - For possible future MBU connectors
ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
Compact size 140mm depth power supply is the best choice for compact ATX chassis


Model HCG750 Gold
Type ATX 12V 2.4
Modular Fully Modular
Dimension (W x L x H) 140(L)*150(W)*86(H) mm
Warranty 10 years
Input Voltage 100-240 VAC ±10%
Input Current 10A-5A
Input Frequency Range 50Hz-60Hz
PFC Active PFC (>0.9 typical)
Power Good Signal 100-500ms
Efficiency 92% Typically
Protection OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
Output Capacity 750W
Operation Temperature 0~40°C
Regulatory cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC
Fan 120mm FDB Fan
Certifications 80 Plus Gold

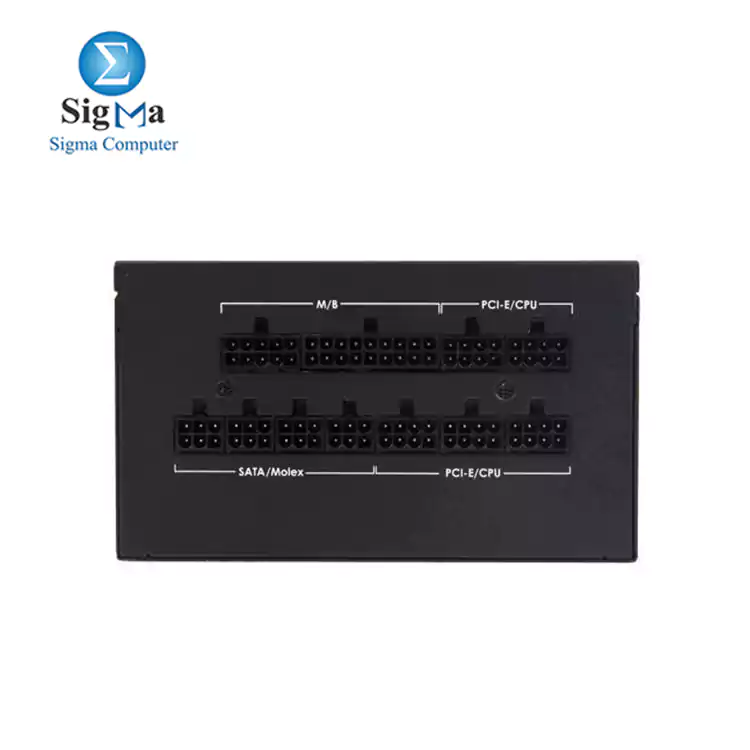

Connector 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
4 x 8(6+2) Pin PCI-E
8 x SATA
3 x Molex
1 x FDD
Net Weight 2.11Kg
Gross Weight 3.42Kg
UPC# 0-761345-11641-1  HCG750 Gold
0-761345-11639-8  HCG750 Gold AU
0-761345-11638-1  HCG750 Gold EC
0-761345-11637-4  HCG750 Gold GB
0-761345-11636-7  HCG750 Gold JP
CategoryDesktop
SubcategoryPower Supply
BrandANTEC
ModelHCG 750W
POWER OF SUPPLY POWER750W
EFFICIENCY RATING80+
MODULARFull
