COUGAR GEX 850W 80Plus Gold Certified POWER SUPPLY | 2300 EGP

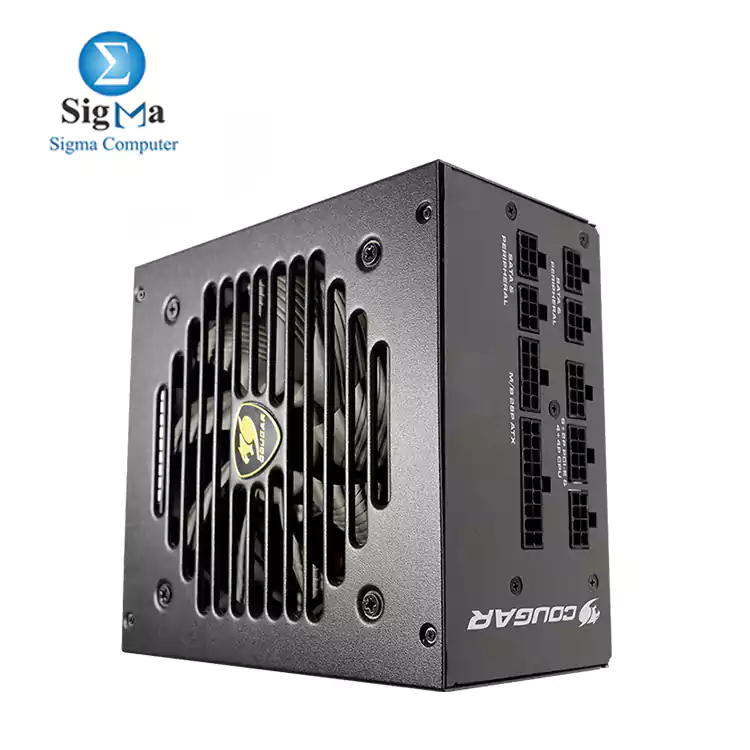

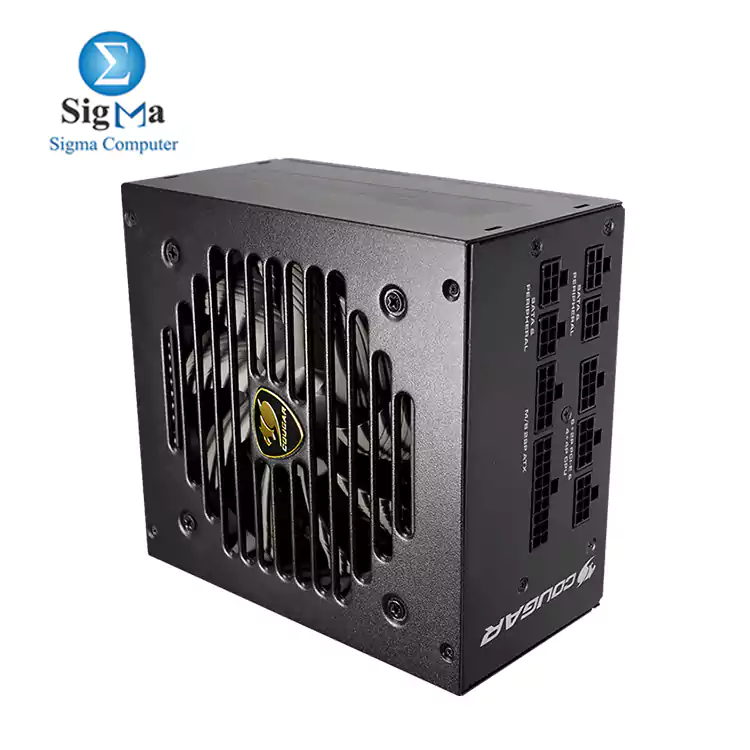

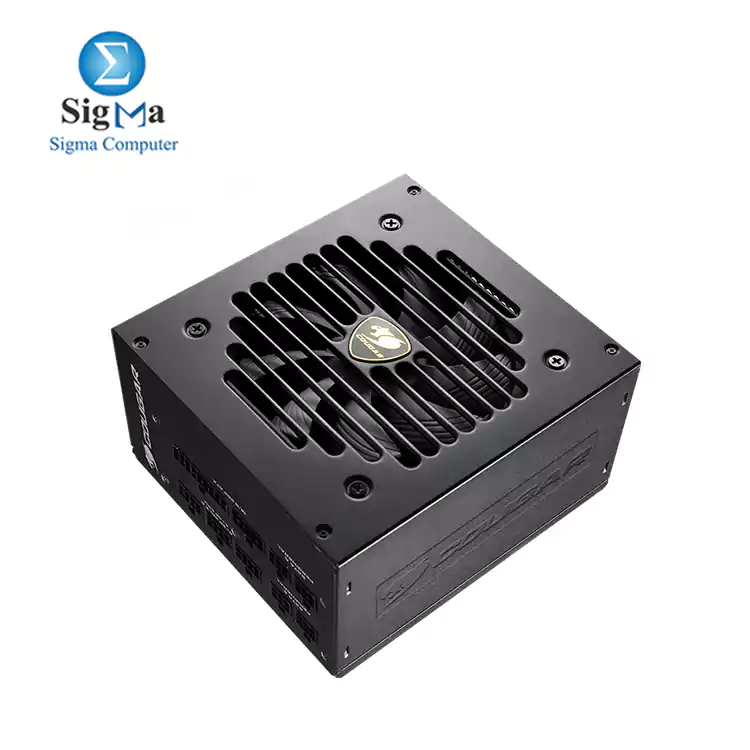

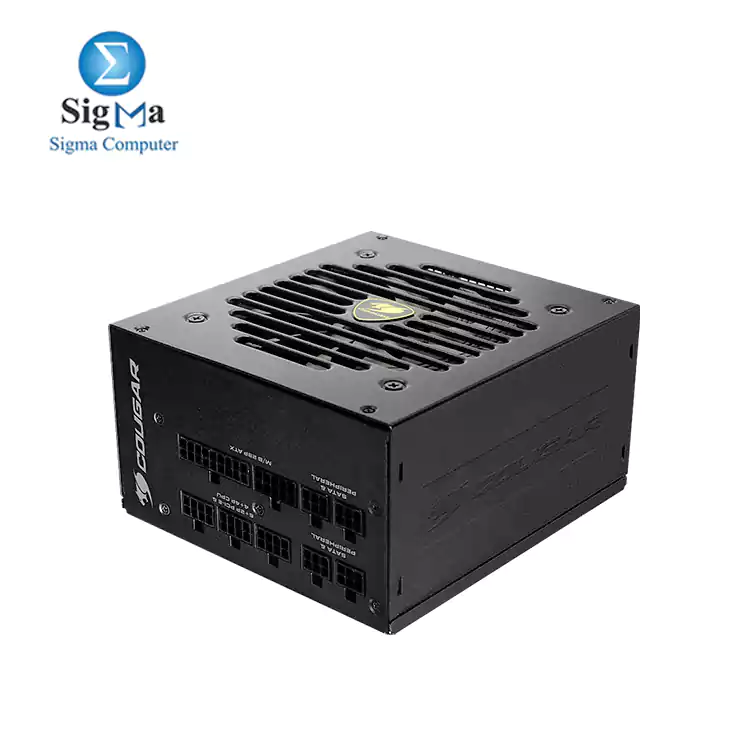

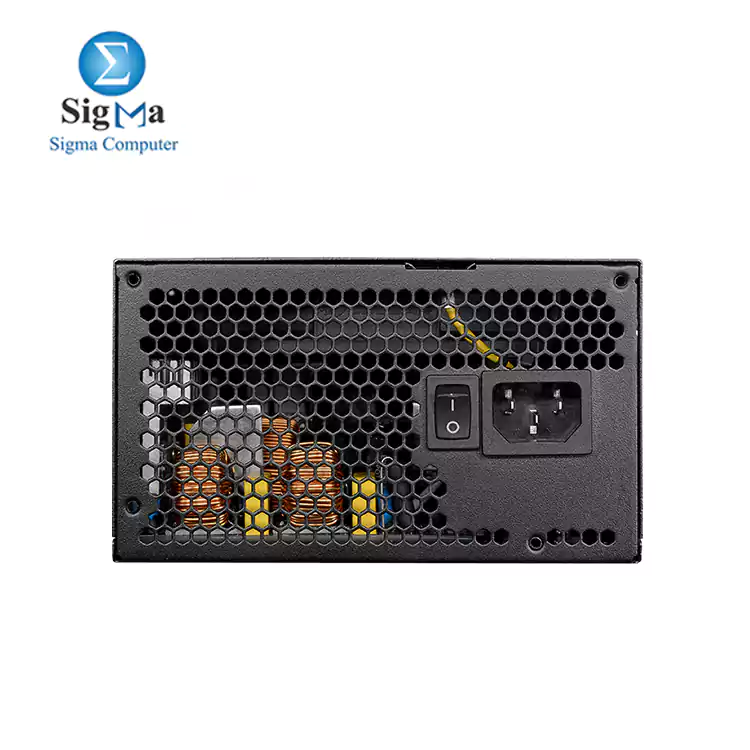

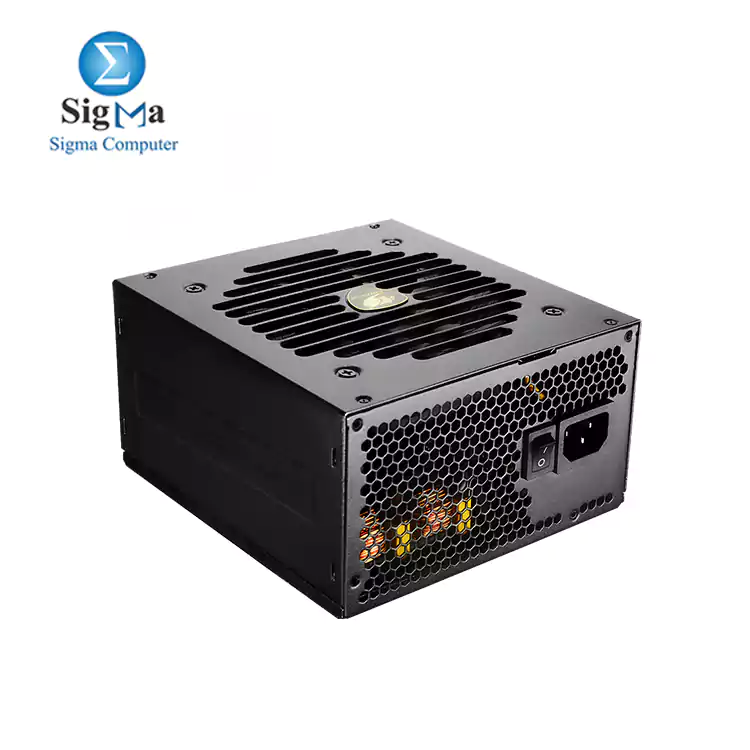

COUGAR GEX 850W 80Plus Gold Certified POWER SUPPLY

2300 LE
shipped by (sigma)
Point: 50

Brand : COUGAR brand

Model : GEX

Seller : sigma

Viewed : 4700 items

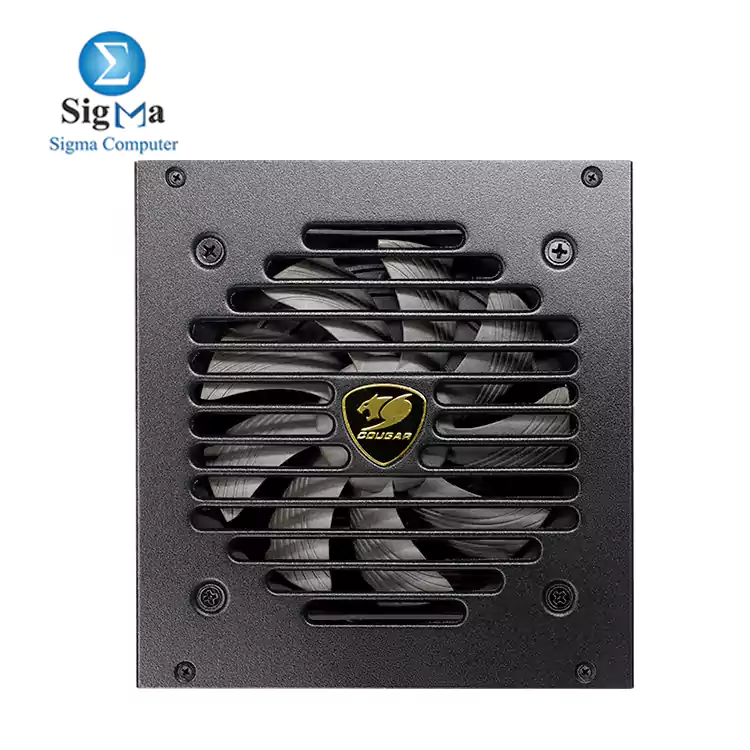

Extreme Cooling System: Using COUGAR’s exclusive 120 mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.
Durability: Firstly, GEX has been designed and thoroughly tested to perform optimally in 40ºC working temperature environments. Second, it includes 105°C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.
Stability: GEX’s LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 3% voltage regulation to deliver a stable operation.
Compact: Flat and long modular cables for better airflow and a tidier case. 100% external cable management: get less cable clutter and a cleaner build!
Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP - Maximum safety for your key system components
Dimension: 160 x 150 x 86 (mm)
80 PLUS Gold Certified: Up to 91% efficiency power conversion to cut down your electricity bill.
COUGAR HDB Fan: Hydro Dynamic Bearing Fan: Extended durability and lower noise levels.
Flawless Operation at 40°C: Powerful performance at 40°C ambient temperature.

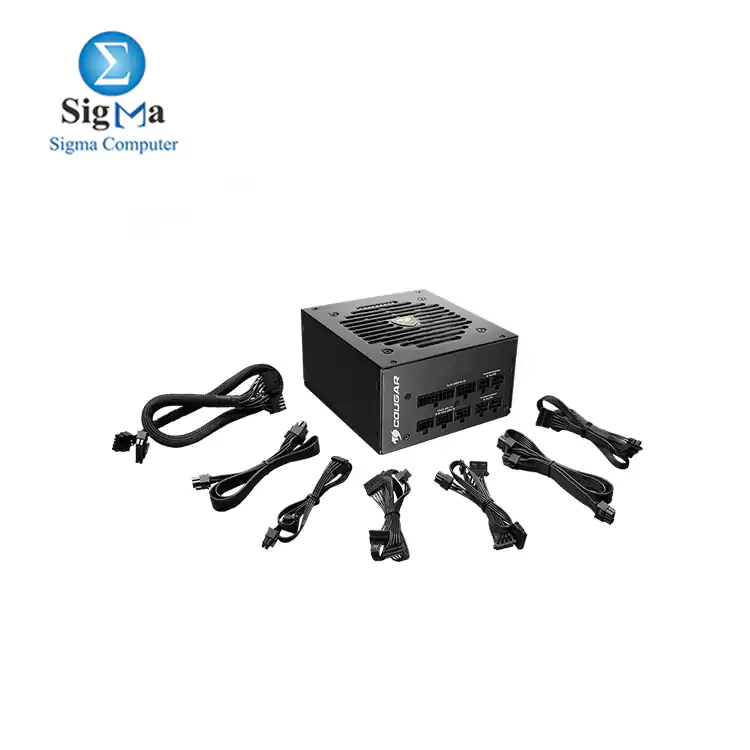

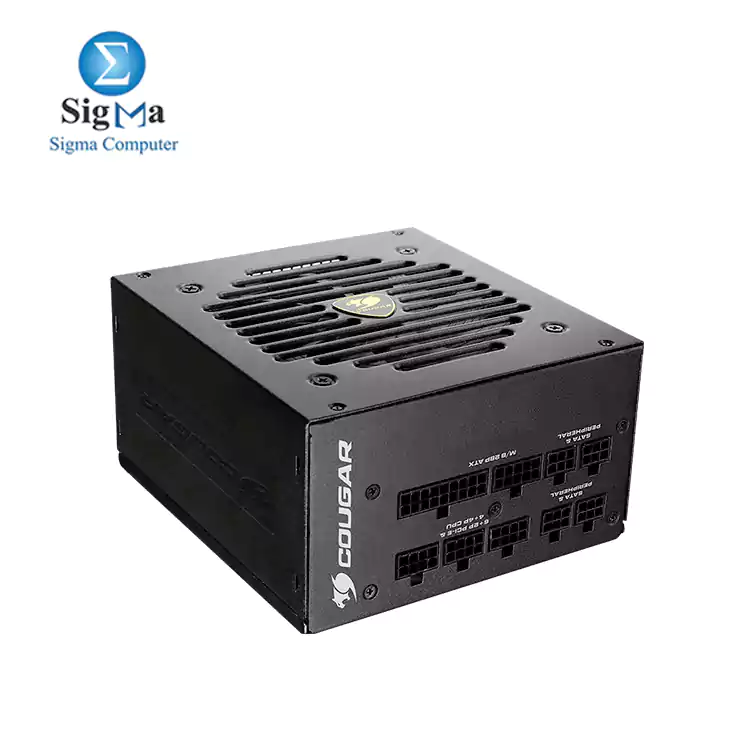

Fully Modular Power Supply Unit: Connect only the cables you need for less clutter and better airflow.

Model Name AC Input DC output
+3.3V +5V +12V -12V +5Vsb Total
GEX850 AC100-240V
50-60Hz 12-6A 20A 20A 70.8A 0.3A 3A 850W

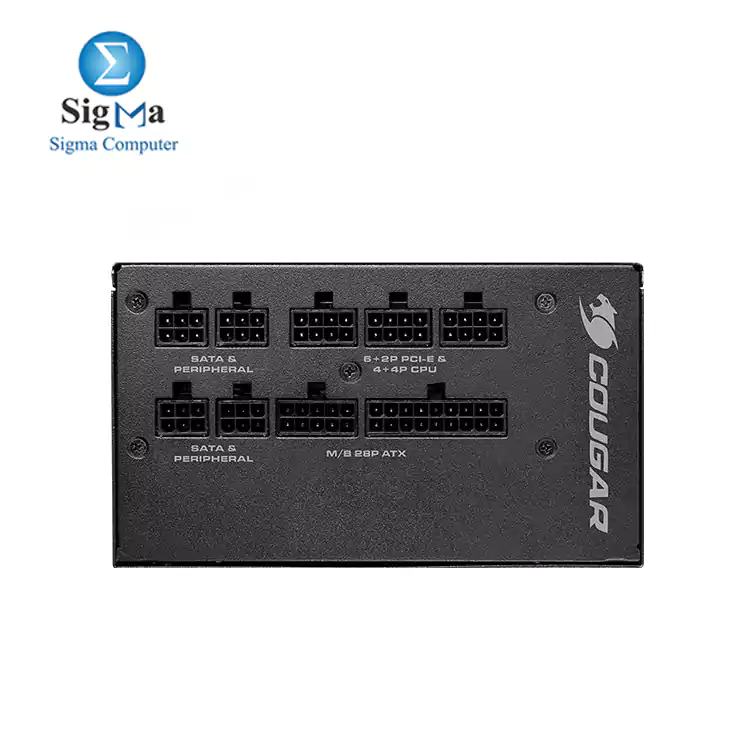

Connector Main CPU Peripherals S-ATA PCI-E
GEX850        1 2 6          8 6
Packing Data
Product Number (P/N)    31GE085001P01
EAN CODE          4710483770234
EAN CODE (UK)            4710483771132
UPC CODE                   192554001746
JAN CODE            4541995034312
ndividual Size W/O
Packaging (LxWxH) 160 x 150 x 86 (mm)

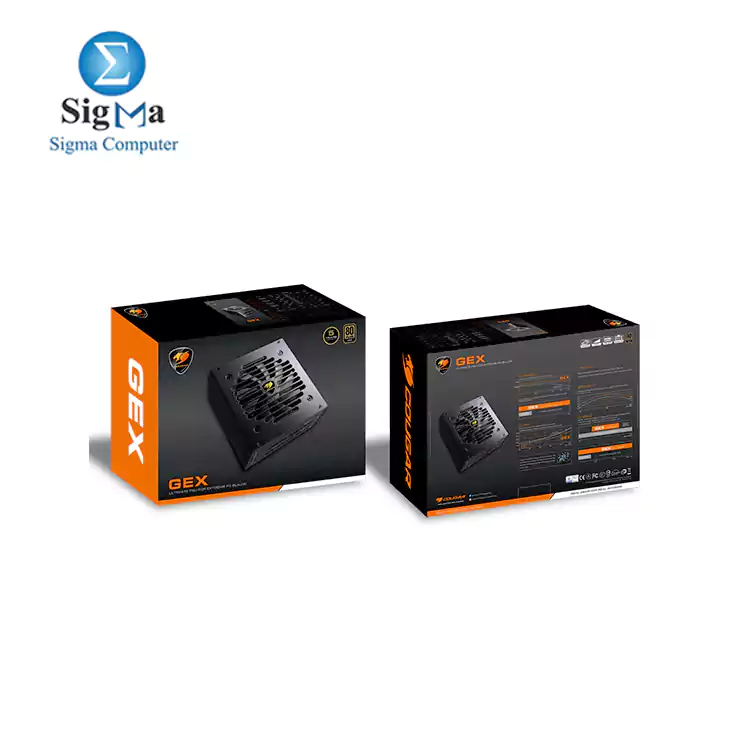

Individual Packaging
Size (LxWxH) 331 X 229 x 107 (mm)
Protection
UVP (Under Voltage Protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OCP (Overcurrent Protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.
SCP (Short-Circuit Protection)
In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.
OVP (Over Voltage Protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
OTP (Over Temperature Protection)
If the temperature gets too high, the PSU automatically switches off.
OPP (Over Power Protection)
If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
CategoryDesktop
SubcategoryPower Supply
BrandCOUGAR
ModelGEX
POWER OF SUPPLY POWER850W
EFFICIENCY RATING80+ Gold
MODULARNon
