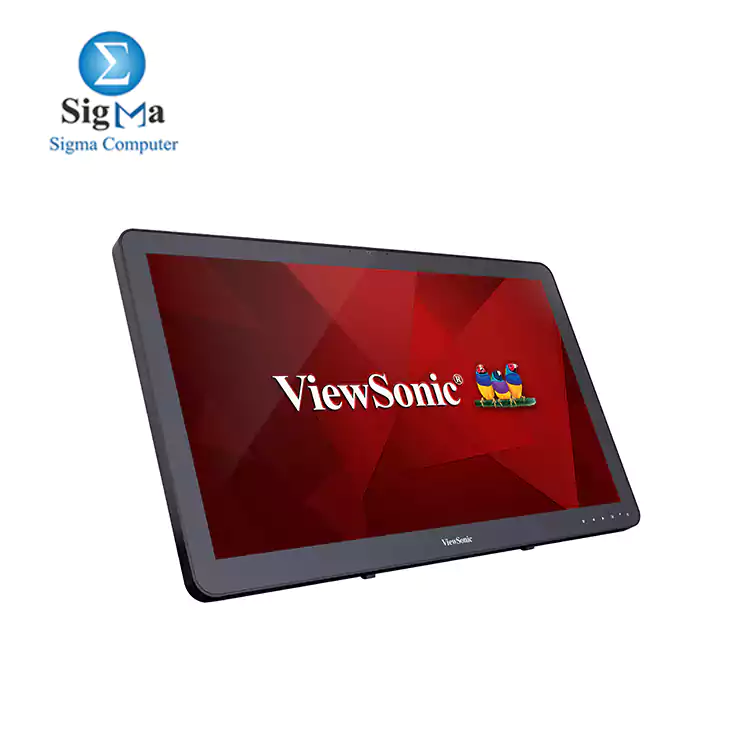

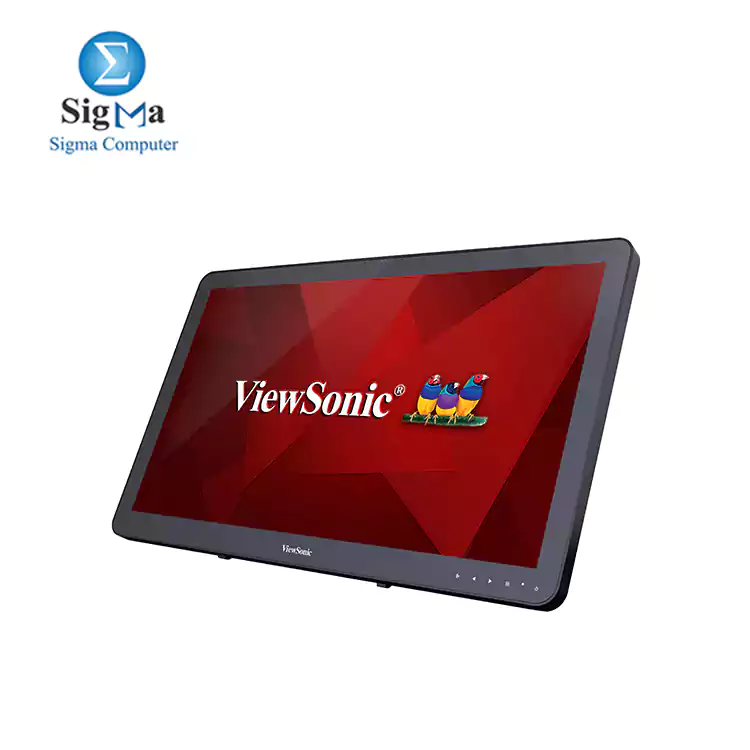

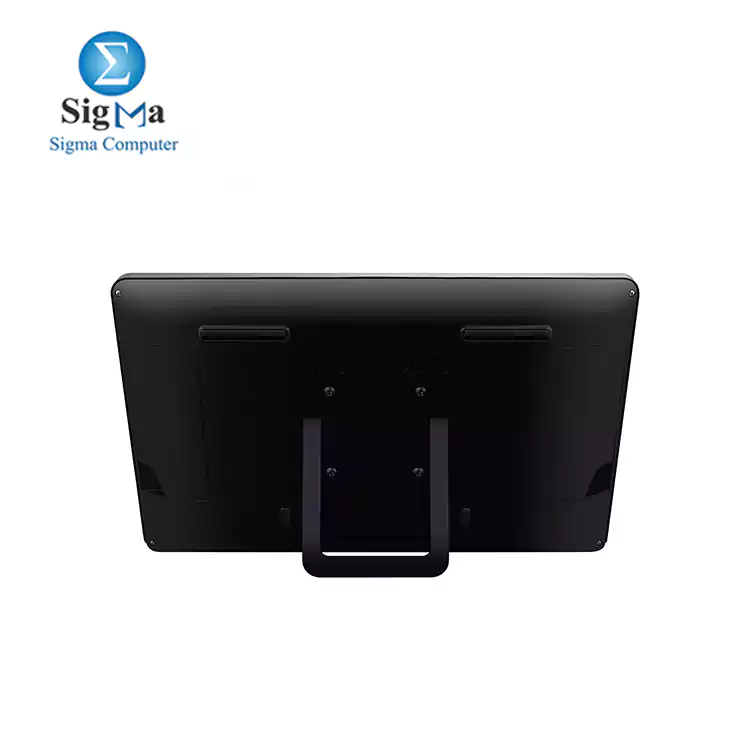

VIEWSONIC TD2430 24 | 5500 EGP

VIEWSONIC TD2430 24

5500 LE
shipped by (sigma)
Point: 100

Brand : VIEWSONIC brand

Model : TD2430

Seller : sigma

Viewed : 3595 items

DISPLAY
Monitor Size: 24”W (23.6” Viewable) LCD monitor
Panel Technology: VA TFT LCD
Resolution: Full HD 1920 x 1080
Display Area: 521.28mm (H) x 293.22mm (V)
Aspect Ratio: 16:9
Brightness: 200 cd/m² (Typ) (with touch module)
Contrast Ratio: 3000:1 (Typ)
Dynamic Contrast Ratio: 50,000,000:1
Viewing Angles: 178 degrees / 178 degrees (Typ)
Panel Surface: 7H Scratch Resistant Surface Hardness
Pixel Size: 0.2715(H) x 0.2715(V)


DISPLAY
Monitor Size: 24”W (23.6” Viewable) LCD monitor
Panel Technology: VA TFT LCD
Resolution: Full HD 1920 x 1080
Display Area: 521.28mm (H) x 293.22mm (V)
Aspect Ratio: 16:9
Brightness: 200 cd/m² (Typ) (with touch module)
Contrast Ratio: 3000:1 (Typ)
Dynamic Contrast Ratio: 50,000,000:1
Viewing Angles: 178 degrees / 178 degrees (Typ)
Panel Surface: 7H Scratch Resistant Surface Hardness
Pixel Size: 0.2715(H) x 0.2715(V)
INPUT SIGNAL
Frequency: Analog: Fh = 24 ~ 82KHz ; Fv = 50 ~ 75Hz
Digital: Fh = 15 ~ 82KHz ; Fv = 24 ~ 75Hz
Sync: Analog: Separate Sync / Composite Sync / Sync on Green
Digital: TMDS, PCI-E
COMPATIBILITY
PC: Display: Windows 10 certified
Touch Module: Windows 7/8/10 supported, Windows 10 certified
Mac®: Display: Power Mac tested
Touch Module: iOS not support
Others: Linux: Linux 2.6.38 or later version supported, Ubuntu 14.04.13 tested
Android: Android 4.0 or later version supported, Android 4.0, Android 5.0 tested

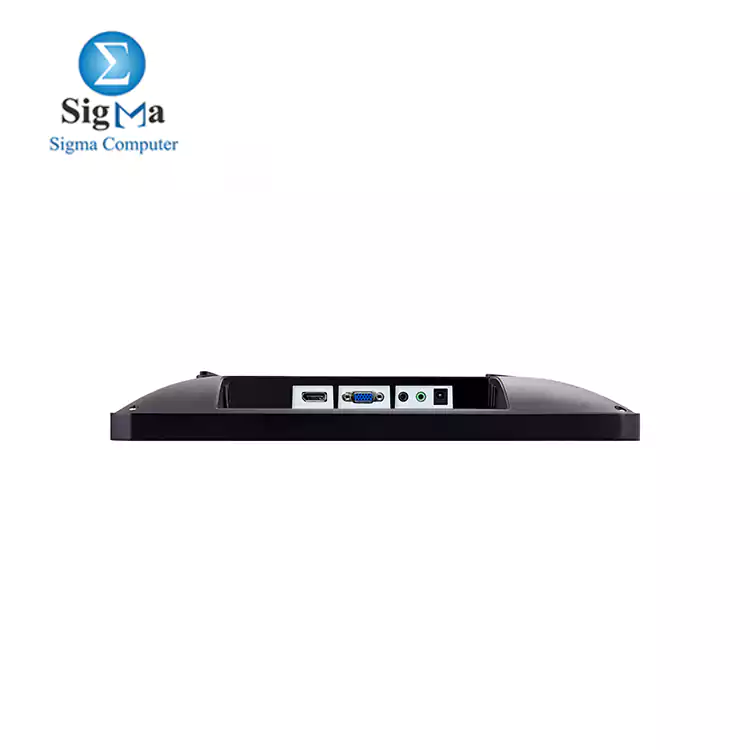

CONNECTOR
Input: VGA x 1
HDMI x 1 (v1.4 compatible)
DisplayPort x 1 (v1.2 compatible)
Output: Earphone out x 1 (3.5mm plug)
AUDIO
Speaker: 2.5W x 2

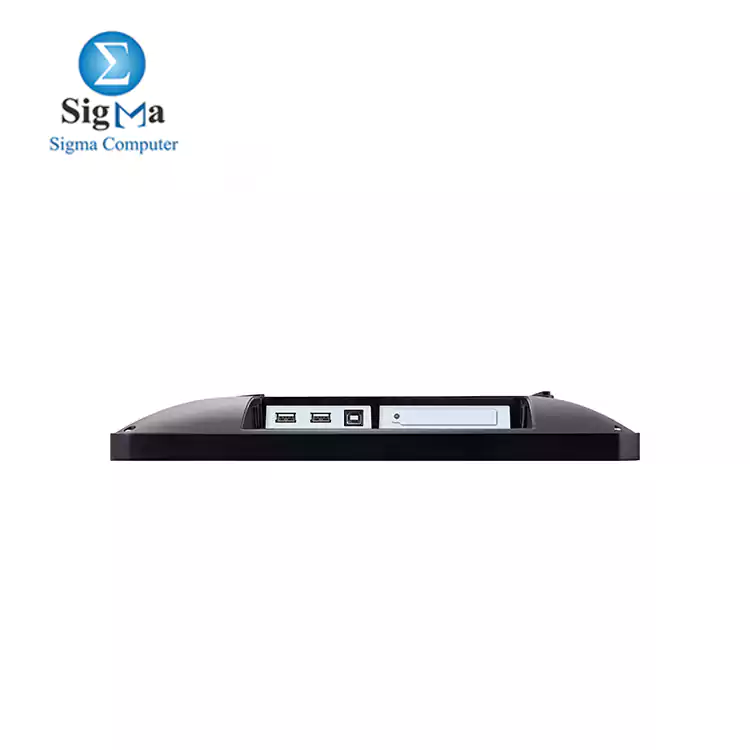

USB
Upstream: USB3.0 Type B x 1
Downstream: USB3.0 Type A x 2
POWER
Power: 5.5 x 2.5 x 12 mm DC connector
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 25W
Optimise: 22W
Conserve: 19W

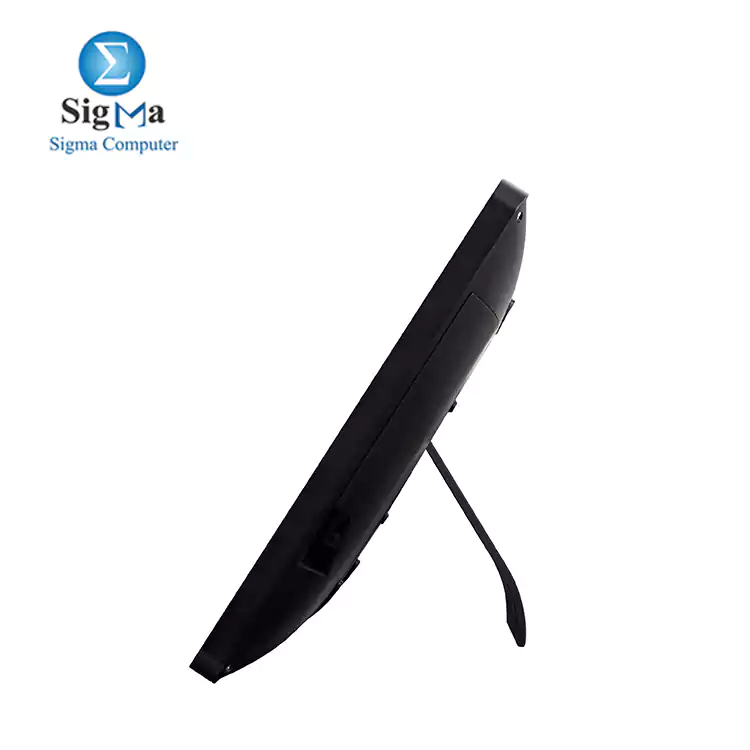

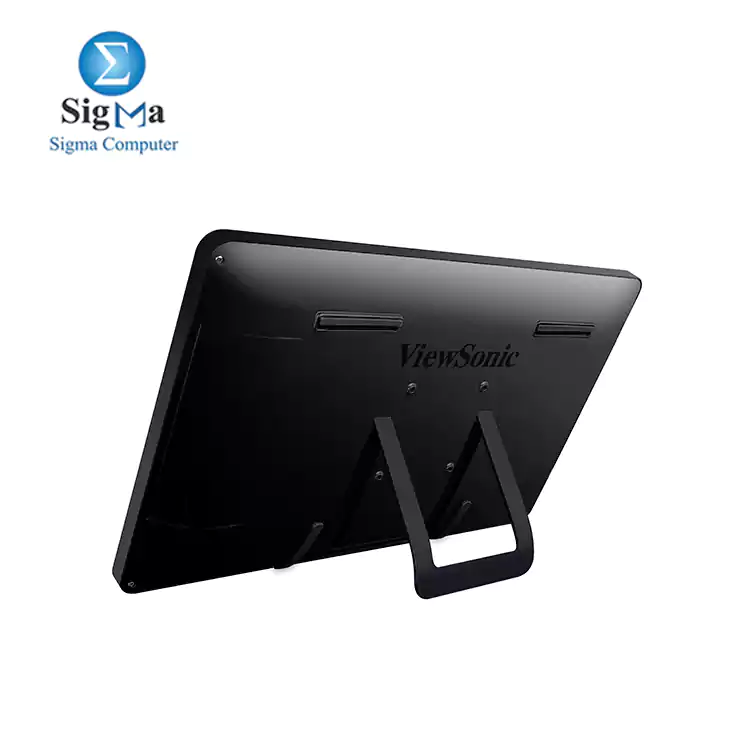

ERGONOMICS
Tilt: 20 ± 2 ~ 53 ± 2, 90 (Flat) degrees
WALL MOUNT
VESA®: 100mm x 100mm
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation)
DIMENSIONS (W x H x D) (mm)
Physical with stand (mm): 573mm (W) x 353mm (H) x 47mm (D) (@0 degree)
573mm (W) x 339mm (H) x 147mm (D) (@20 degrees)
573mm (W) x 218mm (H) x 314mm (D) (@55 degrees)
Physical without stand (mm): 573mm (W) x 353mm (H) x 47mm (D)
Packaging (mm): 643mm (W) x 435mm (H) x 140mm (D)
WEIGHT
Net with stand: 5.51kg
Net without stand: 5.51kg
Gross: 7.08kg
REGULATIONS
cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, CCC, China RoHS, China Energy Label
PACKAGE CONTENTS
LCD Display
AC/DC Adapter
Power Cable (1.5m)
HDMI Cable (1.5m)
USB3.0 Upstream Cable (1.5m)
Audio Cable (1.5m)
Quick Start Guide

CategoryMonitors
BrandVIEWSONIC
ModelTD2430
Display ResolutionFull HD, FHD - 1920 x 1080
Screen size24 Inch
panel typeVA (Vertical Alignment)
Response Timeunknown
3 years
Refresh Rate60Hz
FLAT / CURVEDFLAT
NO
Yes
Flicker-freeYes
Signal InputVGA\DVI-D\HDMI
SYNC TECHNOLOGY g sync
NO
speakerYes
AudioYES

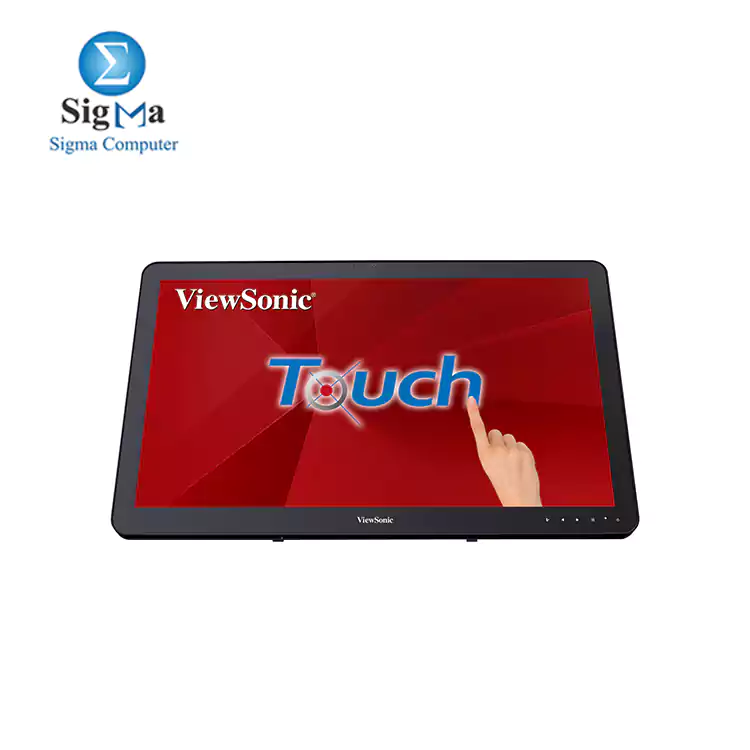

Touch ScreenYES
