CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Z590
Memory
4 x DIMM, Max. 128GB, DDR4
5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x HDMITM 2.0**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs**
* Graphics specifications may vary between CPU types.
** Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
Expansion Slots
2 x PCIe 4.0/3.0 x16 slot(s)
- Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 mode(s)
- Intel® 10th Core™ processors support PCIe 3.0 x16 or x8/x8 mode(s)
Intel® Z590 Chipset
1 x PCIe 3.0 x4 slot*
* PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode.
Multi-GPU Support
NVIDIA 2-Way SLI® Technology*
*Support varies with different graphics cards
Storage
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th &10th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel® 11th Core™ processors support PCIe 4.0 x4 mode
- Intel® 10th Core™ processors support PCIe 3.0 x4 mode
M.2_2 slot (Key M), type 2242/2260/2280
- Intel® 11th Core™ processors support PCIe 4.0 x4 mode
- Intel® 10th Core™ processors support PCIe 3.0 x4 mode
M.2_3 slot (Key M), type 2242/2260/2280
- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*
6 x SATA 6Gb/s ports
Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
* DIMM.2_2 shares bandwidth with SATA6G_34 and DIMM.2_2 is default set at x2 mode.
Ethernet
1 x Intel® I225-V 2.5Gb Ethernet
1 x Marvell® AQtion AQC113CS 10Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Intel® Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later.
** Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or later.
USB
Rear USB (Total 10 ports)
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
8 x USB 3.2 Gen 2 port(s) (8 x Type-A)
Front USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®
1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C®
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- ESS® SABRE9018Q2C DAC/AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Audio cover

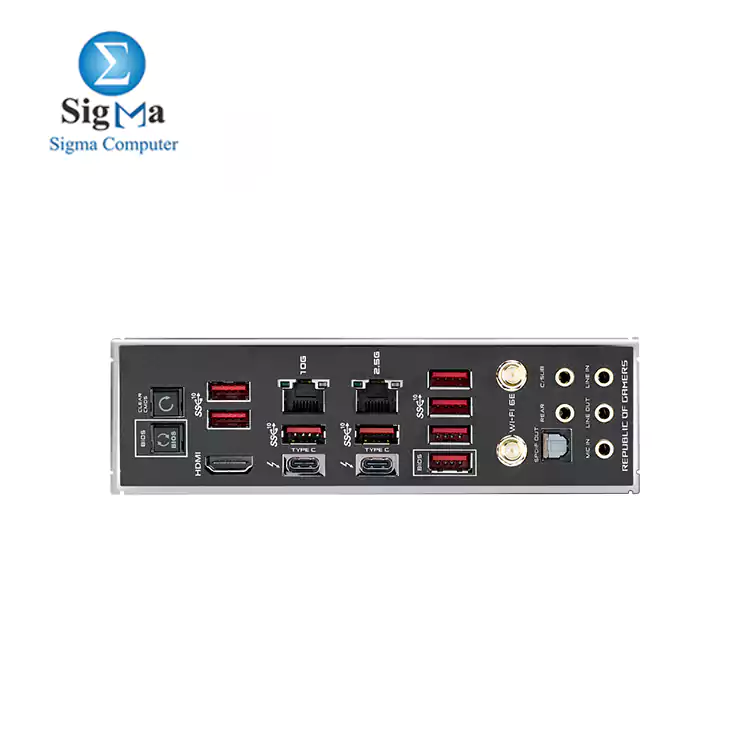

Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® port(s)
8 x USB 3.2 Gen 2 port(s) (8 x Type-A)
1 x HDMI™ port
1 x ASUS Wi-Fi Module
1 x Marvell® AQtion AQC113CS 10Gb Ethernet
1 x Intel® I225-V 2.5Gb Ethernet
5 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Intrernal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
2 x 4-pin Chassis Fan header(s)
2 x 4-pin Radiator Fan header(s)
2 x W_PUMP+ header(s)
1 x WB_SENSOR header(s)
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen Gen 2 connector (support(s) USB Type-C®)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
8 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Speaker header
1 x Start button
1 x V_LATCH switch
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
Y
Extreme
OC Kit
- FlexKey button
- LN2 Mode
- Probelt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- ROG AURA sync backplate
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
Dual BIOS
OLED 2"
ASUS HYDRANODE
- 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)
- 2 x USB2.0 port support* (USB_EP1,USB_EP3)
* Visit ASUS Website for the latest compatibility list.
Software Features
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
- OLED Display
AI Suite 3
- 5-Way Optimization with AI Overclocking
TPU
EPU
Digi+ Power Control
Fan Xpert 4
Turbo app
- EZ update
AI Charger
DAEMON Tools
MyAsus
WinRAR
UEFI BIOS
MemTest86
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

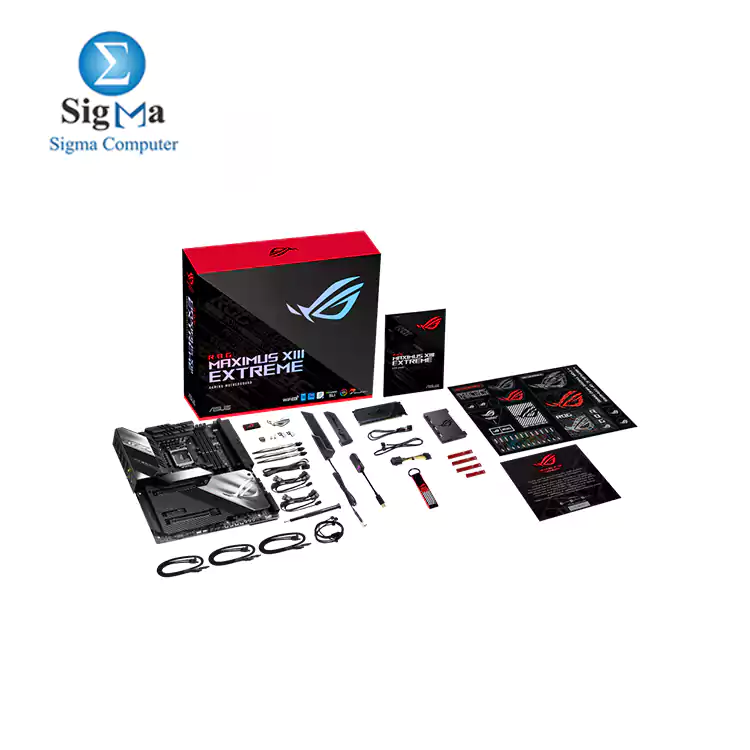

Accessories
Cables
1 x 1-to-3 ARGB splitter cable
2 x 1-to-4 fan splitter cable
1 x RGB extension cable
3 x ROG weave SATA 6G cables
1 x 3-in-1 Thermistor cables pack
ROG Fan Controller
1 x ROG Fan Controller
1 x Fan EXT PWR cable
1 x ARGB input cable
1 x USB input cable
1 x ROG Fan Controller 3M Mounting tape
1 x Fan Controller manual
ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x ROG CLAVIS DAC
1 x ROG key chain
1 x ROG logo plate stickers
1 x ROG screwdriver
1 x ROG stickers
1 x ROG thank you card
1 x ROG Graphics card holder
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User manual
Operating System
Windows® 10 64-bit
Form Factor
EATX Form Factor
12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

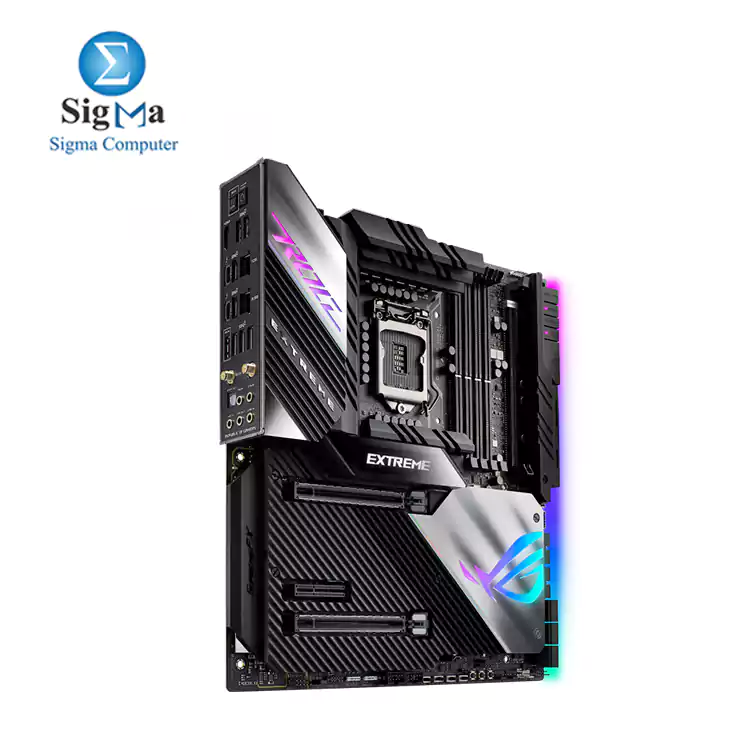

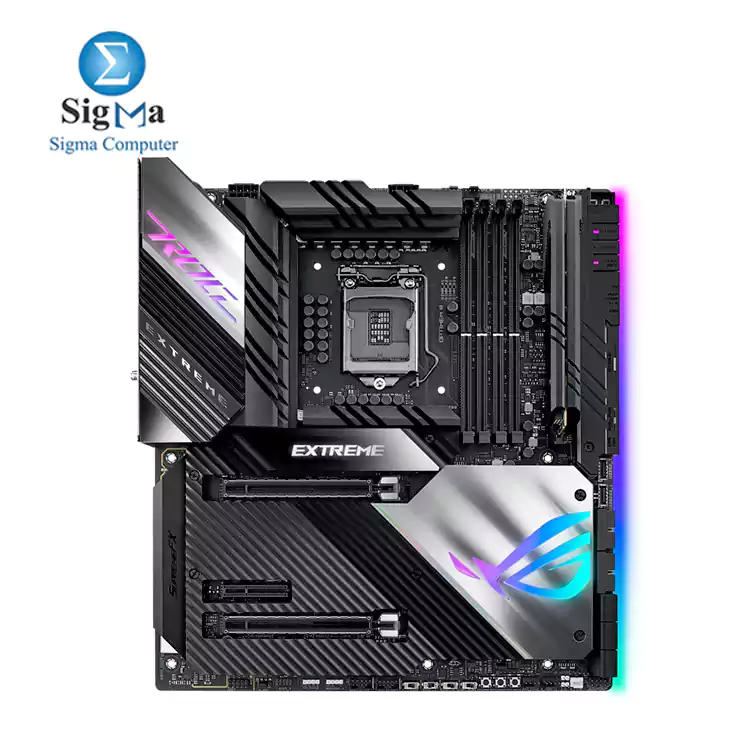

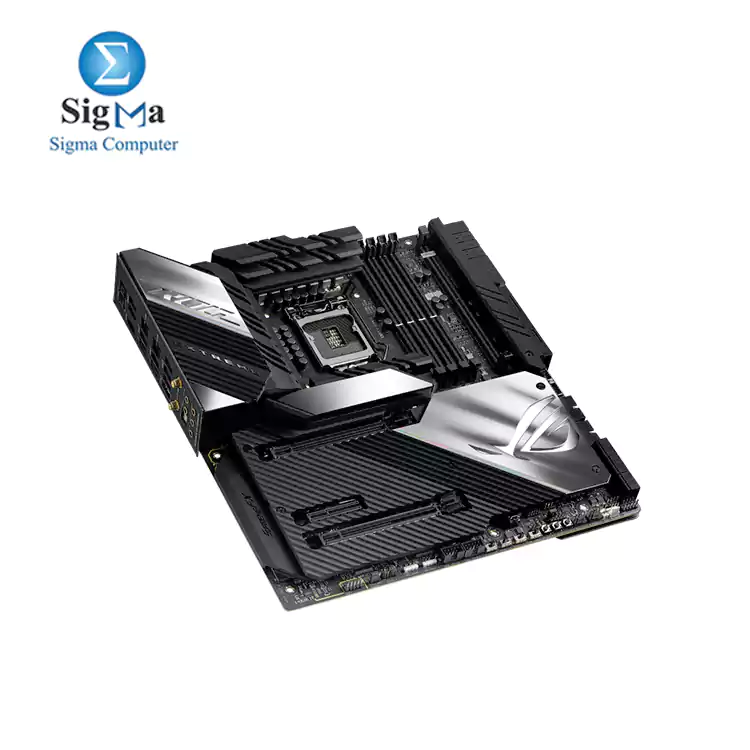

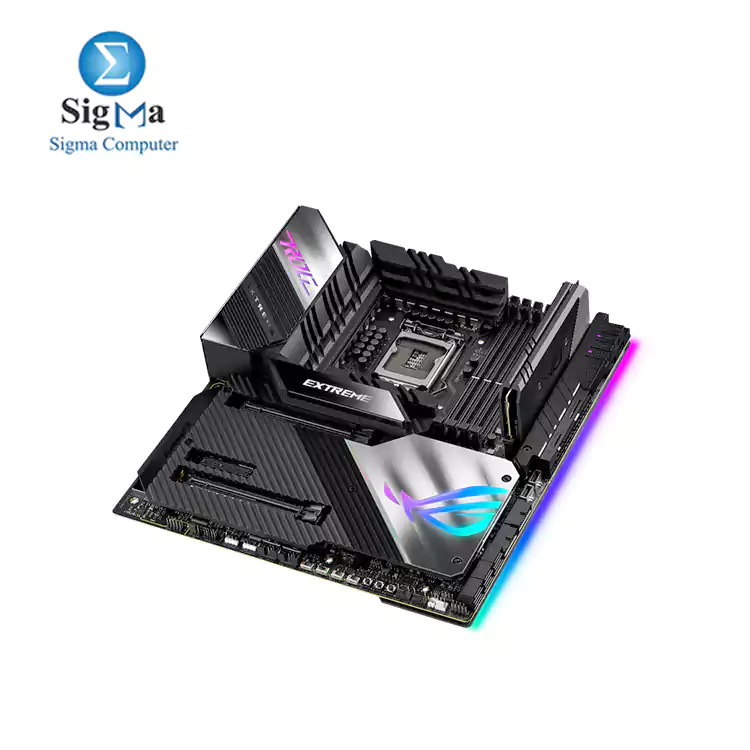

ROG Maximus XIII Extreme
