EVGA 850 GQ, 80+ GOLD 850W, Semi Modular, EVGA ECO Mode Power Supply 210-GQ-0850-V2 | 3100 EGP

EVGA 850 GQ 80 GOLD 850W Semi Modular EVGA ECO Mode Power Supply 210-GQ-0850-V2

3100 LE
shipped by (sigma)
Point: 50

Brand : EVGA brand

Seller : sigma

Viewed : 4458 items

FEATURES
100% Japanese Capacitors ensure long-term reliability
80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
Active Clamp +DC to DC design for efficient operation
Active Power Factor Correction
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
Modular Design to reduce clutter and improve airflow
NVIDIA SLI & AMD Crossfire Ready
Whisper Silent with 135mm Fluid Dynamic Bearing Fan

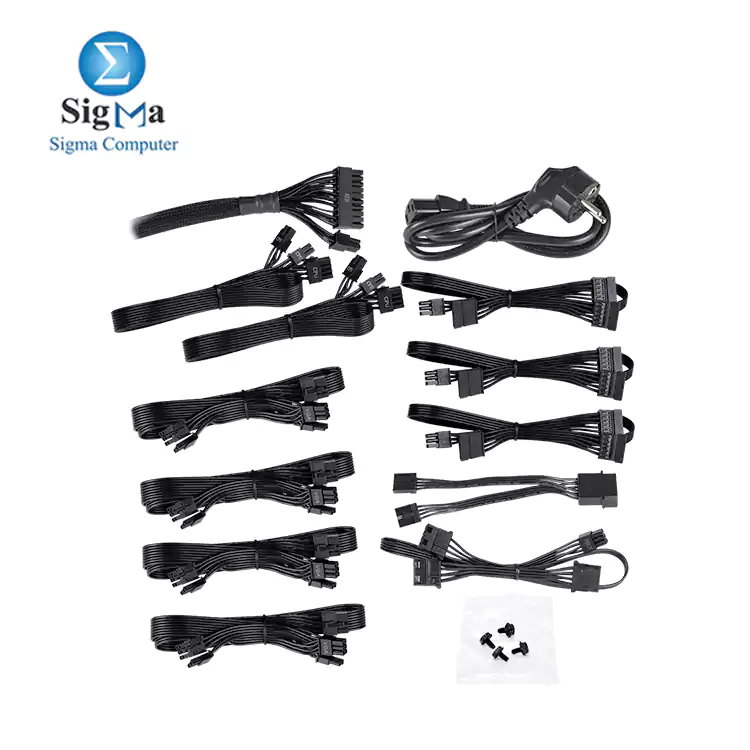

CABLE LENGTH
ATX Cable 1x 600mm (m)
EPS Cable 2x 650mm (m)
PCIe Cable 4x 650mm, 750mm (m)
SATA Cable 3x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm (m)
Floppy Adapter 1x 100mm (m)
AC Power 1x 1530mm (m)
Modular Cable Type Semi-Modular
CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 2x 8pin (4+4)
PCIe 8x 8pin (6+2)
SATA 9x
Four-Pin Peripheral 3x
Floppy 2x
INPUT
Input Voltage 100 - 240 VAC
AC Input 14A
Input Frequency Range 50 - 60 Hz
Efficiency 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
OUTPUT
Rail +3.3V +5V +12V -12V +5Vsb
Max output 24A 24A 70.8A 0.5A 3A
849.6W
120W 849.6W 6W 15W
Total 850W @ +50C
ADDITIONAL DETAILS
Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Net Weight 6 lbs
Size 85mm (H) x 150mm (W) x 180mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 135mm Fluid Dynamic Bearing
UPC 843368035631
EAN 4250812409065
CategoryDesktop
SubcategoryPower Supply
BrandEVGA
Model210-GQ-0850-V2
POWER OF SUPPLY POWER850W
EFFICIENCY RATING80+ Gold
MODULARSemi
