EVGA 650 B5, 80 Plus BRONZE 650W, Fully Modular Compact 150mm Size Power Supply 220-B5-0650-V2 | 1650 EGP

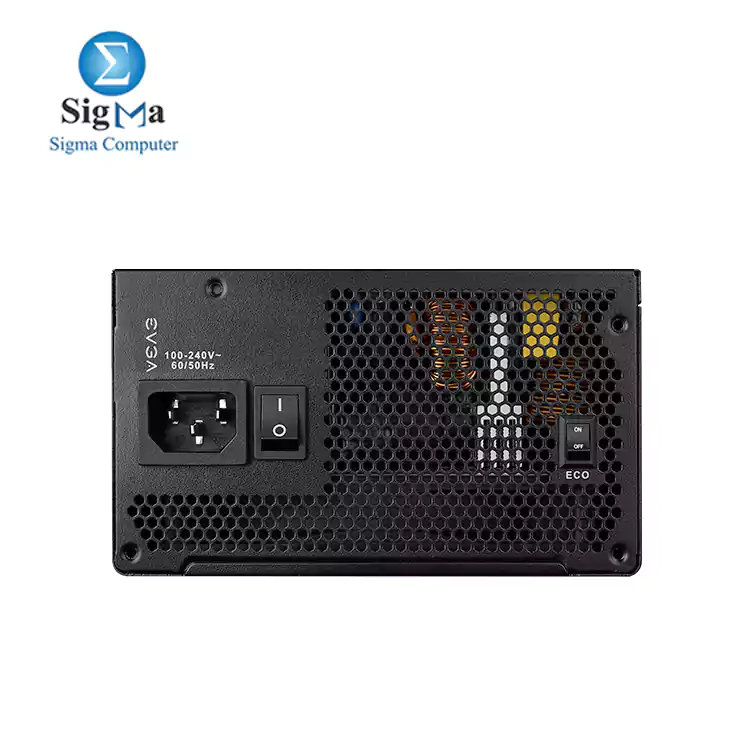

EVGA 650 B5 80 Plus BRONZE 650W Fully Modular Compact 150mm Size Power Supply 220-B5-0650-V2

1650 LE
shipped by (sigma)
Point: 50

Brand : EVGA brand

Seller : sigma

Viewed : 4481 items

80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Fully Modular to reduce clutter and improve airflow
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)


CABLE LENGTH
ATX Cable 1x 600mm (m)
EPS Cable 1x 600mm (m)
PCIe Cable 1x 550mm, 1x 550mm, 700mm (m)
SATA Cable 2x 500mm, 600mm, 700mm (m)
Four-Pin Peripheral Cable 1x 500mm, 600mm, 700mm (m)
Floppy Adapter 1x Molex to FDD Adapter
AC Power 1x 1500mm (m)
Modular Cable Type Full
CONNECTOR QUANTITY
24 Pin ATX 1x 24pin (20+4)
EPS (CPU) 1x 8pin (4+4)
PCIe 3x 8pin (6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x
INPUT
Input Voltage 100-240V~
AC Input 10-5A
Input Frequency Range 60/50Hz
Efficiency 85% or Higher Typical
OUTPUT
Rail +3.3V +5V +12V -12V +5Vsb
Max output 24A 24A 54.1A 0.5A 3.0A
650W
120W 650W 6W 15W
Total 650W
ADDITIONAL DETAILS
Japanese Capacitors Main
ECO Mode Yes
MTBF 100,000 Hours
Net Weight 4 lbs
Size 86mm (H) x 150mm (W) x 150mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 135mm Fluid Dynamic Bearing
UPC 843368064235
EAN 4250812435217
CategoryDesktop
SubcategoryPower Supply
BrandEVGA
Model220-B5-0650-V2
POWER OF SUPPLY POWER650W
EFFICIENCY RATING 80+ Bronze
MODULARFull
