EVGA SuperNOVA 550 GT, 80 Plus Gold 550W, Fully Modular Auto Eco Mode with FDB Fan Compact 150mm Size, Power Supply 220-GT-0550-Y2 | 1999 EGP

EVGA SuperNOVA 550 GT 80 Plus Gold 550W Fully Modular Auto Eco Mode with FDB Fan Compact 150mm Size Power Supply 220-GT-0550-Y2

1999 LE
shipped by (sigma)
Point: 15

Brand : EVGA brand

Model : 550W

Seller : sigma

Viewed : 4339 items

80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
100% Japanese Capacitors ensure long-term reliability
Fully Modular to reduce clutter and improve airflow
Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.

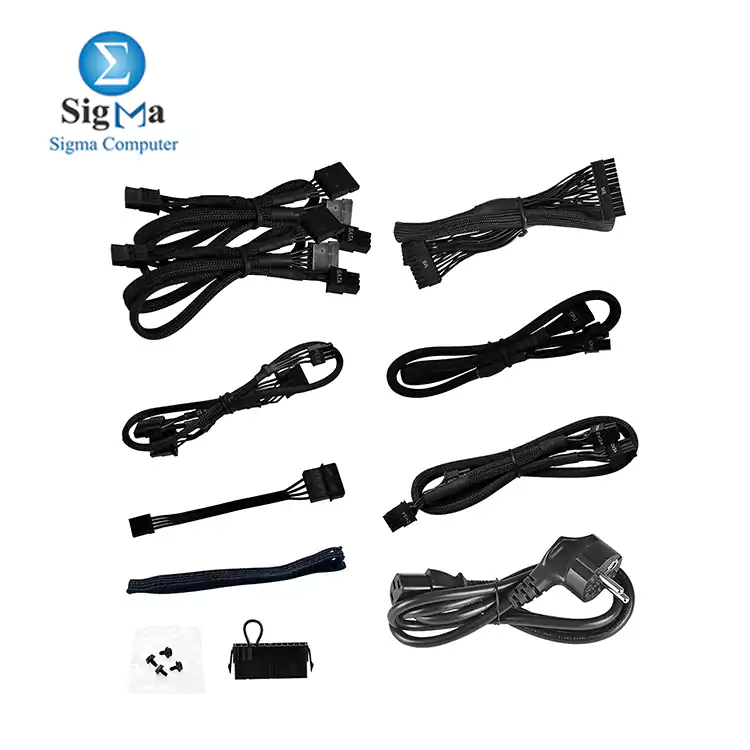

CABLE LENGTH
ATX Cable 1x 600mm (m)
EPS Cable 1x 700mm (m)
PCIe Cable 1x 700mm, 850mm (m)
SATA Cable 2x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm (m)
Floppy Adapter 1x Molex to FDD Adapter
AC Power 1x 1500mm (m)
Modular Cable Type Full

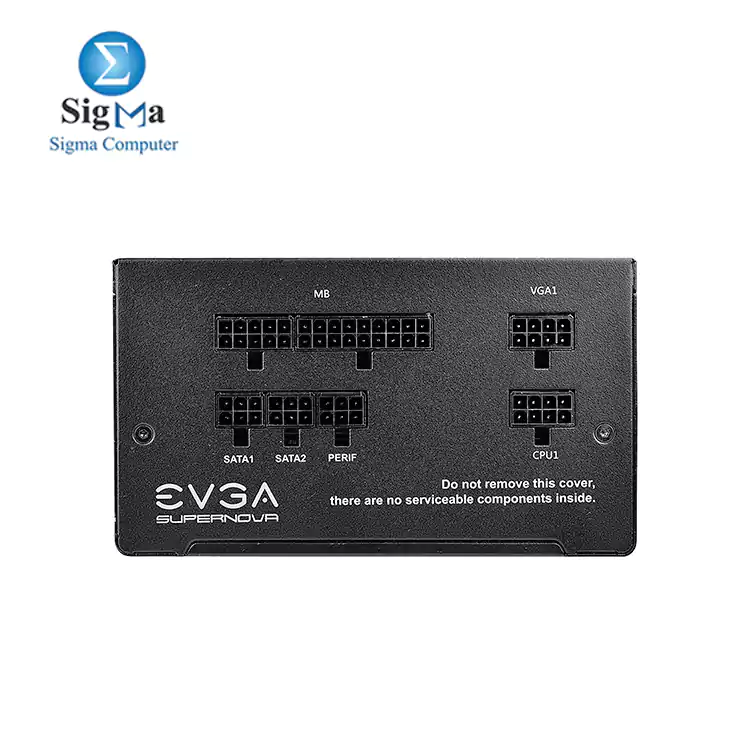

CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 1x 8pin(4+4)
PCIe 2x 8pin(6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x
INPUT
Input Voltage 100-240V~
AC Input 8-4A
Input Frequency Range 60/50 Hz
Efficiency 90% or Higher Typical

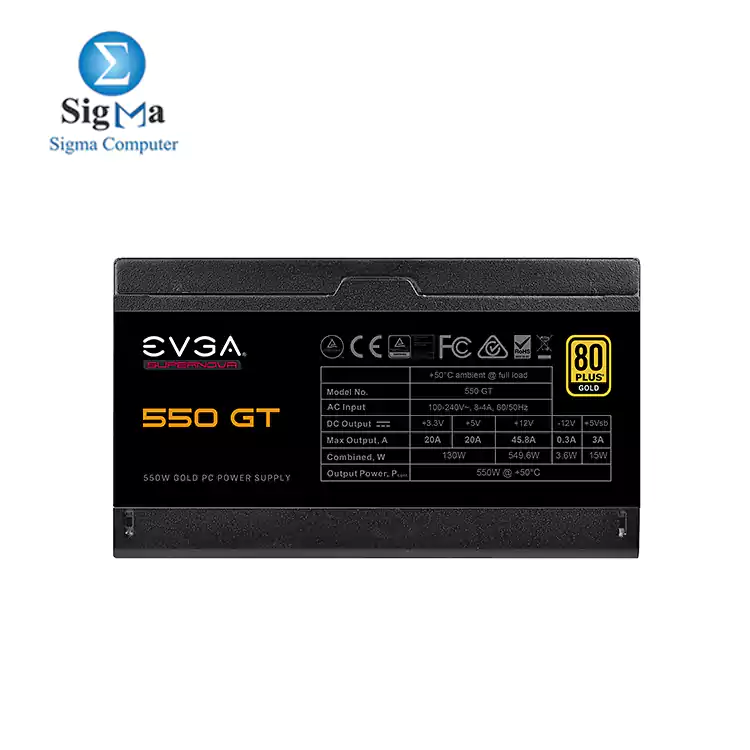

OUTPUT
Rail +3.3V +5V +12V -12V +5Vsb
Max output 20A 20A 45.8A 0.3A 3A
130W 549.6W 3.6W 15W
Total 550W@50°C
ADDITIONAL DETAILS
Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Auto
MTBF 100,000 Hours
Net Weight 5 lbs
Size 86mm (H) x 150mm (W) x 150mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 135mm Fluid Dynamic Bearing
UPC 843368061159
EAN 4250812432469
CategoryDesktop
SubcategoryPower Supply
BrandEVGA
Model550W
POWER OF SUPPLY POWER550W
EFFICIENCY RATING80+ Gold
MODULARFull
