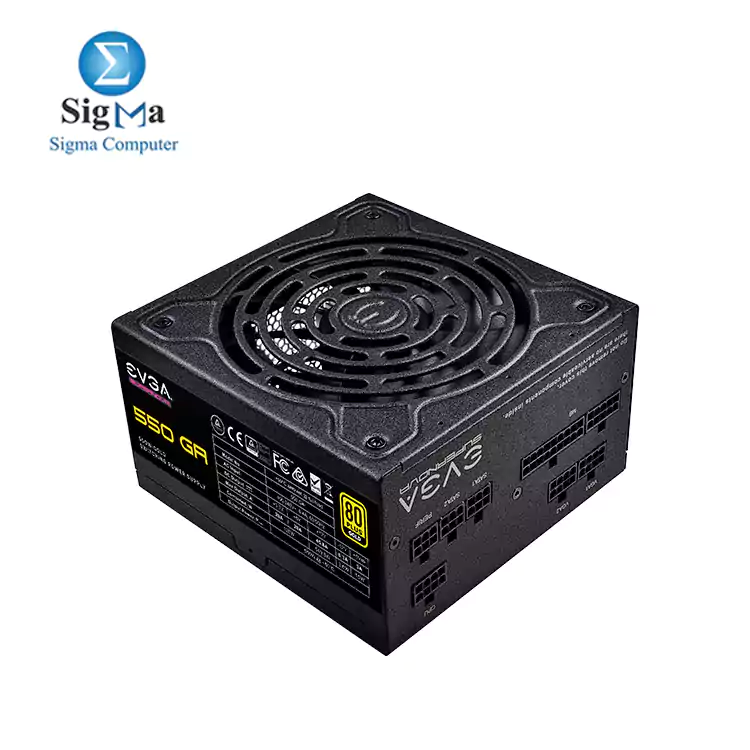

EVGA SuperNOVA 550 GA, 80 Plus Gold 550W, Fully Modular Compact 150mm Size Power Supply 220-GA-0550-X2 | 1925 EGP

EVGA SuperNOVA 550 GA 80 Plus Gold 550W Fully Modular Compact 150mm Size Power Supply 220-GA-0550-X2

1925 LE
shipped by (sigma)
Point: 50

Brand : EVGA brand

Seller : sigma

Viewed : 3472 items

80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
100% Japanese Capacitors ensure long-term reliability
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
Fully Modular to reduce clutter and improve airflow
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
DC-DC Converter improves 3.3V/5V stability
Active Power Factor Correction
Double Ball Bearing fan for exceptional reliability and quiet operation
NVIDIA SLI & AMD Crossfire Ready




CABLE LENGTH
ATX Cable 1x 600mm (m)
EPS Cable 1x 700mm (m)
PCIe Cable 1x 700mm, 1x 700mm, 850mm (m)
SATA Cable 2x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter 1x Molex to FDD Adapter
AC Power 1x 1500mm (m)
Modular Cable Type Full

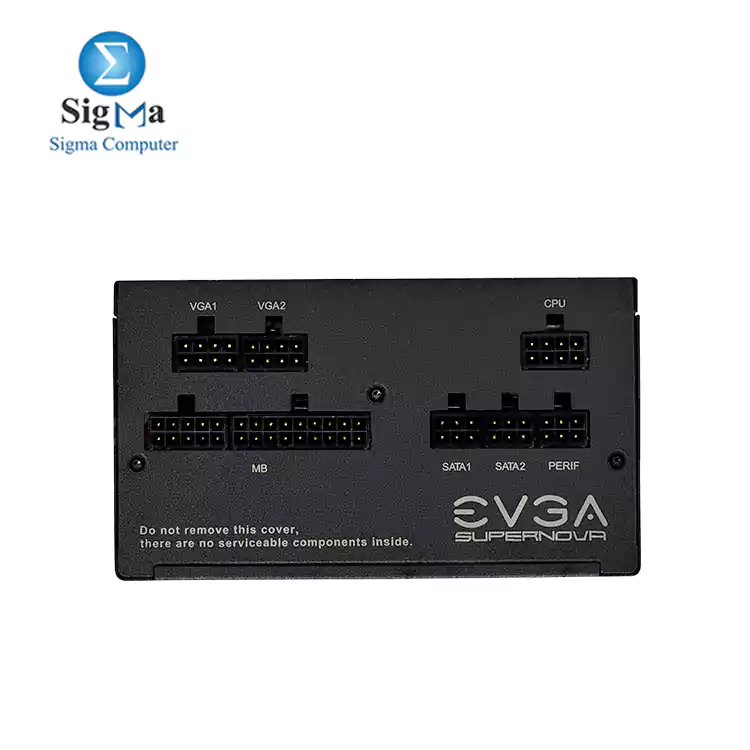

CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 1x 8pin(4+4)
PCIe 3x 8pin(6+2)
SATA 6x
Four-Pin Peripheral 4x
Floppy 1x

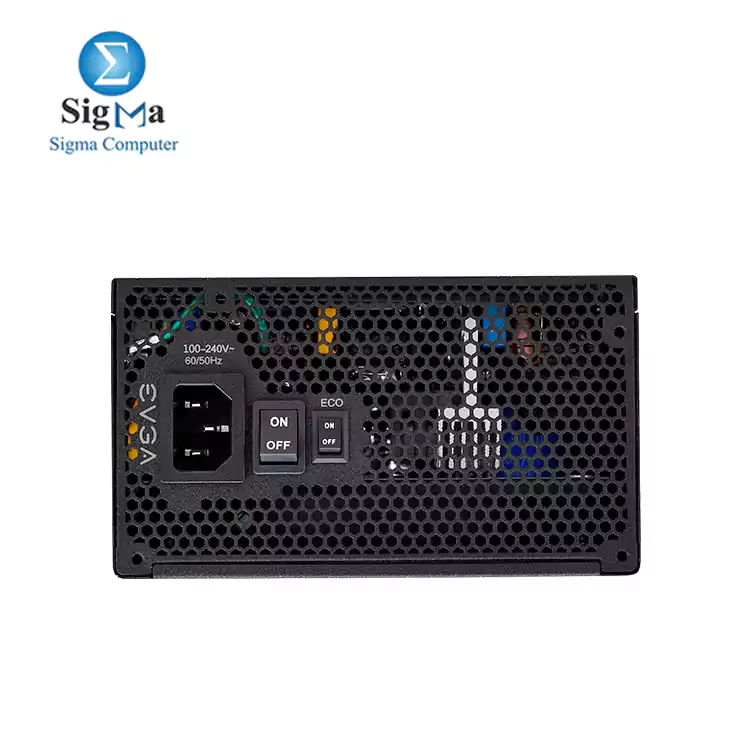

INPUT
Input Voltage 100-240 VAC
AC Input 8-4A
Input Frequency Range 50/60 Hz
Efficiency 90% or Higher Typical

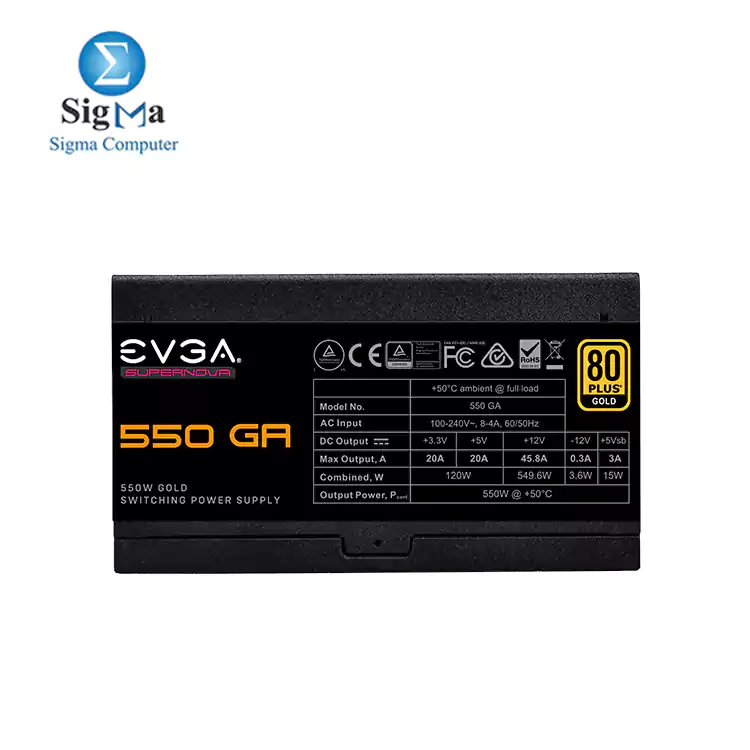

OUTPUT
Rail +3.3V +5V +12V -12V +5Vsb
Max output 20A 20A 45.8A 0.3A 3.0A
549.6W
120W 549.6W 3.6W 15W
Total 550W@50°C
ADDITIONAL DETAILS
Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Net Weight 5 lbs
Size 86mm (H) x 150mm (W) x 150mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 135mm Double Ball Bearing
UPC 843368061845
EAN 4250812433060
CategoryDesktop
SubcategoryPower Supply
BrandEVGA
Model220-GA-0550-X2
POWER OF SUPPLY POWER550W
EFFICIENCY RATING80+ Gold
MODULARFull
