EVGA 600 BQ, 80+ BRONZE 600W, Semi Modular Power Supply 110-BQ-0600-K2 | 1800 EGP

EVGA 600 BQ 80 BRONZE 600W Semi Modular Power Supply 110-BQ-0600-K2

1800 LE
shipped by (sigma)
Point: 50

Brand : EVGA brand

Seller : sigma

Viewed : 3467 items

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
Quiet and Intelligent Auto Fan for near-silent operation

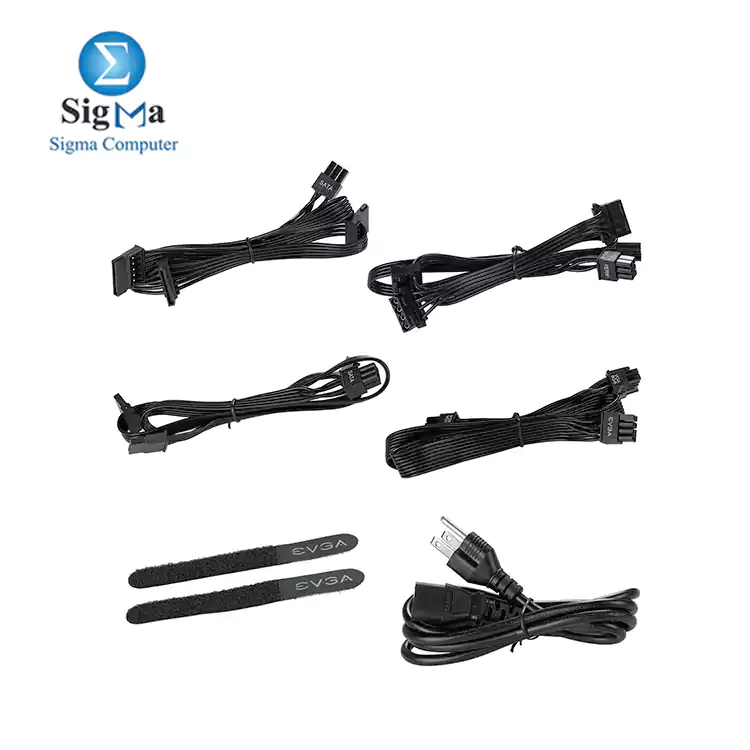

CABLE LENGTH
ATX Cable 1x 600mm
EPS Cable 1x 600mm
PCIe Cable 1x 600mm, 700mm
SATA Cable 2x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm + 810mm (Floppy)
Floppy Adapter 1x
AC Power 1x 1500mm

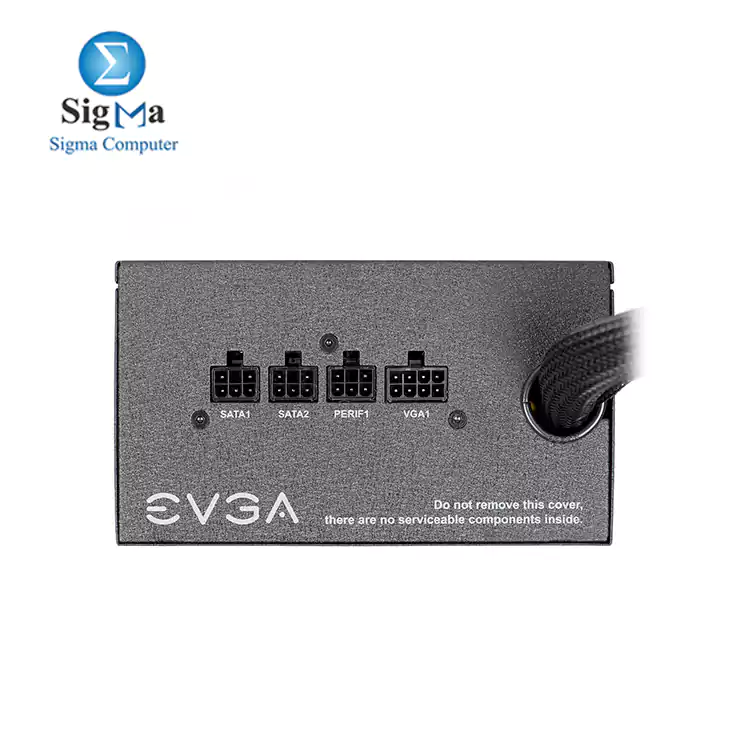

Modular Cable Type Semi-Modular
CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 1x8pin(4+4)
PCIe 2x 8pin (6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x
INPUT
Input Voltage 100 - 240 VAC
AC Input 10-5A
Input Frequency Range 50 - 60 Hz
Efficiency 85% Typical

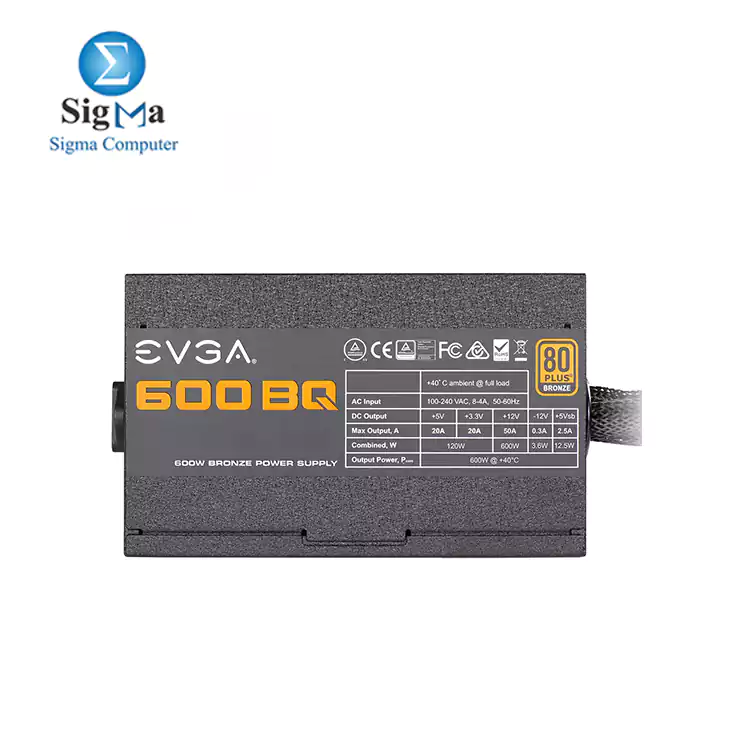

OUTPUT
Rail +3.3V +5V +12V -12V +5Vsb
Max output 20A 20A 50A 0.3A 2.5A
50A
120W 600W 3.6W 12.5W
Total 600W @ +40C
ADDITIONAL DETAILS
Operating Temperature 0° to 40° C
Japanese Capacitors Main PCB
ECO Mode No
MTBF 100,000 Hours
Net Weight 5 lbs
Size 85mm (H) x 150mm (W) x 140mm (L)
Approvals TUV, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 120mm Fluid Dynamic Bearing
UPC 843368043308
EAN 4250812415547
CategoryDesktop
SubcategoryPower Supply
BrandEVGA
Model110-BQ-0600-K2
POWER OF SUPPLY POWER600W
EFFICIENCY RATING 80+ Bronze
MODULARSemi
