EVGA 700 BR, 80+ BRONZE 700W Power Supply 100-BR-0700-K2 | 1430 EGP

EVGA 700 BR 80 BRONZE 700W Power Supply 100-BR-0700-K2

1430 LE
shipped by (sigma)
Point: 50

Brand : EVGA brand

Model : 700W

Seller : sigma

Viewed : 4872 items

80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Single 12V. Rail
Active Power Factor Correction
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
DC-DC Converter improves 3.3V/5V stability
Quiet and Intelligent Auto Fan for near-silent operation

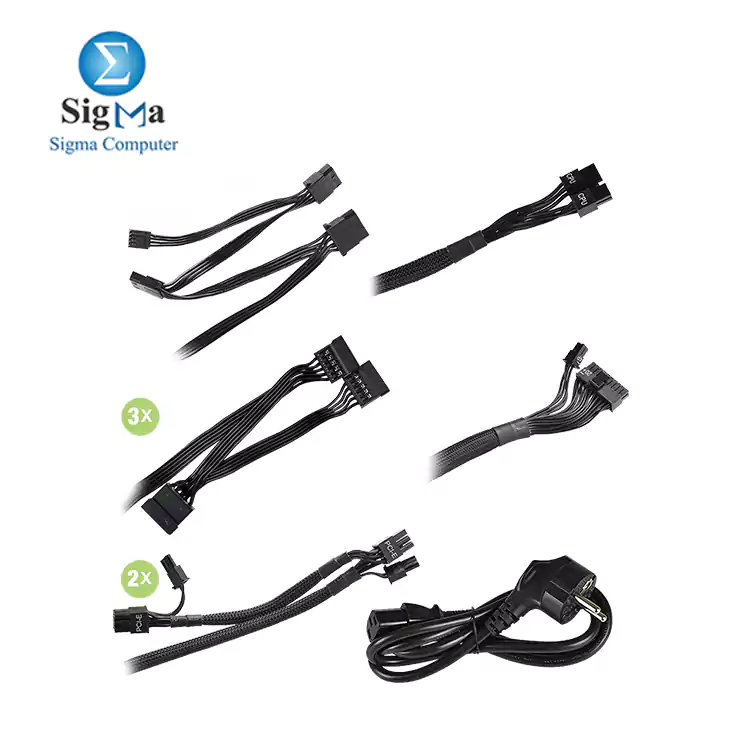

CABLE LENGTH
ATX Cable 1x 550mm
EPS Cable 1x 600mm
PCIe Cable 2x 550mm, 670mm
SATA Cable 3x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm + 810mm (Floppy)
AC Power 1x 1200mm (m)
Modular Cable Type No
CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 1x 8pin (4+4)
PCIe 4x 8pin (6+2)
SATA 9x
Four-Pin Peripheral 3x
Floppy 1x
INPUT
Input Voltage 100 - 240 VAC
AC Input 10/5A
Input Frequency Range 50 - 60 Hz
Efficiency 85% Typical
OUTPUT
Rail +3.3V +5V +12V -12V +5Vsb
Max output 24A 20A 58.3 0.3A 3A
699.6W
150W 699.6W 3.6W 15W
Total 700W @ +30C
ADDITIONAL DETAILS
Operating Temperature 0° to 30° C
Japanese Capacitors No
ECO Mode No
MTBF 100,000 Hours
Net Weight 4 lbs
Size 85mm (H) x 150mm (W) x 140mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 120mm Long Sleeve Bearing
UPC 843368051990
EAN 4250812423726
CategoryDesktop
SubcategoryPower Supply
BrandEVGA
Model700W
POWER OF SUPPLY POWER700W
EFFICIENCY RATING 80+ Bronze
MODULARNon
