EVGA 450 BR, 80+ BRONZE 450W Power Supply 100-BR-0450-K2 | 800 EGP

EVGA 450 BR 80 BRONZE 450W Power Supply 100-BR-0450-K2

800 LE
shipped by (sigma)
Point: 20

Brand : EVGA brand

Seller : sigma

Viewed : 5346 items

80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Single 12V. Rail
Active Power Factor Correction
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
DC-DC Converter improves 3.3V/5V stability
Quiet and Intelligent Auto Fan for near-silent operation

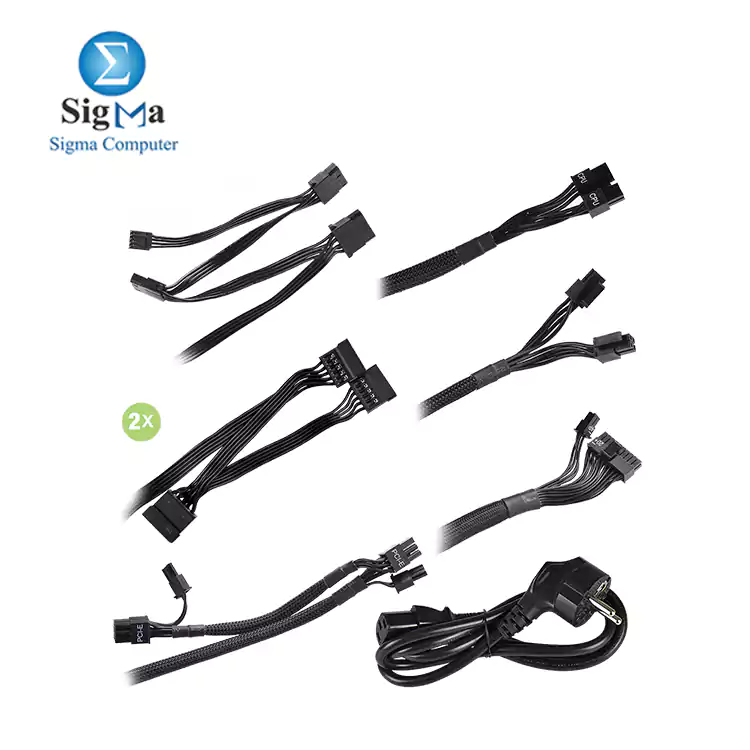

CABLE LENGTH
ATX Cable 1x 550mm
EPS Cable 1x 600mm
PCIe Cable 1x 550mm, 670mm
SATA Cable 2x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm + 810mm (Floppy)
AC Power 1x 1200mm (m)
Modular Cable Type No
CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 1x 8pin (4+4)
PCIe 2x 8pin (6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x
INPUT
Input Voltage 100 - 240 VAC
AC Input 8/4A
Input Frequency Range 50 - 60 Hz
Efficiency 85% Typical

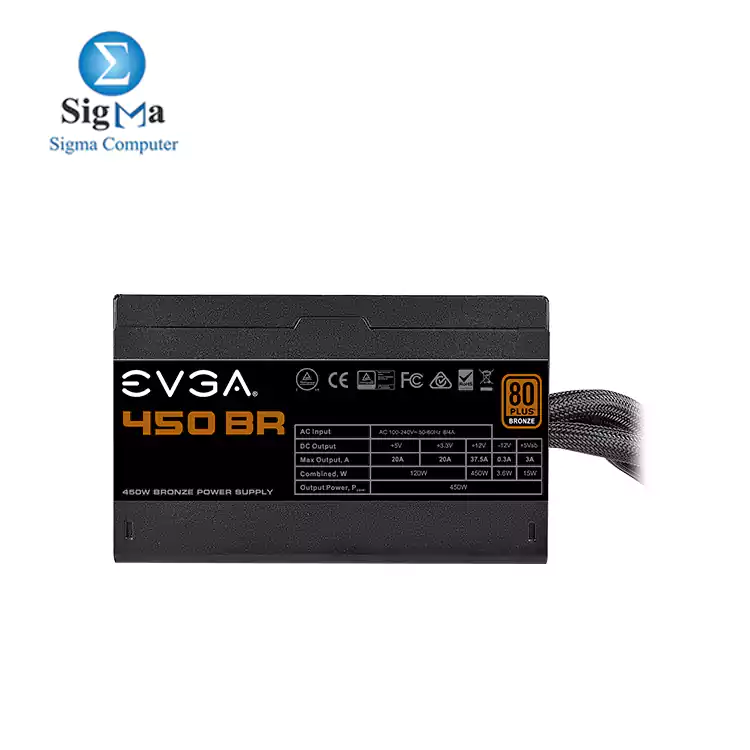

OUTPUT
Rail +3.3V +5V +12V -12V +5Vsb
Max output 20A 20A 37.5A 0.3A 3A
450W
120W 450W 3.6W 15W
Total 450W @ +30C
ADDITIONAL DETAILS
Operating Temperature 0° to 30° C
Japanese Capacitors No
ECO Mode No
MTBF 100,000 Hours
Net Weight 4 lbs
Size 85mm (H) x 150mm (W) x 140mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 120mm Long Sleeve Bearing
UPC 843368051822
EAN 4250812423559
CategoryDesktop
SubcategoryPower Supply
BrandEVGA
Model100-BR-0450-K2
POWER OF SUPPLY POWER450W
EFFICIENCY RATING 80+ Bronze
MODULARNon
