Antec POWER SUPPLY HCG1000 Extreme 1000W HIGH Current Gamer Fully Modular 80 PLUS GOLD FULL MODULAR | 5799 EGP

Antec POWER SUPPLY HCG1000 Extreme 1000W HIGH Current Gamer Fully Modular 80 PLUS GOLD FULL MODULAR

5799 LE
shipped by (sigma)
Point: 100

Brand : ANTEC brand

Model : HCG1000

Seller : sigma

Viewed : 4900 items

Guaranteed 1000W of Continuous Power from Antec

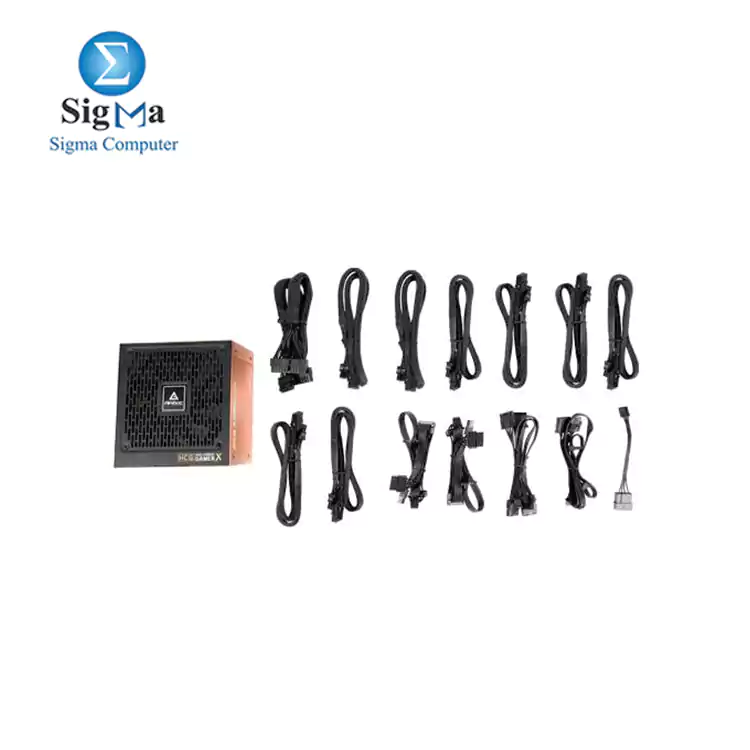

100% Modular-Improves airflow and reduces clutter
80 PLUS® GOLD certified-Up to 92% efficient, to reduce your electricity bill
PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology

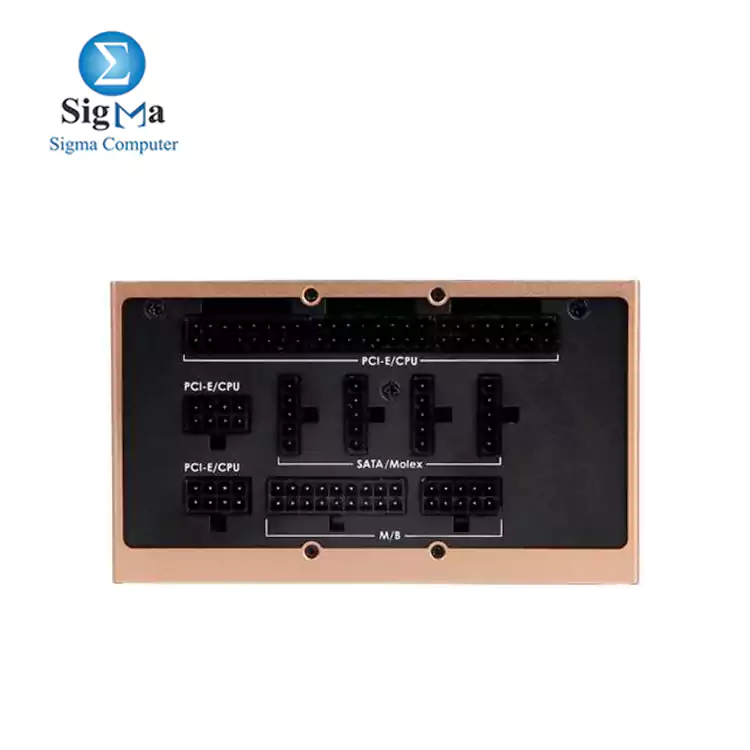

16 pin Socket-Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
Antec Quality 10-year warranty and lifetime global 24/7 support
135mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime

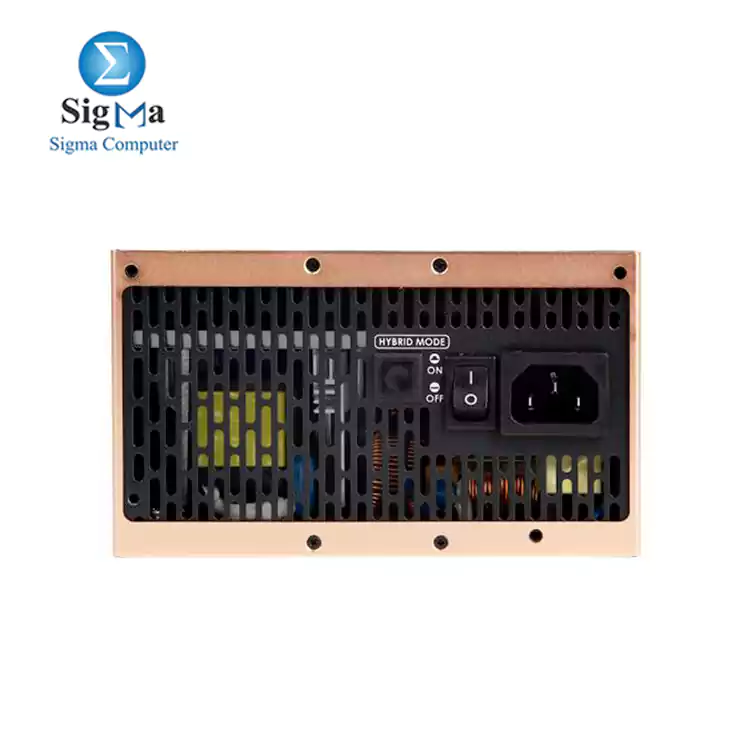

Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence
99%+12V - Output for maximum CPU & GPU support
CircuitShield™-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
28(18+10) pin MBU socket - For possible future MBU connectors
ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.


Product Name HCG1000 Extreme
Model Name HCG1000 Extreme
Type ATX 12V 2.4
Modular Fully Modular
Dimension (W x L x H) 160(L) x 150(W) x 86(H)
Warranty 10 years
Input Voltage 100-240 VAC ±10%
Input Current 13A-6.5A
Input Frequency Range 50Hz-60Hz
PFC Active PFC (>0.9 typical)
Power Good Signal 100-500ms
Efficiency 92% Typically
Protection OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
Output Capacity 1000W
Operation Temperature 0~50°C
Regulatory cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR

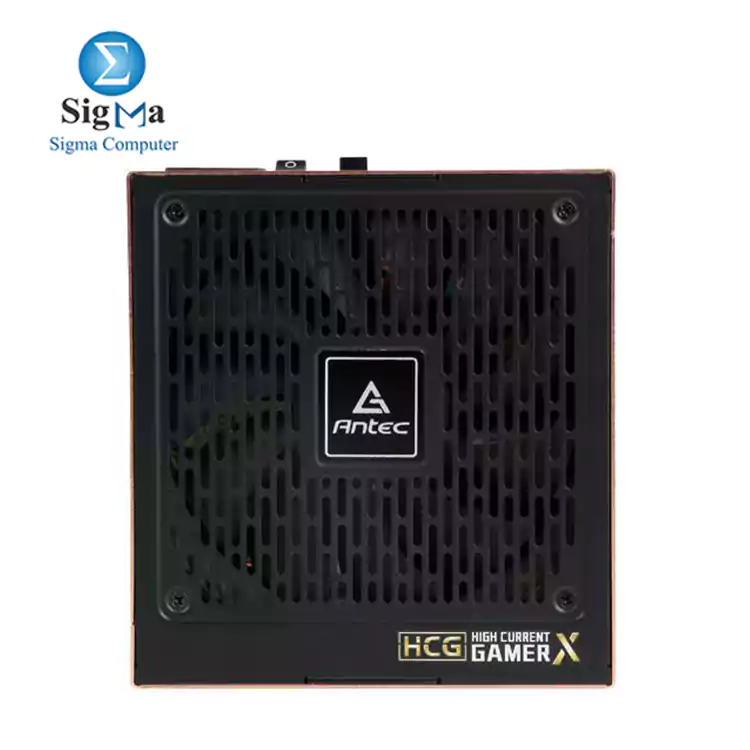

Fan 135mm FDB Fan
Certifications 80 Plus Gold

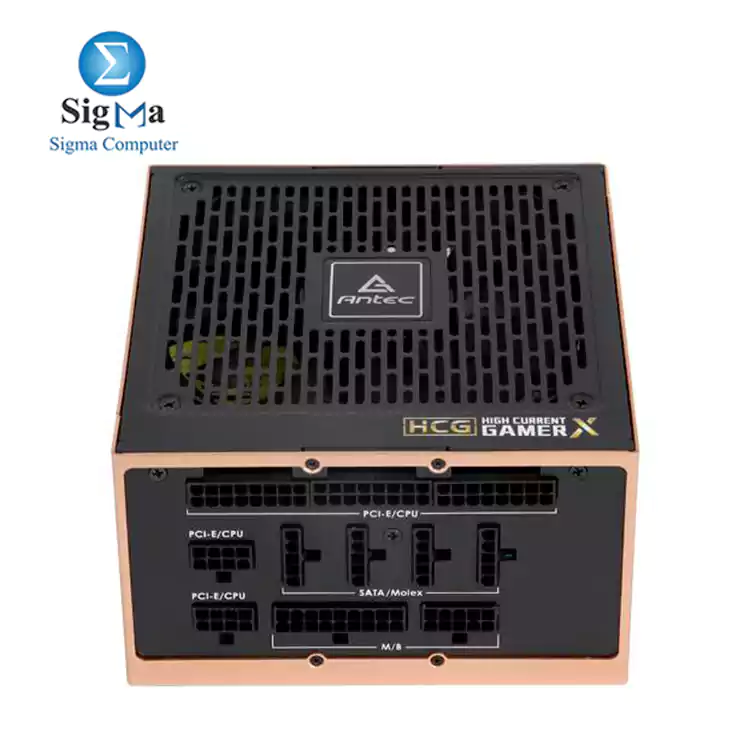

Connector 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
8 x 8(6+2) Pin PCI-E
12 x SATA
6 x Molex
1 x FDD
Net Weight 1.66 Kgs
Gross Weight 3.40 Kgs
UPC# 0-761345-11563-6  HCG1000 Extreme
0-761345-11562-9  HCG1000 Extreme CN
0-761345-11561-2  HCG1000 Extreme AU
0-761345-11560-5  HCG1000 Extreme EC
0-761345-11559-9  HCG1000 Extreme GB
0-761345-11558-2  HCG1000 Extreme JP
CategoryDesktop
SubcategoryPower Supply
BrandANTEC
ModelHCG1000
POWER OF SUPPLY POWER1000W
EFFICIENCY RATING80+ Gold
MODULARFull
