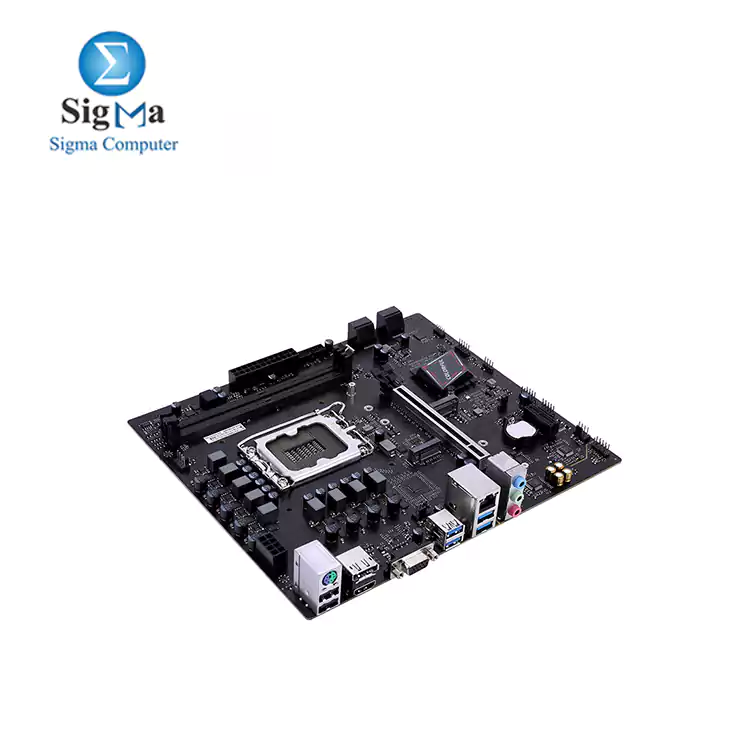

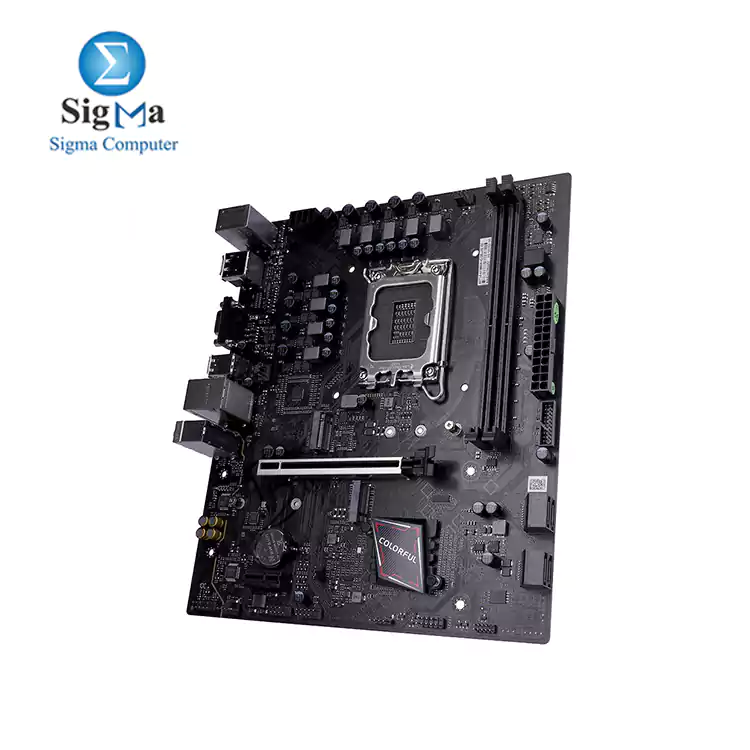

COLORFUL BATTLE-AX B660M-HD DELUXE V20 (LGA 1700 / M.2 SLOTX1 / GAMING AUDIO ) | 2899 EGP

COLORFUL BATTLE-AX B660M-HD DELUXE V20 LGA 1700 M.2 SLOTX1 GAMING AUDIO

2899 LE
shipped by (sigma)
Point: 50

Seller : sigma

Viewed : 5465 items

-Supports 12th Gen Intel® Core™ Processors (Socket 1700)
-2*DIMMs,supports Dual Channel DDR4 4800(OC)+/4600(OC)/4400(OC)MHZ memory
*memory overclocking also depends on the matching CPU and memory itself!
-4*SATA3.0 ports
-2*M.2 SSD slots
-1000M LAN
-6-ch audio chipset
-DP+HDMI+VGA ports
-4*USB2.0 ports (2 rear,2 header)
-6*USB3.2 Gen1 ports (4 rear,2 header)

Motherboard Series Intel chipset,BATTLE-AX series
Chipset Intel B660
Processor Supports 12th Gen Intel® Core™ Processors  (Socket 1700)
Memory 2 DIMM slots,support dual channel DDR4-4800(OC)+/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3600(OC)/3466(OC)/3200/2800/2666/2400 MHz
Graphics Support 1*PCI Express 4.0/3.0X16 slot
SATA Ports 4*SATA3.0 6Gb/s ports
Board I/O 1*PS2 port;1*VGA port,1*HDMI port,1*DP port; 2*USB 2.0 ports,4*USB3.2 Gen1 TYPE-A; 1*RJ45 1000M LAN; 6*audio ports(onboard:1*USB2.0 headers,1*USB3.2 Gen1 TYPE-A header)
Expansion Slots 1*PCI Express3.0X1 slot.2*M.2 slots;
BIOS 128M UEFI
Hardware Monitor CPU Fan speed Controlled,SYSTEM Fan speed Monitoring,CPU Temperature Monitoring,System Temperature Monitoring,and Voltage monitoring
LAN 1000M LAN,Provides 10/100/1000Mb Ethernet
Audio 6-Channel High Definition audio CODEC
Configuration 245*mm x 210mm
CategoryDesktop
SubcategoryMotherboard
Brandcolorful
ModelBATTLE-AX B660M-HD DELUXE V20
Motherboard TypeIntel
SocketLGA 1700
chipsetB660M
