Power supply antec signature sp 1300w 80+ platinum full modular | 8799 EGP

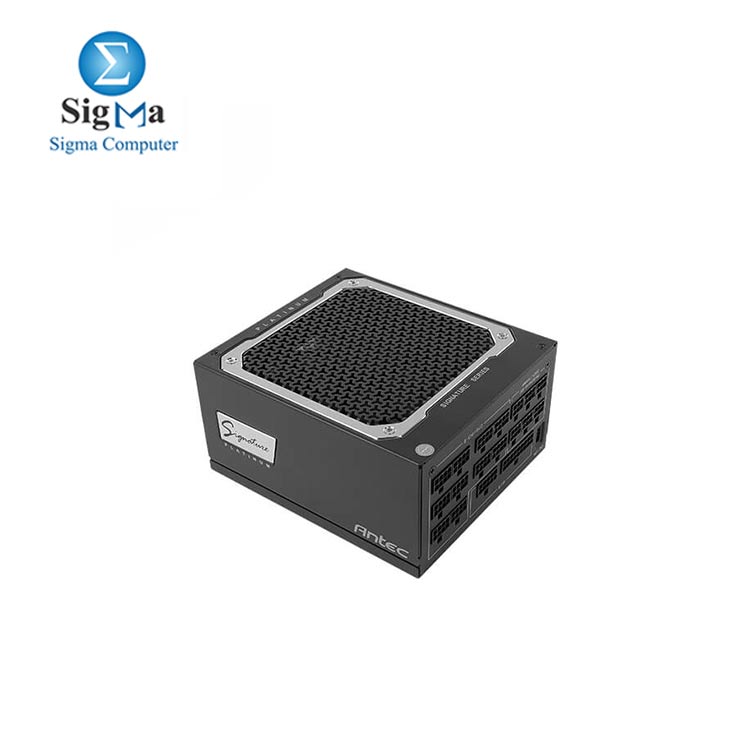

Power supply antec signature sp 1300w 80 platinum full modular

8799 LE
shipped by (sigma)
Point: 50

Brand : ANTEC brand

Model : SP1300

Seller : sigma

Viewed : 2459 items

Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.




Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevi

Achieve unprecedented tight voltage regulation & low ripple
& noise to maximize your system’s performance.
Allows 2 Signature PSUs to work in tandem to power the most demanding systems.
his new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by



Modular Fully
Dimension (W x L x H) 150 x 170 x 86mm
Warranty 10 years
Input Voltage 100-240
Input Current 15A ~ 7.5A
Input Frequency Range 47Hz ~ 63Hz
PFC APFC
PFC at half / full load:
>0.95 at AC 110v 60Hz(typical)
>0.90 at AC 230v 50Hz(typical)
Power Good Signal 100 ~ 500mS
Efficiency At 20% / 50% / 100% load AC 115V internal,
the power efficiency should be at least 90% / 92% / 89%.
Protection OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Output Capacity 1300W
Operation Temperature 0 ~ 40°C
Regulatory cTUVus / TUV / CB [IEC62368 Compliant] / CE /
FCC / BSMI / 3C / KC / RCM
Fan 135 x 135 x 25(mm) FDB Silent Fan
Certifications 80 Plus Platinum
Connector 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
12 x 8(6+2) Pin PCI-E
14 x SATA
5 x Molex
1 x FDD
UPC# 0-761345-11705-0 SP1300
0-761345-11706-7 SP1300 AU
0-761345-11707-4 SP1300 EC
0-761345-11708-1 SP1300 GB
0-761345-11709-8 SP1300 JP



CategoryDesktop
SubcategoryPower Supply
BrandANTEC
ModelSP1300
