Gigabyte H610M H DDR4 Motherboard - Supports Intel Core 14th CPUs 6 1 1 Hybrid Digital VRM up to 3200MHz DDR4 OC 1xPCIe 3.0 M.2 GbE LAN USB 3.2 Gen 1

Gigabyte H610M H DDR4 Motherboard - Supports Intel Core 14th CPUs 6 1 1 Hybrid Digital VRM up to 3200MHz DDR4 OC 1xPCIe 3.0 M.2 GbE LAN USB 3.2 Gen 1

reviews | Write a review

4199 LE

Availability: In Stock

shipped by (sigma)

Point: 10

Brand : Gigabyte

Model : H610M-H

Seller : sigma

Viewed : 15368 items

Gigabyte H610M H DDR4 - Key Specs:

CPU Support: LGA1700 (14th, 13th, 12th Gen Intel Core™, Pentium® Gold, Celeron®).

Chipset: Intel® H610.

Memory: 2 x DDR4 slots, up to 64GB, Dual Channel, XMP support.

Graphics: HDMI 2.1 (4K@60Hz), D-Sub (1080p@60Hz).

Storage: 1 x M.2 PCIe 3.0, 4 x SATA 6Gb/s.

Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1.

USB Ports: 4 x USB 3.2 Gen 1, 8 x USB 2.0.

Audio: Realtek® HD, 7.1-channel support.

LAN: Intel® GbE (1 Gbps).

Form Factor: Micro ATX (23.0cm x 21.5cm).

OS Support: Windows 10/11 (64-bit).

Seller note

010062151000108

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Gigabyte H610M H DDR4 motherboard specifications:

CPU Compatibility

Socket: LGA1700
Supported Processors: Intel 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron®.
Cache: L3 cache varies by CPU.

Chipset

Intel® H610 Express Chipset.

Memory

Type: DDR4 (3200/3000/2933/2666/2400/2133 MT/s).
Slots: 2 x DIMM sockets.
Max Capacity: Up to 64GB (32GB per slot).
Features:
- Dual-channel architecture.
- XMP support.
- ECC and non-ECC un-buffered DIMMs (ECC operates in non-ECC mode).

Graphics

Integrated Graphics: Intel® HD Graphics (CPU-dependent).
Ports:
- 1 x D-Sub (1920x1200@60Hz).
- 1 x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3).

Audio

Realtek® Audio CODEC: High Definition Audio with 2/4/5.1/7.1-channel support.

Networking

Intel® GbE LAN chip (1 Gbps).

Expansion Slots

1 x PCIe 4.0 x16 (graphics card).
1 x PCIe 3.0 x1.

Storage

M.2 Slot: 1 x PCIe 3.0 x4/x2 (Type 2260/2280).
SATA Ports: 4 x SATA 6Gb/s.

USB

USB 3.2 Gen 1: 4 ports (2 rear, 2 internal).
USB 2.0/1.1: 8 ports (4 rear, 4 internal).

Internal I/O Connectors

1 x 24-pin ATX power, 1 x 8-pin CPU power.
1 x M.2, 4 x SATA 6Gb/s.
2 x fan headers (1 CPU, 1 system).
1 x RGB LED header, TPM header, and front panel/audio headers.

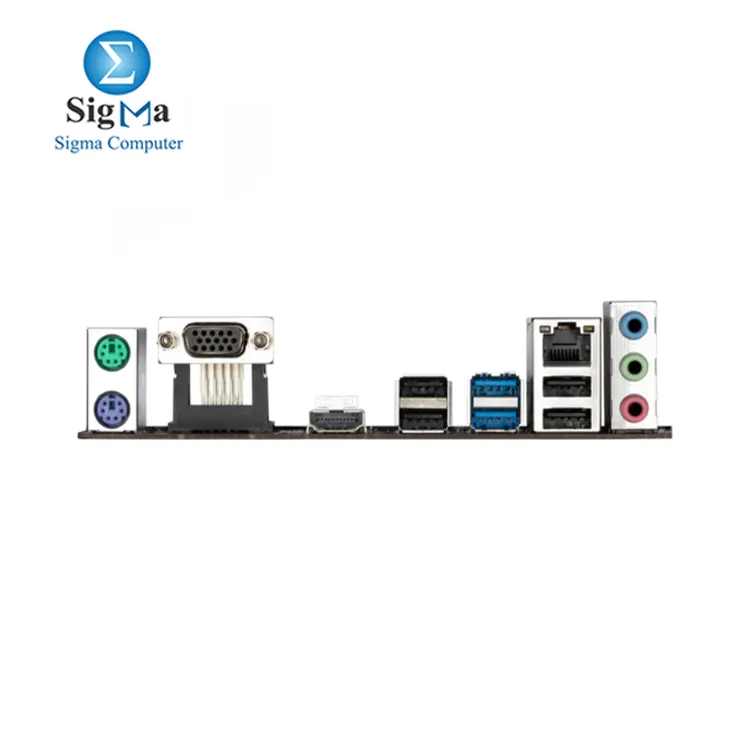

Back Panel Connectors

1 x PS/2 for keyboard/mouse.
1 x HDMI 2.0, 1 x D-Sub.
2 x USB 3.2 Gen 1, 4 x USB 2.0.
1 x RJ-45 LAN, 3 x audio jacks.

BIOS

256 Mbit flash with AMI UEFI BIOS.

Unique Features

APP Center: @BIOS, EasyTune, Smart Backup, etc.
Q-Flash for BIOS updates.

Form Factor

Micro ATX (23.0cm x 21.5cm).

Operating System Support

Windows 10/11 (64-bit).

Category	Desktop
Subcategory	Motherboard
Brand	Gigabyte
Model	H610M-H
