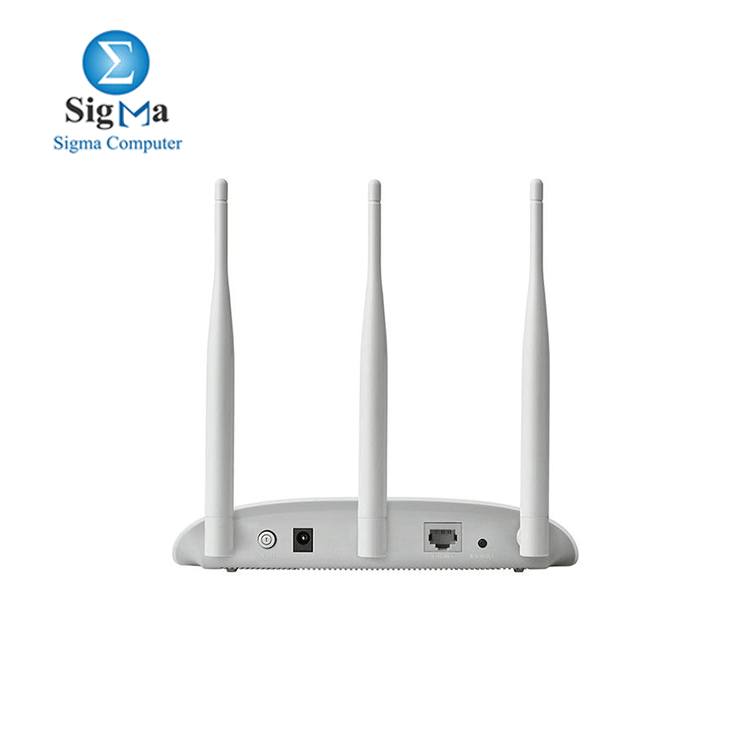

TP-Link TL-WA901ND - 3000Mbps Wireless N Access Point

reviews | Write a review

475 LE

shipped by (sigma)

Point: 10

Brand : TP-Link

Model : TL-WA901ND

Seller : sigma

Viewed : 5159 items

300Mbps wireless transmission rate, brings smooth wireless N experience

Supports multiple operating modes: Access Point, Client, Universal/ WDS Repeater, Wireless Bridge

Easily setup a WPA-PSK/WPA2-PSK encrypted secure connection at a push of the WPS button

Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector

Seller note

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Interface	One 10/100M Ethernet Port(RJ45) Support Passive PoE
Button	WPS/Reset, Power On/Off
Power Consumption	5.8W
External Power Supply	12VDC/1A
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )	7.675.121.43 in.( 194.82129.9336.2mm)
Antenna Type	3*5dBi Detachable Omni Directional (RP-SMA)

Interface

One 10/100M Ethernet Port(RJ45)
Support Passive PoE

Button

WPS/Reset, Power On/Off

Power Consumption

5.8W

External Power Supply

12VDC/1A

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H )

7.67*5.12*1.43 in.( 194.82*129.93*36.2mm)

Antenna Type

3*5dBi Detachable Omni Directional (RP-SMA)

WIRELESS FEATURES
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 450Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Transmit Power	<20dBm(EIRP)
Wireless Modes	Access Point /Repeater (Range Extender)/ Bridge with AP/ Client/Multi-SSID/
Wireless Functions	Enable/Disable Wireless Radio; WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistic Domain Login Function
Wireless Security	64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
DHCP	DHCP Server
Quality of Service	WMM
Management	SNMP
Advanced Functions	Up to 30 meters PoE is supported

WIRELESS FEATURES

Frequency

2.4-2.4835GHz

Signal Rate

11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity

270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Transmit Power

<20dBm(EIRP)

Wireless Modes

Access Point /Repeater (Range Extender)/ Bridge with AP/ Client/Multi-SSID/

Wireless Functions

Enable/Disable Wireless Radio;
WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function

Wireless Security

64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

DHCP

DHCP Server

Quality of Service

WMM

Management

SNMP

Advanced Functions

Up to 30 meters PoE is supported

OTHERS
Certification	CE, FCC, RoHS
Package Contents	Wireless Access Point TL-WA901ND 3 Detachable Omni Directional Antennas Power Supply Unit PoE Power Injector Resource CD Quick Installation Guide RJ-45 Ethernet Cable
System Requirements	Microsoft Windows XP, Vista, Windows 7, 8, 10
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

OTHERS

Certification

CE, FCC, RoHS

Package Contents

Wireless Access Point TL-WA901ND
3 Detachable Omni Directional Antennas
Power Supply Unit
PoE Power Injector
Resource CD
Quick Installation Guide
RJ-45 Ethernet Cable

System Requirements

Microsoft Windows XP, Vista, Windows 7, 8, 10

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
