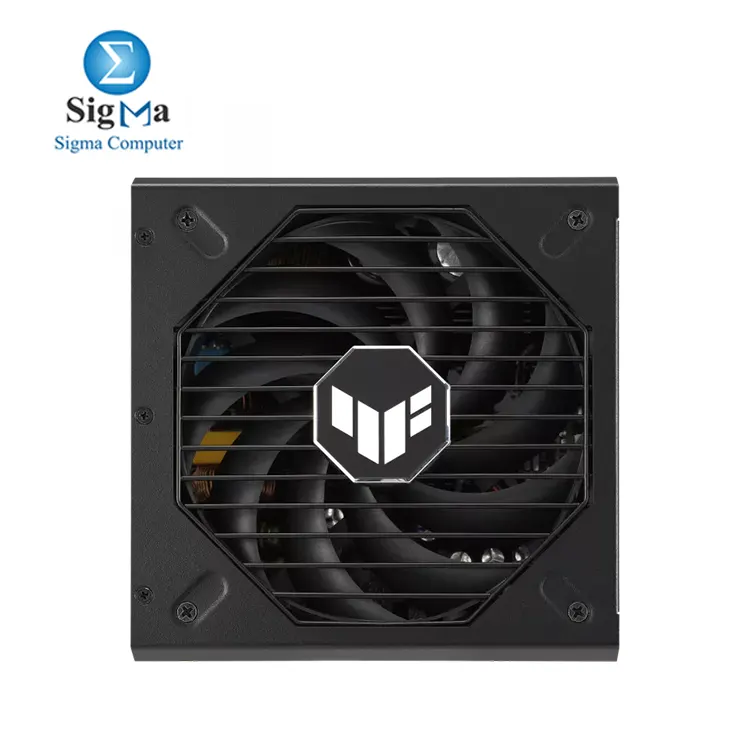

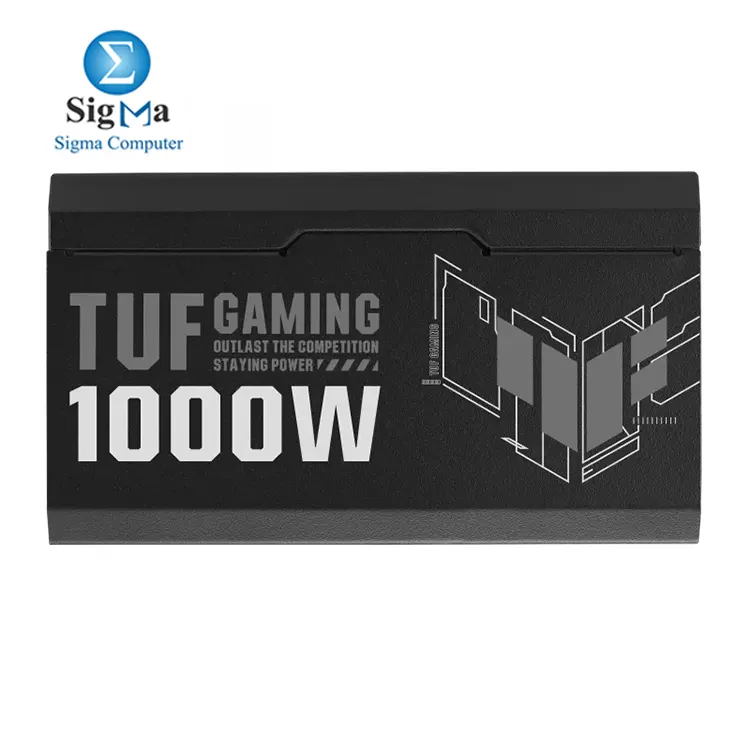

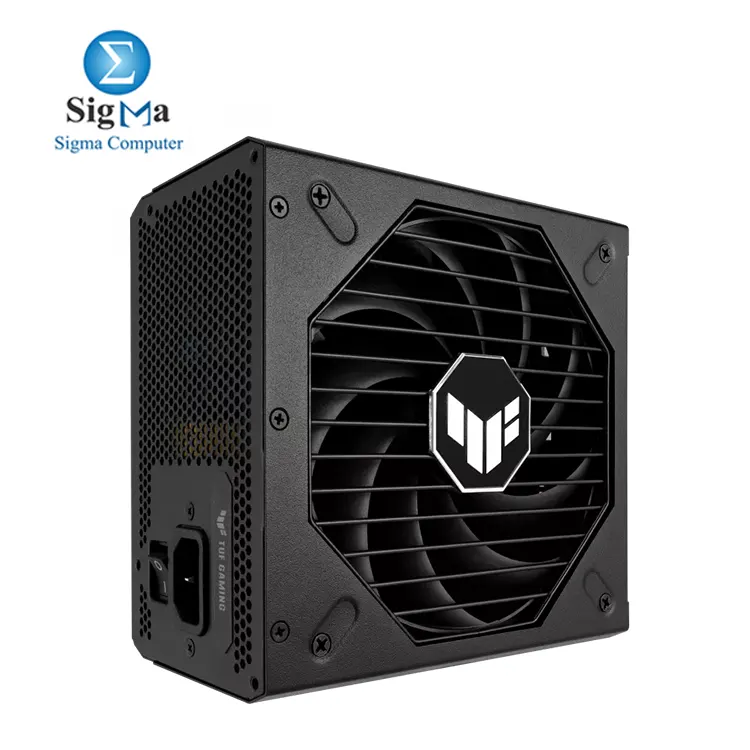

ASUS TUF Gaming 1000W Gold 1000W 80 Plus Gold ATX 3.1 fully modular dual ball bearing fan military-grade components.

reviews | Write a review

7999 LE

Availability: In Stock

shipped by (sigma)

Point: 40

Brand : ASUS

Model : TUF Gaming 1000W Gold

Seller : sigma

Viewed : 7272 items

TUF Gaming 1000W Gold - Highlights:

1000W, 80 Plus Gold efficiency

ATX 3.1 form factor

Fully modular cables

Dual ball bearing fan, 0dB mode

Military-grade components with Japanese capacitors

Multiple protections (OPP, OVP, SCP, etc.)

100-240V input

MTBF >120,000 hrs

Size: 150 x 150 x 86 mm

Seller note

001058345000017

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Model
TUF Gaming 1000W Gold

Intel Form Factor
ATX12V

PFC Type
Active PFC

ATX Standard
ATX 3.1

Dimensions
150 x 150 x 86 mm

Efficiency
80Plus Gold

MTBF

120,000 hrs @ 40°C

Protection Features
OPP / OVP / UVP / SCP / OCP / OTP

Hazardous Materials
ROHS

AC Input Range
100-240Vac

DC Output Voltage
+3.3V +5V +12V -12V +5Vsb

Maximum Load
25A 25A 83.3A 0.8A 3A

Combined Load
130W 130W 1000W 9.6W 15W

Total Output
1000W

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1

Weight
2.48kg (single PSU)

0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load.

0dB Fan Button
No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.

Category	Desktop
Subcategory	Power Supply
Brand	ASUS
Model	TUF Gaming 1000W Gold
