Asus PRIME A620M-E-CSM micro-ATX motherboard, DDR5 | 5050 EGP

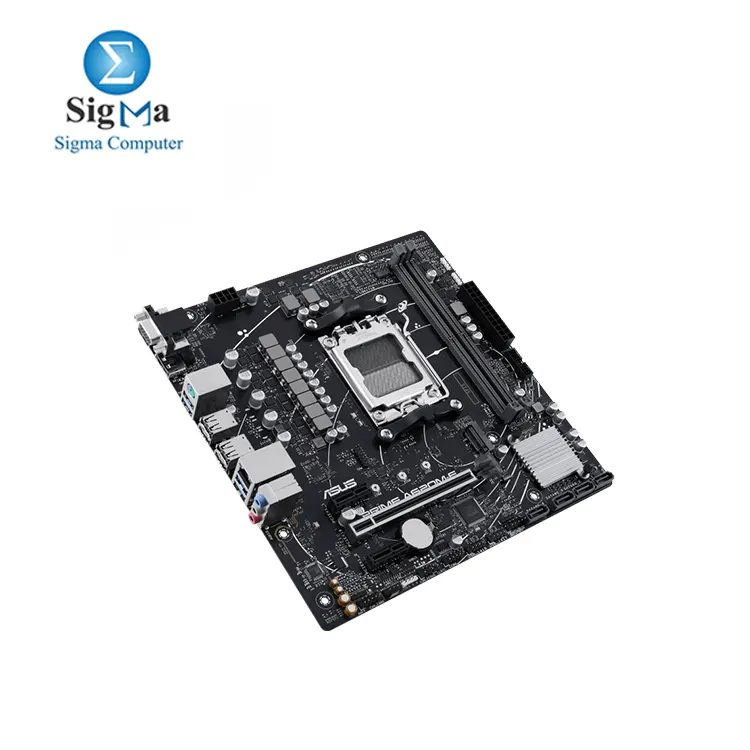

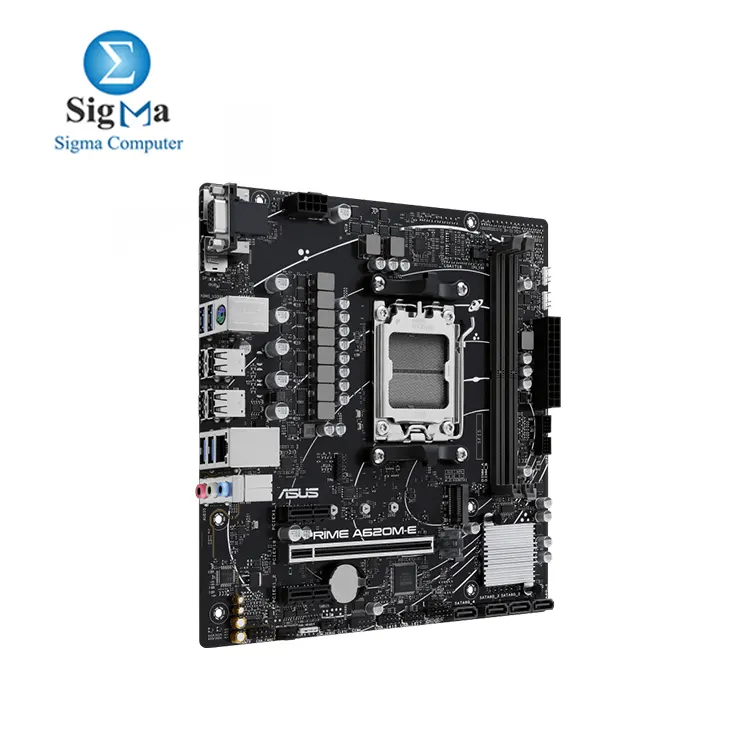

Asus PRIME A620M-E-CSM micro-ATX motherboard DDR5

5050 LE
Availability: In Stock
shipped by (sigma)
Point: 20

Brand : ASUS brand

Model : A620M-E-CSM

Seller : sigma

Viewed : 1862 items

AMD A620 micro-ATX motherboard with a lot of great features for high-performance computing and future-proofing. Here's a quick breakdown of its highlights:

  • Socket AM5: Supports AMD Ryzen™ desktop processors, offering compatibility with the latest AMD CPUs.
  • DDR5 Memory: Enables faster memory speeds and improved performance compared to DDR4.
  • PCIe 4.0: Provides higher bandwidth for graphics cards and M.2 storage, improving overall system speed and responsiveness.
  • Advanced AI Support: Designed to handle demanding AI applications, which is great if you’re into AI computing or other intensive tasks.
  • Cooling and Connectivity: Comprehensive cooling with a PCH heatsink, hybrid fan headers, and Fan Xpert 2+ for efficient thermal management. It also includes PCIe 4.0 M.2 slots for high-speed storage, Realtek 1Gb Ethernet for reliable network connections, and multiple USB 3.2 Gen 1 Type-A ports.
  • Aura Sync RGB Lighting: Customizable RGB lighting with Aura Sync support, allowing you to synchronize with other Aura Sync-compatible hardware.
  • Two-Way AI Noise Cancellation: Enhances communication clarity by reducing background noise from both microphone and audio output.
  • ASUS Control Center Express: Provides real-time IT monitoring and management for enhanced data protection and system management.




CPU Compatibility

  • Socket AM5: Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.
  • Supports CPUs up to 120W.

Chipset

  • AMD A620 Chipset: Provides a balance between performance and features.

Memory

  • 2 x DIMM slots: Maximum of 96GB.
  • DDR5 Memory: Supports speeds from 5800 MHz up to 7200 MHz (overclocked).
  • Dual Channel Memory Architecture.
  • AMD Extended Profiles for Overclocking (EXPO™).
  • On-Die ECC Function: For improved stability.

Graphics

  • 1 x DisplayPort: Up to 8K@60Hz.
  • 1 x HDMI™: Up to 4K@60Hz.
  • 1 x VGA port.

Expansion Slots

  • 1 x PCIe 4.0 x16 slot: For graphics cards (supports x16 mode for Ryzen™ 9000 & 7000 Series, x8/x4 mode for Ryzen™ 8000 Series).
  • 2 x PCIe 3.0 x1 slots: For additional expansion cards.

Storage

  • 1 x M.2 slot: PCIe 4.0 x4 mode (supports 2242/2260/2280).
  • 4 x SATA 6Gb/s ports.
  • AMD RAIDXpert2 Technology: Supports PCIe and SATA RAID 0/1/10.

Ethernet

  • 1 x Realtek 1Gb Ethernet: Reliable network connectivity.

USB Ports

  • Rear USB Ports: 4 x USB 3.2 Gen 1 (5G) ports, 4 x USB 2.0 ports.
  • Front USB Ports: 1 x USB 3.2 Gen 1 (5G) header (supports 2 additional ports), 2 x USB 2.0 headers (supports 4 additional ports).

Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC.
  • Supports up to 24-Bit/192 kHz playback.
  • Features: Audio Shielding, Premium capacitors, Dedicated audio PCB layers.

Back Panel I/O Ports

  • 4 x USB 3.2 Gen 1 (5G) ports.
  • 4 x USB 2.0 ports.
  • 1 x DisplayPort.
  • 1 x VGA port.
  • 1 x HDMI™ port.
  • 1 x Realtek 1Gb Ethernet port.
  • 3 x Audio jacks.
  • 1 x PS/2 Keyboard/Mouse combo port.

Internal I/O Connectors

  • Fan Headers: 1 x CPU Fan header, 2 x Chassis Fan headers.
  • Power Connectors: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector.
  • Storage Connectors: 1 x M.2 slot, 4 x SATA 6Gb/s ports.
  • USB Headers: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers.
  • Miscellaneous: 2 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, etc.

Special Features

  • ASUS 5X PROTECTION III: Includes DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O.
  • ASUS Q-Design: Features Q-DIMM, Q-LED Core, Q-Slot for easier component installation.
  • ASUS Thermal Solution: Includes an aluminum heatsink design.
  • Aura Sync: RGB lighting with Addressable Gen 2 headers and Aura RGB header.

Software Features

  • Armoury Crate: Includes Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation.
  • AI Suite 3: TurboV EVO, DIGI+ VRM, PC Cleaner.
  • ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR.

BIOS

  • 256 Mb Flash ROM, UEFI AMI BIOS: Includes ASUS EZ DIY features like CrashFree BIOS 3 and EZ Flash 3.

Manageability

  • WOL by PME, PXE: For remote management.

Accessories

  • Cables: 2 x SATA 6Gb/s cables.
  • Miscellaneous: 1 x I/O Shield, 1 x Screw package for M.2 SSD.
  • Documentation: 1 x ACC Express Activation Key Card, 1 x User guide.

Operating System

  • Windows® 11, Windows® 10 64-bit.

Form Factor

  • Micro-ATX: 8.9 x 8.7 inches (22.6 cm x 22.1 cm).



CategoryDesktop
SubcategoryMotherboard
BrandASUS
ModelA620M-E-CSM
