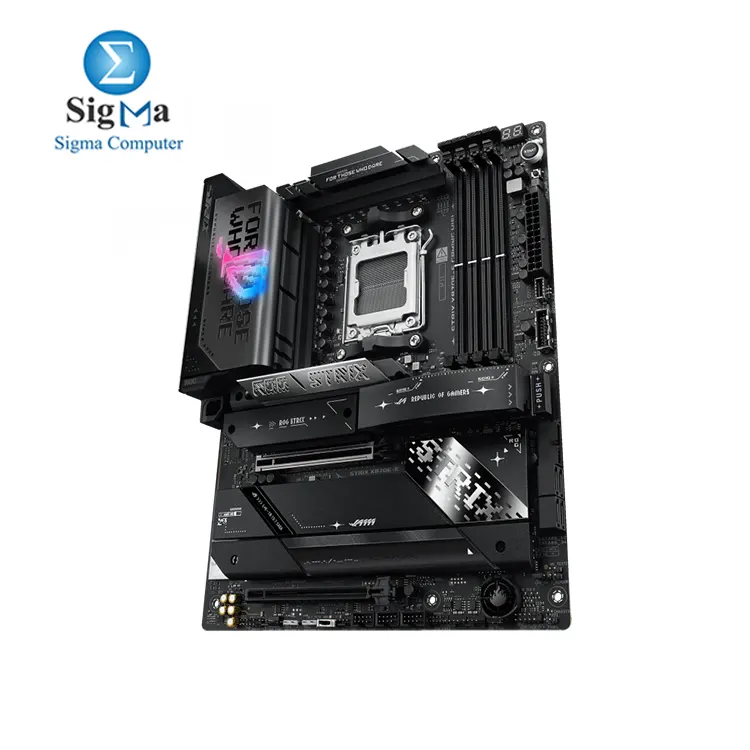

ASUS ROG STRIX X870E-E GAMING WIFI AMD AM5 socket, supports up to 192GB DDR5 memory, 5 M.2 slots, Wi-Fi 7, high-quality ROG SupremeFX 7.1 audio | 23000 EGP

ASUS ROG STRIX X870E-E GAMING WIFI AMD AM5 socket supports up to 192GB DDR5 memory 5 M.2 slots Wi-Fi 7 high-quality ROG SupremeFX 7.1 audio

23000 LE
shipped by (sigma)
Point: 40

Brand : ASUS brand

Seller : sigma

Viewed : 669 items

Key Specifications

  • Model: ROG STRIX X870E-E GAMING WIFI
  • Form Factor: ATX (12" x 9.6")

CPU

  • Socket: AMD Socket AM5
  • Compatible Processors: Ryzen™ 9000, 8000, 7000 Series

Chipset

  • Chipset: AMD X870E

Memory

  • Slots: 4 x DIMM
  • Max Memory: 192GB DDR5
  • Speed Support: Up to 8000+ MT/s (OC)

Graphics

  • Ports: 1 x HDMI™, 2 x USB4® (40Gbps)

Expansion Slots

  • Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16

Storage

  • M.2 Slots: 5 x M.2, 4 x SATA 6Gb/s

Ethernet

  • Controller: 1 x Realtek 5Gb Ethernet

Wireless & Bluetooth

  • Wi-Fi: Wi-Fi 7 (802.11be)
  • Bluetooth: v5.4

USB

  • Total Ports: 13 rear, 11 front

Audio

  • Audio CODEC: ROG SupremeFX 7.1 (ALC4080)

Special Features

  • Cooling: M.2 heatsinks, Aura Sync lighting

Software

  • Included Software: Armoury Crate, ROG CPU-Z

BIOS

  • Type: UEFI AMI BIOS

Operating System

  • Supported: Windows® 11 64-bit

Specifications Overview

  • Model: ROG STRIX X870E-E GAMING WIFI
  • Form Factor: ATX (12" x 9.6" / 30.5 cm x 24.4 cm)

CPU

  • Socket: AMD Socket AM5
  • Compatible Processors: AMD Ryzen™ 9000, 8000, and 7000 Series

Chipset

  • Chipset: AMD X870E

Memory

  • Slots: 4 x DIMM
  • Max Memory: 192GB DDR5
  • Speed Support:
    • Up to 8000+ MT/s (OC) with Ryzen™ 9000 Series
    • Up to 8400+ MT/s (OC) with Ryzen™ 8000 Series
    • Up to 8000+ MT/s (OC) with Ryzen™ 7000 Series
  • Features: Dual Channel, ECC support, EXPO™ for Overclocking

Graphics

  • Ports:
    • 1 x HDMI™ (supports max. 4K@60Hz)
    • 2 x USB4® (40Gbps, supports USB Type-C® display outputs)

Expansion Slots

  • Slots:
    • 1 x PCIe 5.0 x16 (for Ryzen™ 9000 & 7000)
    • 1 x PCIe 4.0 x16 (for Ryzen™ 8000)
    • 1 x PCIe 4.0 x16 (X870E chipset)

Storage

  • M.2 Slots: 5 x M.2 (supports PCIe 5.0/4.0)
  • SATA Ports: 4 x SATA 6Gb/s

Ethernet

  • Controller: 1 x Realtek 5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth

  • Wi-Fi: Wi-Fi 7 (802.11be), supports 2.4/5/6GHz
  • Bluetooth: Bluetooth® v5.4

USB

  • Total Ports: 13 rear, 11 front
    • USB4® (2)
    • USB 20Gbps (1)
    • USB 10Gbps (10)
    • USB 5Gbps and 2.0 headers available

Audio

  • Audio CODEC: ROG SupremeFX 7.1 Surround Sound (ALC4080)
  • Features: High-quality playback, audio shielding, gold-plated jacks, optical S/PDIF out

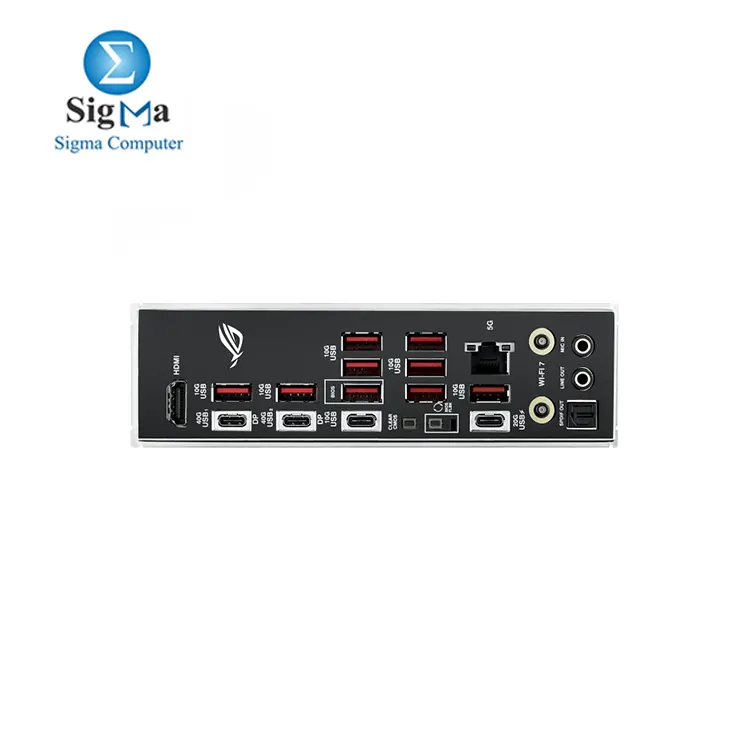

Back Panel I/O Ports

  • USB4® (2), USB 20Gbps (1), USB 10Gbps (10), HDMI™ (1), Ethernet, Audio jacks, BIOS FlashBack™, Clear CMOS button

Internal I/O Connectors

  • Fan Connectors: Multiple headers for CPU and chassis fans
  • Power Connectors: 24-pin main, 2 x 8-pin CPU
  • Storage Connectors: M.2 and SATA slots, USB headers

Special Features

  • Cooling: M.2 heatsinks, VRM design
  • Overclocking: Extreme Engine Digi+, ASUS Q-Design, Aura Sync

Software Features

  • Exclusive Software: ROG CPU-Z, Dolby Atmos, Armoury Crate
  • Driver Hub: ASUS GlideX, TurboV Core, others

BIOS

  • Type: UEFI AMI BIOS, 256 Mb Flash ROM

Manageability

  • Features: WOL by PME, PXE

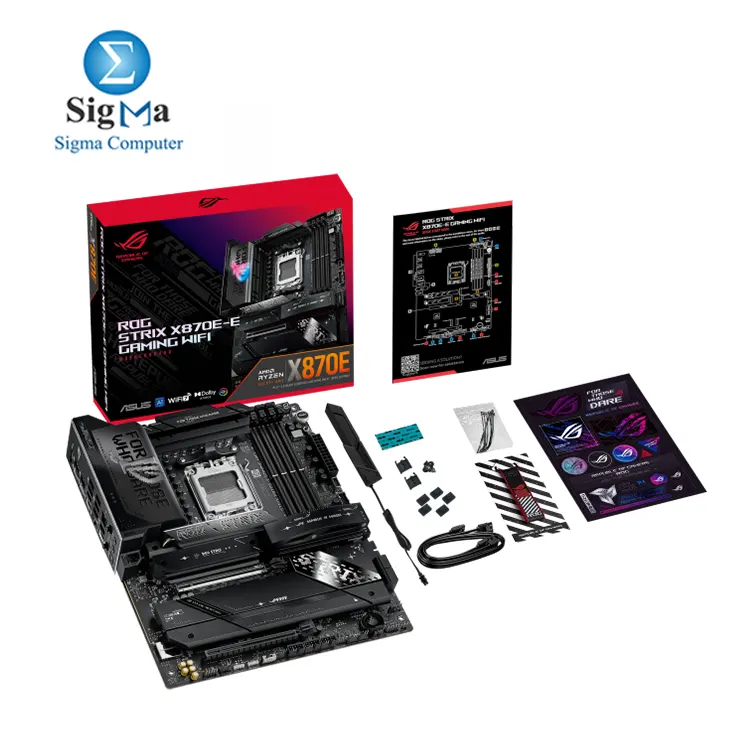

Accessories

  • Included: SATA cables, thermal pads, cooling kit, antennas, documentation, stickers, keychain

Operating System

  • Supported: Windows® 11 64-bit

This motherboard is designed for high-performance gaming and computing, catering to the latest AMD processors and offering extensive connectivity and expansion options.
