Model

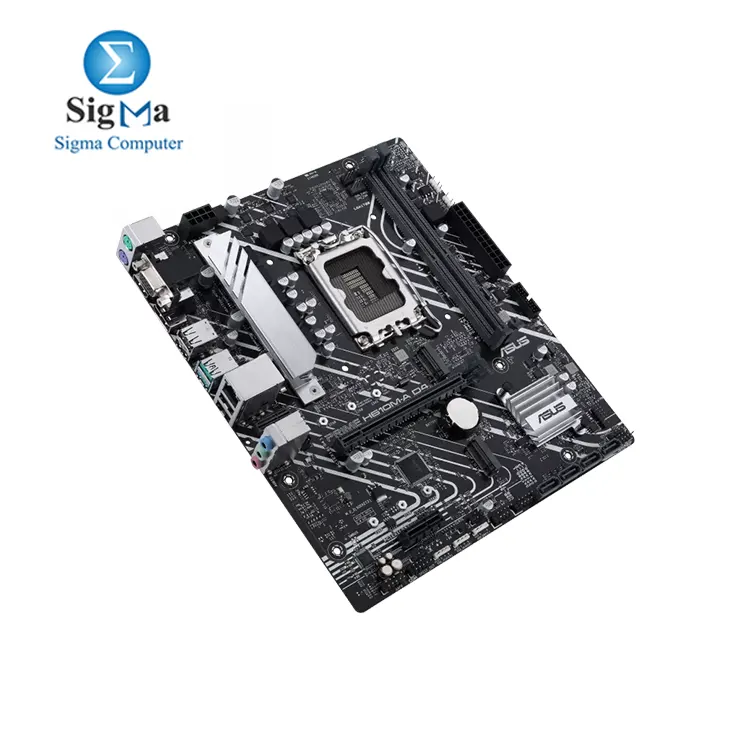

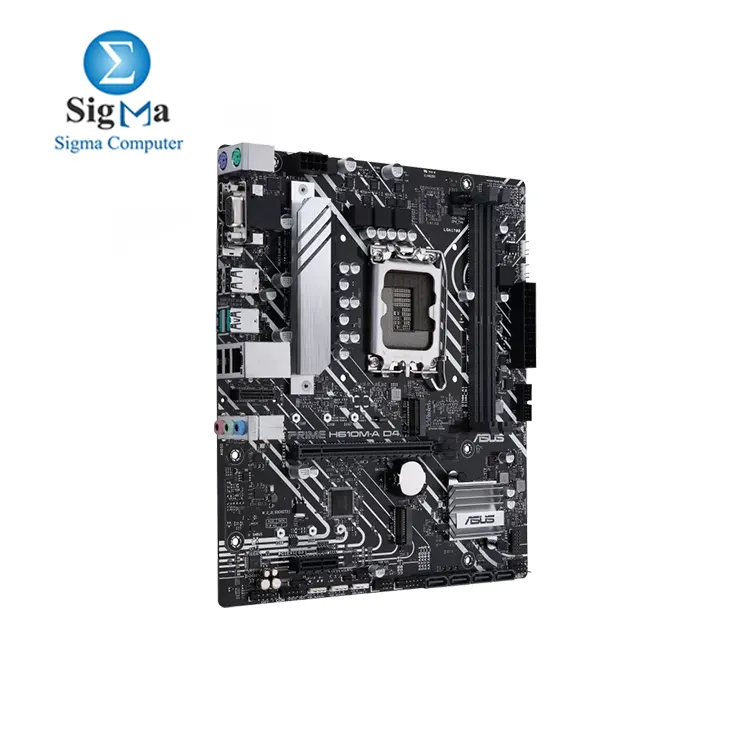

PRIME H610M-A D4-CSM
News & Updates
- 2024/08/12: A new BIOS update with Intel microcode (0x129) is now available to enhance the stability of Intel Core 13th and 14th Gen desktop processors. For the latest BIOS updates, please visit the support site.
CPU
-
Socket: Intel® LGA1700 for:
- Intel® Core™ 14th & 13th Gen Processors
- Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors*
-
Turbo Boost Technology: Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to ASUS for CPU support list.
**Support for Intel® Turbo Boost Max Technology 3.0 depends on the CPU type.
Chipset
- Chipset: Intel® H610 Chipset
Memory
- Slots: 2 x DIMM, Max. 64GB
- Type: DDR4 (3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered)*
- Architecture: Dual Channel Memory Architecture
- XMP Support: Supports Intel® Extreme Memory Profile (XMP)
*Actual memory data rate depends on CPU types and DRAM modules. Refer to ASUS Memory QVL for more information.
Graphics
- Outputs:
- 1 x DisplayPort (supports max. 4K@60Hz as specified in DisplayPort 1.4)
- 1 x D-Sub port
- 1 x HDMI® port (supports 4K@60Hz as specified in HDMI 2.1)
*Graphics specifications may vary between CPU types. Refer to Intel for updates.
Expansion Slots
- For Intel® Core™ Processors:
- For Intel® H610 Chipset:
Storage
- M.2 Slots:
- Total of 2 x M.2 slots
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
- SATA Ports: 4 x SATA 6Gb/s ports
Networking
- Ethernet: 1 x Intel® 1Gb Ethernet
Wireless & Bluetooth
- V-M.2 Slot: (Key E, CNVi & PCIe)*
*Wi-Fi module sold separately.
USB Ports
- Rear USB:
- 2 x USB 3.2 Gen 2 ports (Type-A)
- 4 x USB 2.0 ports (Type-A)
- Front USB:
- 1 x USB 3.2 Gen 1 header (supports additional 2 USB 3.2 Gen 1 ports)
- 2 x USB 2.0 headers (supports additional 3 USB 2.0 ports)
Audio
*Requires a chassis with an HD audio module in the front panel for 7.1 Surround Sound audio output.

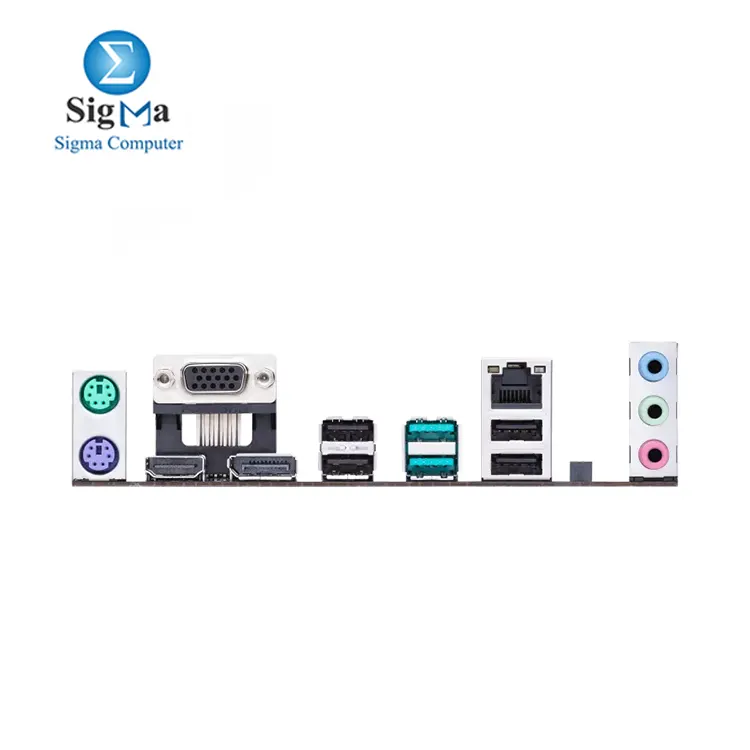

Back Panel I/O Ports
- 2 x USB 3.2 Gen 2 ports (Type-A)
- 4 x USB 2.0 ports (Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x D-Sub port
- 1 x V-M.2 slot (Key E)
- 1 x Intel® 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard port (purple)
- 1 x PS/2 Mouse port (green)
Internal I/O Connectors
-
Cooling:
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
-
Power:
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
-
Storage:
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
-
USB:
- 1 x USB 3.2 Gen 1 header (supports additional 2 USB 3.2 Gen 1 ports)
- 2 x USB 2.0 headers (supports additional 3 USB 2.0 ports)
-
Miscellaneous:
- 3 x Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x COM Port header
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Special Features
-
ASUS 5X PROTECTION III:
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
-
ASUS Q-Design:
-
ASUS Thermal Solution:
-
AURA Sync:
- AURA RGB headers
- Addressable Gen 2 headers
Software Features
- ASUS Exclusive Software:
- Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- AI Suite 3 (Performance and Power Saving Utility)
- TurboV EVO
- EPU
- DIGI+ VRM
- ASUS CPU-Z
- IT Management software supported (ASUS Control Center Express - ACCE)
- Norton Anti-virus software (Free Trial version)
- WinRAR
- BIOS:
- 128 Mb Flash ROM, UEFI AMI BIOS
- Manageability:
Accessories
- Cables:
- Miscellaneous:
- 1 x I/O Shield
- 1 x M.2 SSD screw package
- Installation Media:
- Documentation:
- 1 x ACC Express Activation Key Card
- 1 x User guide
Operating System
- Supported OS: Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
- Type: mATX Form Factor
- Dimensions: 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
This motherboard is well-suited for a variety of applications, offering great expandability, connectivity, and performance features for both gamers and professionals.
