ASUS PRIME B450M-A II AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A, BIOS FlashBack™, and Aura Sync RGB lighting support | 3800 EGP

ASUS PRIME B450M-A II AMD B450 Ryzen AM4 micro ATX motherboard with M.2 support HDMI DVI-D D-Sub SATA 6 Gbps 1 Gb Ethernet USB 3.2 Gen 2 Type-A BIOS FlashBack and Aura Sync RGB lighting support

3800 LE
Availability: In Stock
shipped by (sigma)
Point: 10

Brand : ASUS brand

Model : B450M-A II

Seller : sigma

Viewed : 241 items

Motherboard: AMD B450 (Ryzen AM4) Micro ATX

Key Specifications:

  • Form Factor: Micro ATX
  • Processor Compatibility: Supports AMD Ryzen processors (Socket AM4)
  • M.2 Support: Yes, enabling fast SSD storage options.
  • Display Outputs: HDMI, DVI-D, D-Sub
  • Storage: SATA 6 Gbps support.
  • Networking: 1 Gb Ethernet.
  • USB Ports: USB 3.2 Gen 2 Type-A support.
  • BIOS FlashBack™: Easily update the BIOS without installing the CPU.
  • RGB Lighting: Aura Sync support with onboard connectors for RGB LED strips, allowing you to sync lighting with other Aura Sync-capable hardware.

Cooling Features:

  • Comprehensive Cooling:
    • VRM Heatsink: For voltage regulation module cooling.
    • PCH Heatsink: For chipset cooling.
    • Fan Xpert 2+: Smart fan control for optimizing airflow.

System Protection:

  • 5X Protection III: Built-in safeguards for hardware protection and system stability.

This motherboard offers solid performance with advanced features, making it suitable for gamers, content creators, and general users alike.

Model: PRIME B450M-A II

CPU Support:

  • AMD AM4 socket, compatible with:
    • Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen Ryzen™
    • Ryzen™ with Radeon™ Vega Graphics
    • Athlon™ with Radeon™ Vega Graphics
  • Visit the ASUS website for the complete CPU support list.

Chipset:

  • AMD B450 chipset

Memory:

  • Supports up to 128GB of DDR4 RAM across 4 DIMM slots.
  • Memory frequencies (OC) supported: 4400 MHz down to 2133 MHz.
  • Dual-channel memory architecture.
  • ECC memory support varies by CPU.
  • Check the ASUS website for the Qualified Vendors List (QVL) of compatible memory modules.

Graphics:

  • Integrated graphics supported with:
    • 2nd/1st Gen Ryzen™ and Athlon™ processors with Radeon™ Vega Graphics.
  • Output ports:
    • 1 x D-Sub
    • 1 x DVI-D
    • 1 x HDMI

Expansion Slots:

  • 3rd/2nd/1st Gen Ryzen™: 1 x PCIe 3.0 x16 (x16 mode).
  • Ryzen™ with Radeon™ Vega Graphics: 1 x PCIe 3.0 x16 (x8 mode).
  • Athlon™ with Radeon™ Vega Graphics: 1 x PCIe 3.0 x16 (x4 mode).
  • AMD B450 chipset: 2 x PCIe 2.0 x1 slots.

Storage:

  • 1 x M.2 slot (Type 2242/2260/2280/22110) supporting SATA & PCIe 3.0 x4 modes.
  • 6 x SATA 6Gb/s ports.
  • RAID 0, 1, 10 supported.
  • Note: The M.2 slot shares bandwidth with SATA6G_5/6 ports.

Networking:

  • Realtek® RTL8111H 1 Gb Ethernet with ASUS LANGuard protection.

Audio:

  • Realtek ALC887/897 7.1-Channel High Definition Audio CODEC.
  • Audio features include LED lighting, audio shielding, and premium capacitors.

USB Ports:

  • Rear:
    • 2 x USB 3.2 Gen 2 (Type-A, up to 10Gbps).
    • 4 x USB 3.2 Gen 1 (Type-A).
  • Front:
    • 2 x USB 3.2 Gen 1 ports.
    • 4 x USB 2.0 ports.

Software Features:

  • Exclusive ASUS Software:
    • Armoury Crate (AURA Creator, AURA Sync).
    • AI Suite 3 (Performance, Power saving tools).
    • TurboV EVO, EPU, Fan Xpert 2+.
    • Norton Antivirus (60-day free trial).
    • WinRAR and other utilities like ASUS CPU-Z and DAEMON Tools.

BIOS:

  • UEFI AMI BIOS with 256Mb Flash ROM.
  • EZ DIY features include CrashFree BIOS 3, EZ Flash 3, and BIOS FlashBack™.

ASUS Exclusive Features:

  • 5X Protection III:
    • DIGI+ VRM.
    • LANGuard.
    • Overvoltage Protection.
    • SafeSlot Core.
    • Stainless Steel Back I/O.
  • AURA Sync: RGB header for lighting control.

I/O Ports:

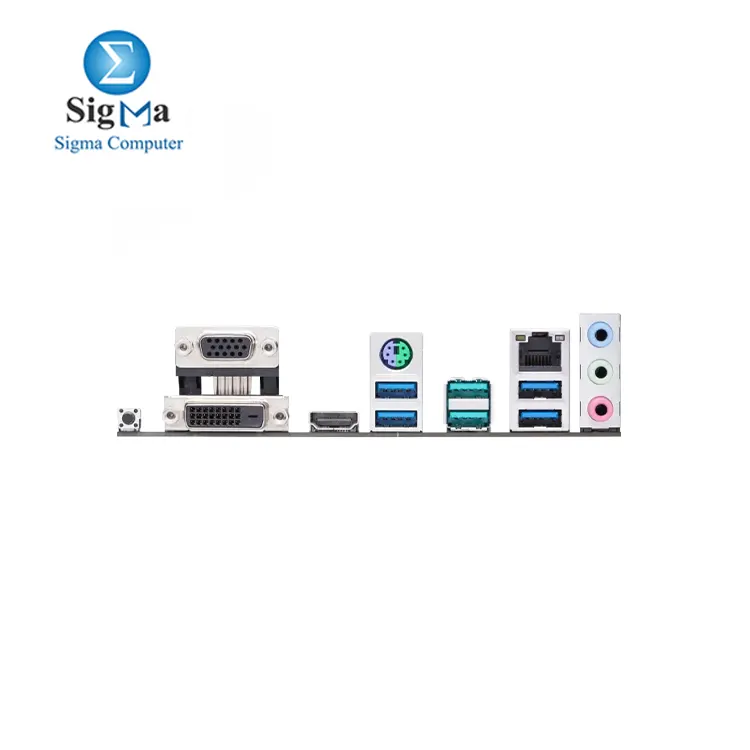

  • Rear I/O:
    • 1 x PS/2 combo port.
    • 1 x DVI-D, 1 x D-Sub, 1 x HDMI.
    • 1 x LAN (RJ45).
    • 2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1 ports.
    • 3 x Audio jacks.
    • 1 x BIOS FlashBack™ button.
  • Internal I/O:
    • 1 x CPU fan, 2 x chassis fan connectors.
    • 6 x SATA 6Gb/s connectors.
    • 1 x RGB header, 1 x TPM header, etc.

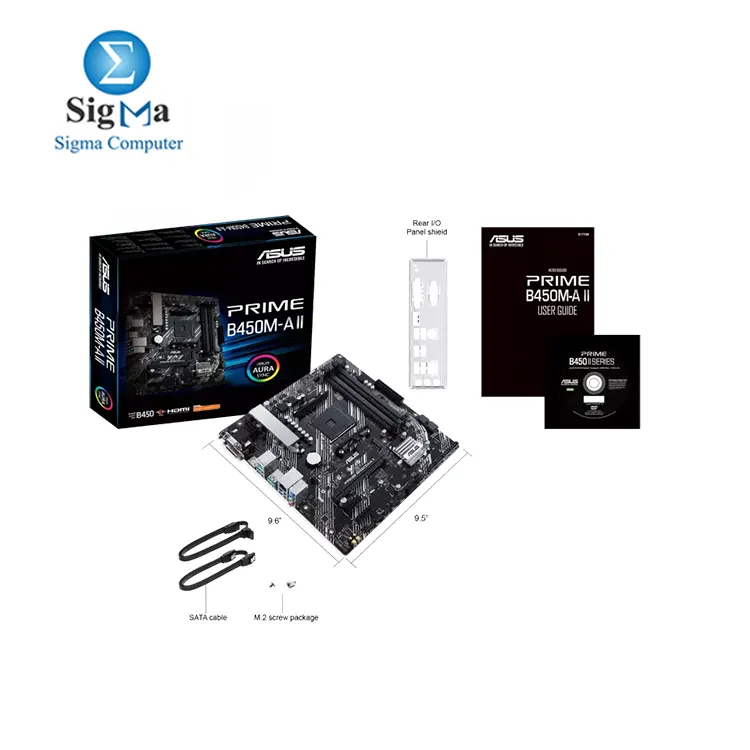

Accessories:

  • User manual, I/O shield, 2 x SATA cables, M.2 screw package, supporting DVD.

Form Factor:

  • mATX (24.4 cm x 24 cm).
