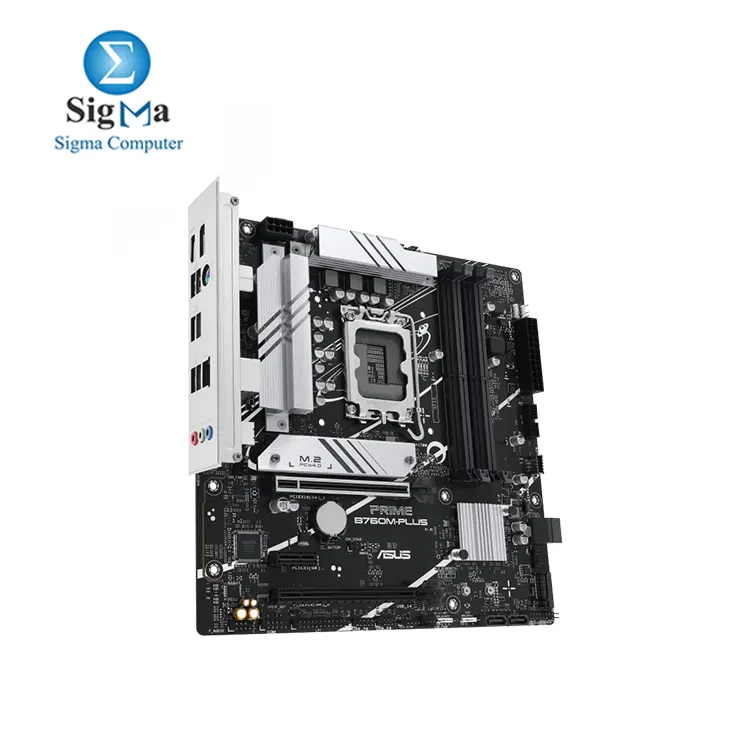

ASUS PRIME B760M-PLUS Intel® B760 (LGA 1700) micro-ATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps, front USB 5Gbps Type-C®, Aura Sync | 7000 EGP

ASUS PRIME B760M-PLUS Intel B760 LGA 1700 micro-ATX motherboard with PCIe 4.0 DDR5 two M.2 slots Realtek 2.5Gb Ethernet DisplayPort HDMI SATA 6 Gbps rear USB 10Gbps front USB 5Gbps Type-C Aura Sync

7000 LE
Availability: In Stock
shipped by (sigma)
Point: 30

Brand : ASUS brand

Model : B760M-PLUS

Seller : sigma

Viewed : 2552 items

The PRIME B760M-PLUS is a powerful micro-ATX motherboard designed for high-performance AI computing and future-ready systems. Here’s a breakdown of its key features:

Key Features:

  • Intel® LGA 1700 Socket: Supports 14th, 13th, and 12th Gen Intel® processors, ensuring compatibility with the latest CPUs.
  • Ultrafast Connectivity: Equipped with PCIe 4.0, two M.2 slots for high-speed SSDs, Realtek 2.5Gb Ethernet for fast networking, rear USB 10Gbps, and front USB 5Gbps Type-C® ports for speedy data transfers.
  • Advanced Cooling Solutions: Includes VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ for efficient and effective cooling management.
  • DDR5 Memory Support: Features ASUS Enhanced Memory Profile II and ASUS OptiMem II technologies for improved memory performance and stability.
  • Aura Sync RGB Lighting: Customizable lighting with onboard Addressable Gen 2 headers and Aura RGB header for syncing with other Aura Sync-compatible hardware.
  • Two-Way AI Noise Cancelation: Reduces background noise for clear communication during gaming or video conferences.

This motherboard is ideal for AI applications, gaming, and content creation with its modern features and reliable performance.

Here's the technical overview of the PRIME B760M-PLUS motherboard, detailing its specifications and features:

Model & News:

  • Model: PRIME B760M-PLUS
  • Update (2024/08/12): New BIOS update available with Intel microcode (0x129), enhancing stability for Intel Core 13th and 14th Gen processors.

CPU Support:

  • Socket: Intel® LGA 1700
  • Compatible Processors: Intel® Core™ 14th, 13th, and 12th Gen, Pentium® Gold, and Celeron® processors.
  • Turbo Boost Support: Intel® Turbo Boost Technology 2.0 & Max Technology 3.0 (depending on the CPU).

Chipset:

  • Intel® B760 Chipset

Memory:

  • Memory Slots: 4 x DIMM, max 192GB, DDR5
  • Supported Speeds (OC): 7200+(OC) to 4800
  • Memory Technology: Dual-channel, Intel® XMP, ASUS AEMP II.

Graphics:

  • Ports:
    • 1 x DisplayPort (supports 4K@60Hz, DP 1.4)
    • 1 x HDMI™ (supports 4K@60Hz, HDMI 2.1)

Expansion Slots:

  • Intel® Core™ Processors:
    • 1 x PCIe 4.0 x16
  • Intel® B760 Chipset:
    • 1 x PCIe 4.0 x16 (x4 mode)
    • 1 x PCIe 4.0 x1

Storage:

  • M.2 Slots: 2 x M.2 (PCIe 4.0 x4)
  • SATA Ports: 4 x SATA 6Gb/s

Ethernet:

  • Realtek 2.5Gb Ethernet

USB Ports:

  • Rear USB: 6 ports (2 x USB 10Gbps, 4 x USB 2.0)
  • Front USB: 8 ports (1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header, 3 x USB 2.0 headers)

Audio:

  • Codec: Realtek 7.1 Surround Sound, supports 24-Bit/192 kHz playback.

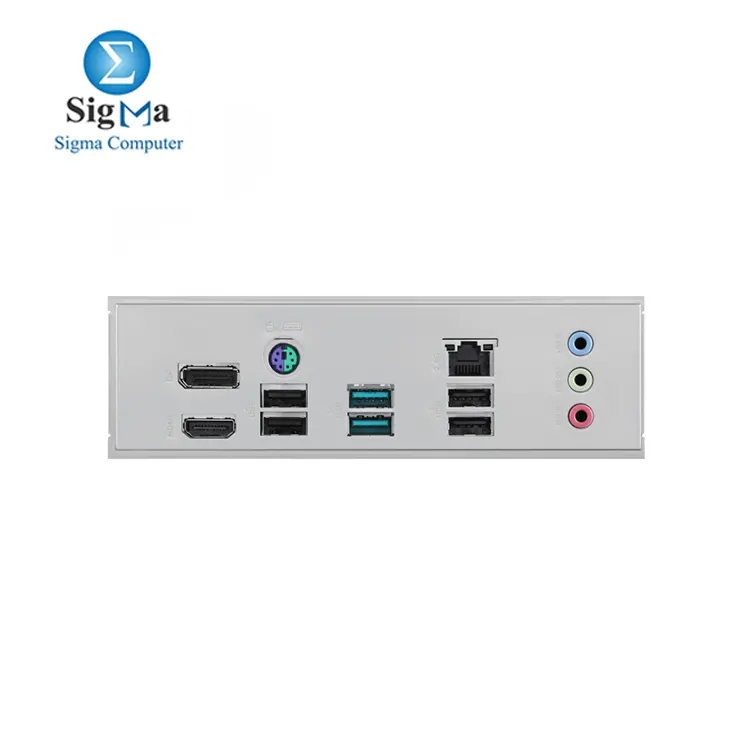

Back Panel I/O:

  • 2 x USB 10Gbps (Type-A), 4 x USB 2.0 (Type-A)
  • 1 x DisplayPort, 1 x HDMI™
  • 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port

Special Features:

  • AI Features: Two-Way AI Noise Cancelation, AI Suite 3.
  • Cooling: M.2 heatsink, VRM heatsink, Fan Xpert 2+.
  • RGB Lighting: Aura Sync, Aura RGB header, Addressable Gen 2 headers.

Software:

  • ASUS Exclusive Software: Armoury Crate, Fan Xpert 2+, AURA Sync, AI Suite 3, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial).
  • BIOS: 128 Mb Flash ROM, UEFI AMI BIOS.

Form Factor:

  • Size: micro-ATX, 9.6 x 9.6 inches (24.4 cm x 24.4 cm).

This motherboard is optimized for gaming, AI computing, and high-performance tasks, offering fast connectivity, solid cooling solutions, and RGB customization options for a complete, efficient system setup.
