ASUS H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Arua Sync | 4700 EGP

ASUS H610 LGA 1700 mic-ATX motherboard with DDR4 PCIe 4.0 dual M.2 slots Intel 1 Gb Ethernet WIFI 5 DisplayPort HDMI D-Sub USB 3.2 Gen 2 ports SATA 6 Gbps Addressable Gen 2 headers and Arua Sync

4700 LE
Availability: In Stock only 1 item left
shipped by (sigma)
Point: 20

Brand : ASUS brand

Model : H610

Seller : sigma

Viewed : 1577 items

  1. Processor Compatibility:

    • Supports Intel® 12th and 13th Gen CPUs (LGA 1700 socket).
    • Ideal for daily tasks and gamers not focusing on overclocking.
  2. RAM:

    • Supports DDR4 up to 3200MHz, providing solid performance without needing DDR5.
  3. Expansion:

    • PCIe 4.0 slot for a fast GPU connection, ensuring great performance for mid-tier graphics cards.
    • Dual M.2 slots, one likely supporting PCIe 4.0 speeds, great for NVMe SSDs.
  4. Networking & Connectivity:

    • Intel® 1 Gb Ethernet for reliable wired connections.
    • Wi-Fi 5 included, good for most home network setups.
    • Plenty of USB 3.2 Gen 2 ports for fast data transfer.
  5. Video Outputs:

    • DisplayPort, HDMI®, and D-Sub ports—useful for multi-monitor setups or older screens.
  6. Storage & Customization:

    • SATA 6 Gbps for additional SSDs or HDDs.
    • Addressable Gen 2 headers and Aura Sync support, perfect if you want RGB customization.

This motherboard offers an excellent mix of features and performance for budget builders, content creators, and casual gamers.





CPU & Chipset

  • Socket: LGA1700
  • Supports: 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.
  • Chipset: Intel® H610
  • Turbo Boost: Supports Intel® Turbo Boost 2.0 and 3.0 technologies (depending on CPU).

Memory

  • 2 x DIMM slots: Supports up to 64GB DDR4 (non-ECC, un-buffered).
  • Speeds up to 3200 MHz (XMP supported).

Graphics & Display Outputs

  • DisplayPort 1.4: Up to 4K @ 60Hz.
  • HDMI 2.1: Up to 4K @ 60Hz.
  • D-Sub port for legacy displays.

Expansion Slots

  • 1 x PCIe 4.0 x16 for GPUs (supports new-gen cards).
  • 1 x PCIe 3.0 x1 slot for smaller add-ons.

Storage

  • 2 x M.2 slots:
    • M.2_1: PCIe 3.0 x4
    • M.2_2: PCIe 3.0 x2
  • 4 x SATA 6Gbps ports for SSDs and HDDs.

Networking & Wireless

  • Intel® 1 Gb Ethernet
  • Wi-Fi 5 (802.11 a/b/g/n/ac) supporting 2.4/5GHz bands
  • Bluetooth 5.0

USB Ports

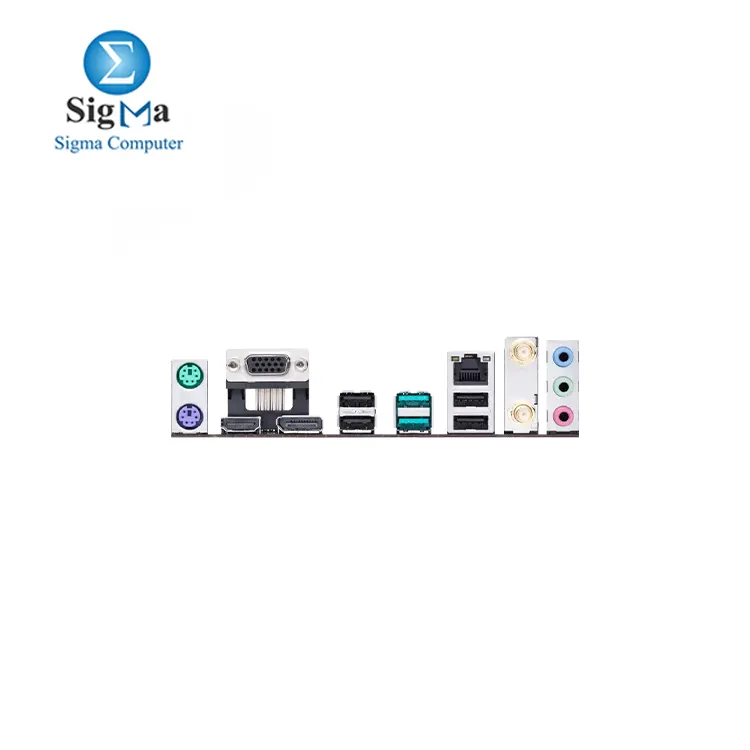

  • Rear I/O:
    • 2 x USB 3.2 Gen 2 Type-A
    • 4 x USB 2.0 Type-A
  • Front:
    • 1 x USB 3.2 Gen 1 header (for 2 more USB 3.2 Gen 1 ports)
    • 2 x USB 2.0 headers (for 3 additional USB 2.0 ports)

Audio

  • Realtek 7.1 Surround Sound with high-definition audio codec.
  • Supports 24-bit/192 kHz playback with premium audio shielding.

RGB & Customization

  • 3 Addressable Gen 2 headers
  • 2 AURA RGB headers
  • Supports AURA Sync for lighting customization.

Cooling & Power

  • 1 x 4-pin CPU fan header
  • 2 x 4-pin chassis fan headers
  • 8-pin +12V power connector and 24-pin main power connector.

BIOS & Special Features

  • 128 Mb UEFI BIOS with ASUS EZ Flash 3 and CrashFree BIOS 3.
  • ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, etc.)
  • Pre-installed software includes Armoury Crate, AI Suite 3, and MyASUS.

Accessories & Compatibility

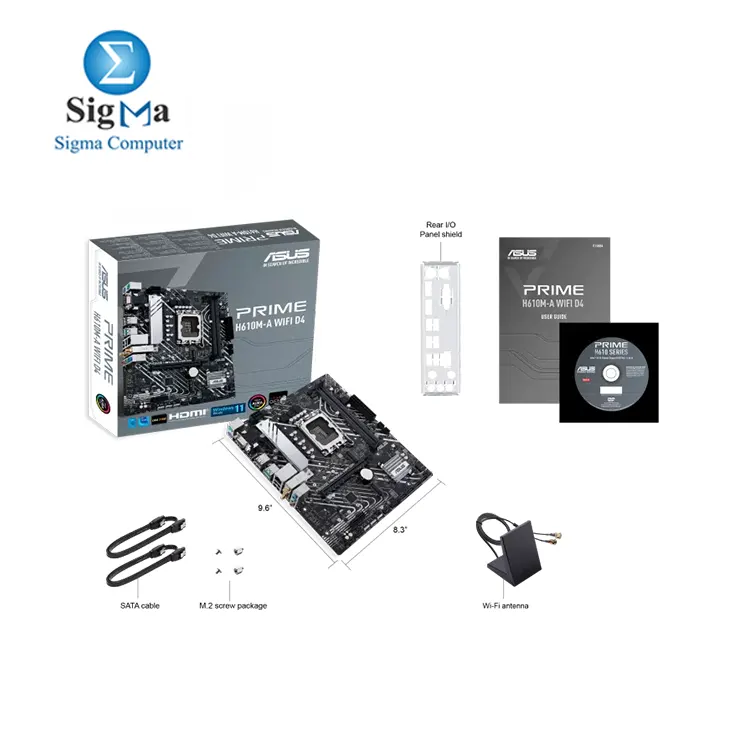

  • Includes:
    • 2 SATA cables, Wi-Fi antenna, M.2 screws, and I/O shield.
  • Operating System: Compatible with Windows® 11 and Windows® 10 (64-bit).

Form Factor

  • mATX (9.6" x 8.3" / 24.4 cm x 21.1 cm).
