ASUS ROG Strix B650-A Gaming WiFi 6E AM5 (LGA1718) Ryzen 7000 Motherboard(12+2 Power Stages,DDR5,3xM.2 Slots,PCIe® 4.0, 2.5G LAN,WiFi 6E,USB 3.2 Gen 2x2 Type-C® Port) | 12999 EGP

ASUS ROG Strix B650-A Gaming WiFi 6E AM5 LGA1718 Ryzen 7000 Motherboard 12 2 Power Stages DDR5 3xM.2 Slots PCIe 4.0 2.5G LAN WiFi 6E USB 3.2 Gen 2x2 Type-C Port

12999 LE
shipped by (sigma)
Point: 30

Brand : ASUS brand

Model : B650

Seller : sigma

Viewed : 566 items

ROG Strix B650-A Gaming WiFi – Key Features Summary

  • Performance: Optimized power delivery for AMD Ryzen™ 7000 Series CPUs.
  • Cooling: Thick metal heatsinks on a sleek black PCB for efficient thermal management.
  • Storage: PCIe 5.0 M.2 slot for ultra-fast storage speeds.
  • Memory: Supports the latest DDR5 RAM for higher performance.
  • Networking: Integrated WiFi 6E for fast, low-latency wireless connectivity.
  • Target Audience: Ideal for gamers, AI-based applications, and enthusiasts seeking future-proof technology.




CPU & Chipset

  • Socket: AM5
  • Supported CPUs: AMD Ryzen™ 7000/8000/9000 Series
  • Chipset: AMD B650

Memory

  • Slots: 4 x DIMM, dual-channel
  • Max Capacity: 192GB DDR5
  • Speeds: Up to DDR5-7600+ (OC)
  • Support: ECC & Non-ECC, AMD EXPO™, OptiMem II

Graphics Output

  • DisplayPort 1.4: 8K @ 60Hz
  • HDMI 2.1: 4K @ 60Hz

Expansion Slots

  • PCIe 4.0 x16: Varies by CPU
    • Ryzen 9000/7000: 1 x PCIe 4.0 x16
    • Ryzen 8000: 1 x PCIe 4.0 (x8/x4 mode)
  • Additional PCIe: 2 x PCIe 4.0 x1 slots

Storage

  • M.2 Slots:
    • M.2_1: PCIe 5.0 x4 (for Ryzen 7000/9000)
    • M.2_2: PCIe 4.0 x4
    • M.2_3: PCIe 4.0 x4 (shares bandwidth with PCIe slot)
  • SATA Ports: 4 x SATA 6Gb/s
  • RAID Support: NVMe & SATA RAID 0/1/10

Networking

  • Ethernet: Intel® 2.5Gb LAN + ASUS LANGuard
  • Wi-Fi: Wi-Fi 6E (2x2) with Bluetooth 5.2

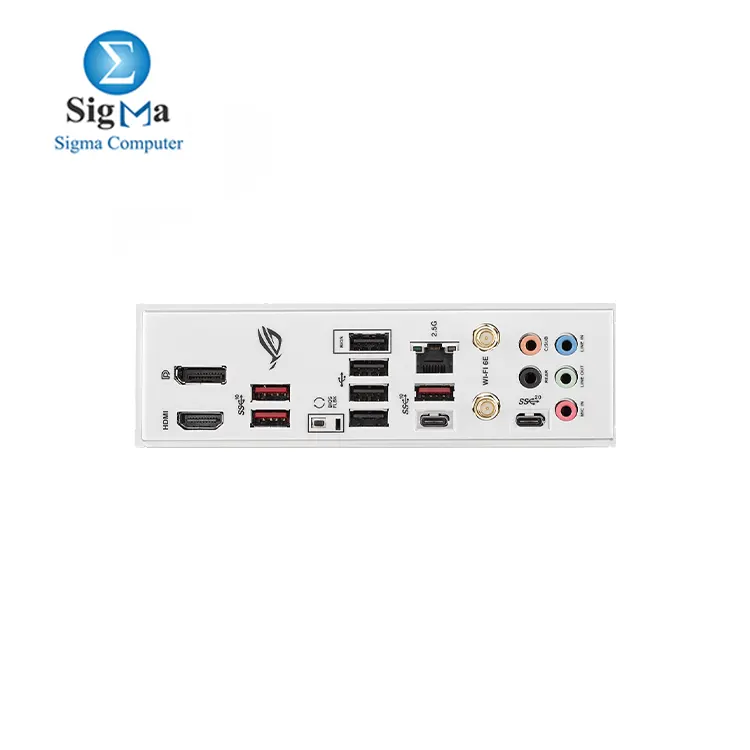

USB Ports

  • Rear I/O (9 ports):
    • 1 x USB 3.2 Gen 2x2 (Type-C®)
    • 4 x USB 3.2 Gen 2 (3 x Type-A + 1 x Type-C®)
    • 4 x USB 2.0 (Type-A)
  • Front I/O (7 ports):
    • 1 x USB 3.2 Gen 2 header (Type-C®)
    • 1 x USB 3.2 Gen 1 header (for 2 ports)
    • 2 x USB 2.0 headers (for 4 ports)

Audio

  • Codec: ROG SupremeFX ALC4080
  • Channels: 7.1 Surround Sound
  • SNR: 120 dB playback / 113 dB recording
  • Extras: Impedance sensing, Savitech AMP, premium capacitors

Cooling & Power

  • Fan Headers:
    • 1 x CPU, 1 x CPU OPT, 1 x AIO pump, 4 x chassis fans
  • Power Connectors:
    • 1 x 24-pin ATX, 1 x 8-pin +12V, 1 x 4-pin +12V

Internal I/O & RGB

  • M.2 Q-Latch & PCIe Slot Q-Release
  • Addressable Gen 2 & AURA RGB headers

Software & BIOS

  • Software: Armoury Crate, GameFirst VI, Sonic Studio, AI Suite 3
  • BIOS: 256Mb UEFI AMI BIOS, BIOS FlashBack™, ASUS EZ Flash

Form Factor

  • Size: ATX (30.5 cm x 24.4 cm)



CategoryDesktop
SubcategoryMotherboard
BrandASUS
ModelB650
